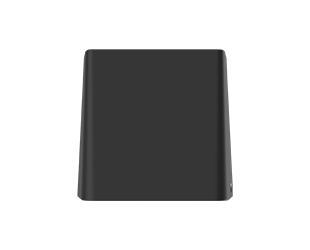

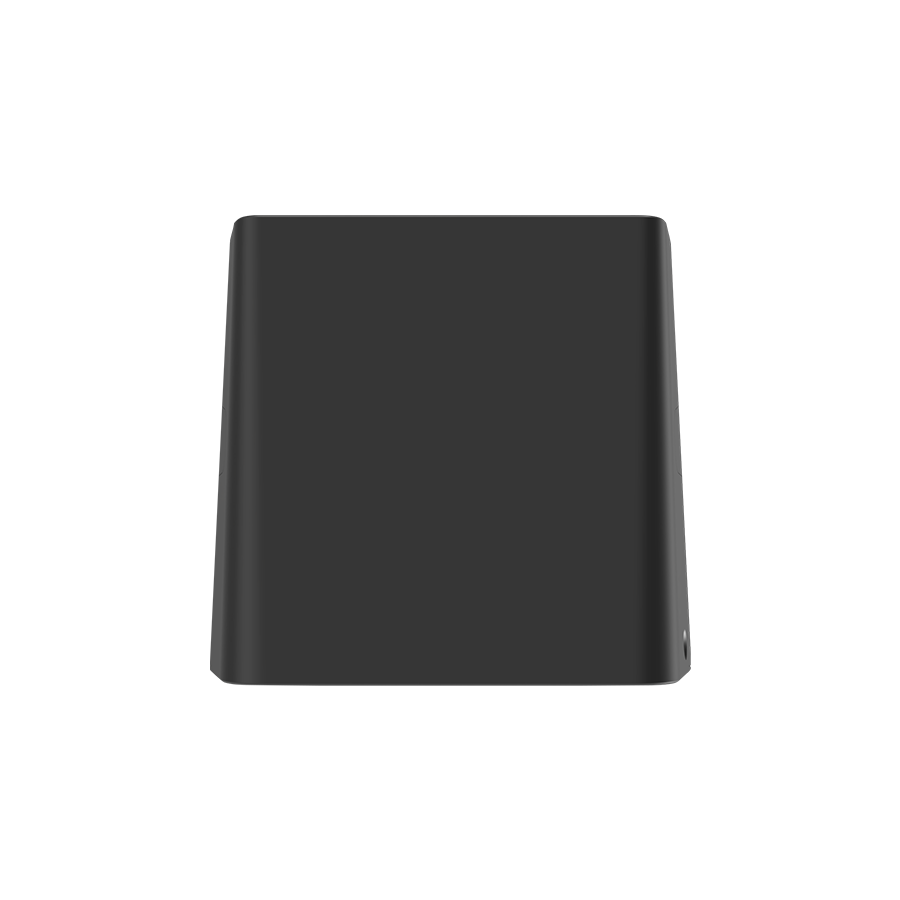

SLIMSY/LC

18W 3000K

100,000-Hour LED lifespan

0-10V dimming standard

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	18/28/38W
Color Temp	3000K
Lumens	2375-4837 lm
Efficacy	119.2-140.2 lm/W
Color Accuracy	81-82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.15A/0.23A/0.31A
208V	0.10A/0.15A/0.18A
240V	0.09A/0.13A/0.16A
277V	0.08A/0.11A/0.14A
Input Watts	18.4-37.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

38W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.31A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
28W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.23A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
18W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Photocell

120-277V selectable photocell that can be turned on and off.

Aux Power Supply

Yes

Dim to Off

Yes

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Lens

Tempered glass

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

ADA Compliant

Meets ADA Requirements for wall-mounted luminaires.

IP Rating

Ingress protection rating of IP65 for dust and water

Dark Sky Approved

Conforms to the requirements listed by the International Dark-Sky Association for "Dark Sky" approval. The Fixture Seal of Approval provides objective, third-party certification for luminaries that minimize glare, reduce light trespass, and don't pollute the night sky.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LUNA

This product has received the Design Lights Consortium's LUNA listing. Designed to meet LUNA 5.1 requirements.
LUNA Product Code: S-862JF2

Installation

Mounting

Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
