SM9S20930UNVW

Spec Sheet IES File Downlight Accessory Compatibility List Compatibility List Photometrics Report Energy Star Instructions Spec Sheet EZ Layout

DISCONTINUED

SM9S20930UNVW

View Technical Specs

Performance

Watts	20W
Color Temp	3000K (Warm)
Lumens	1,304 lm
Efficacy	60
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.163A
208V	0.11A
240V	0.095A
277V	0.08A
Input Watts	20W

EZ-Layout

Create Custom Lighting Layout

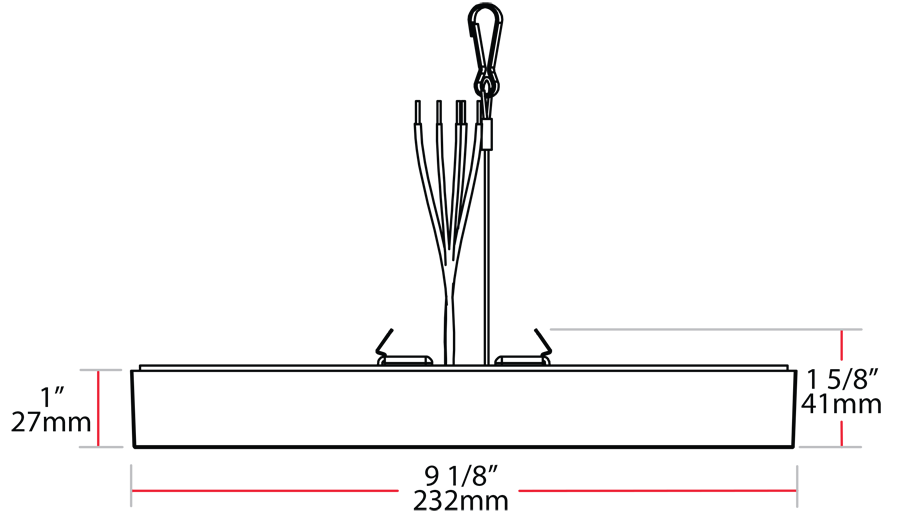

Dimensions

Weight: 2.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLS0047

California Title 24

Can be used to conform with the requirements of California Title 24 Part 6.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Power Factor

≥0.9

Input Voltage

120V

Operating Frequency (Hz)

60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

100W Incandescent

Construction

IC Rated

Suitable for direct contact with insulation

Air Tight

Housing certified Air Tight as per ASTM E283

Housing

Constructed from durable aluminum that provides thermal cooling. Housing frame built from non-electrically conductive polycarbonate.

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Diffuse Polystyrene lens produces smooth uniform light that is glare free

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Matte White

LED Characteristics

Beam Angle

120°

LEDs

Long-life, high-efficacy, surface-mount LEDs

R9 Value

High color performance with R9 greater than or equal to 50

Flicker

Silent and flicker free operations of less than 30%

Installation

Mounting

Torsion springs allow for secure installation

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
