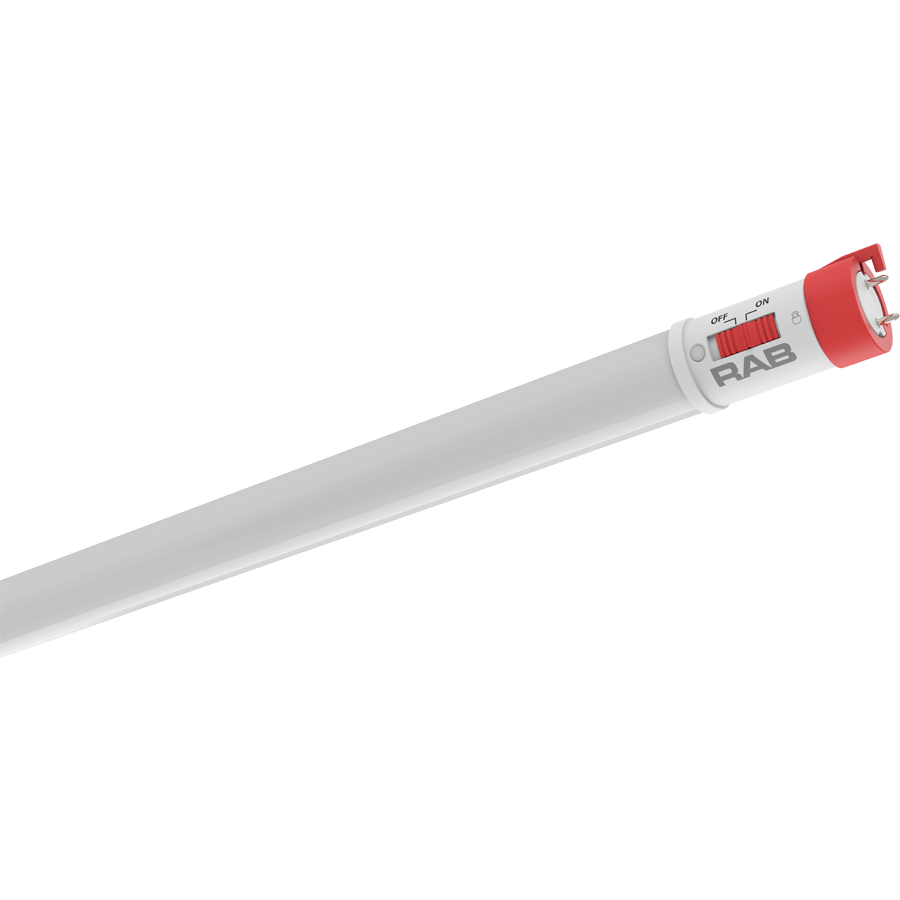

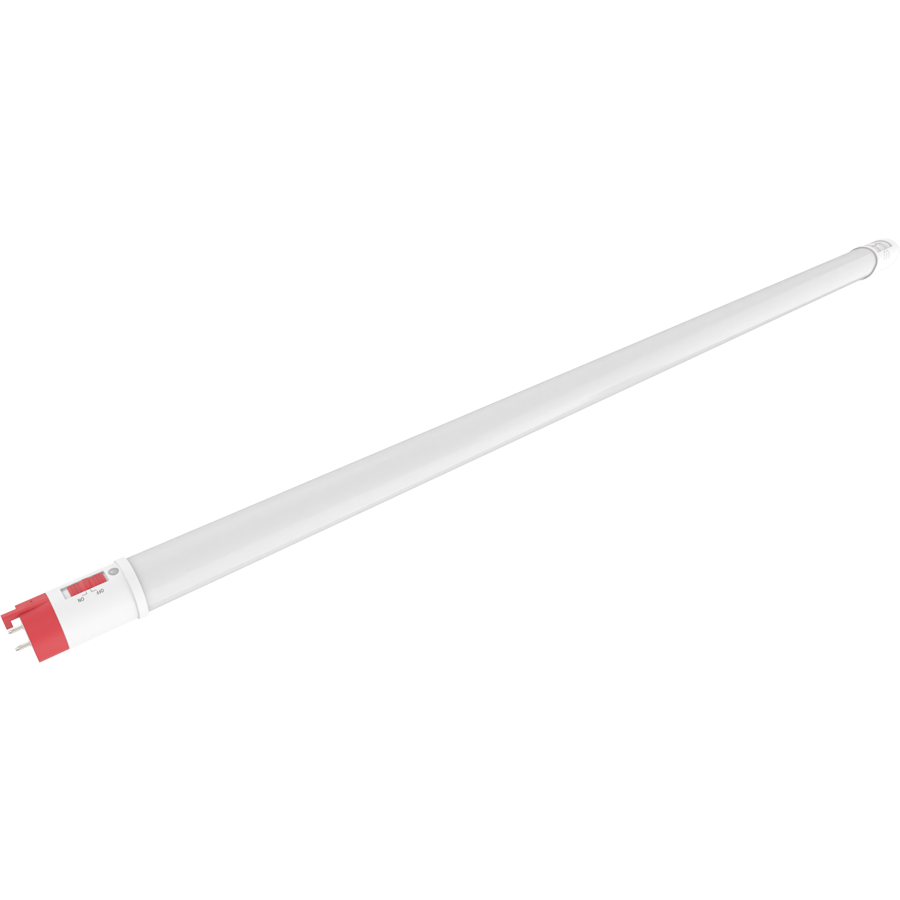

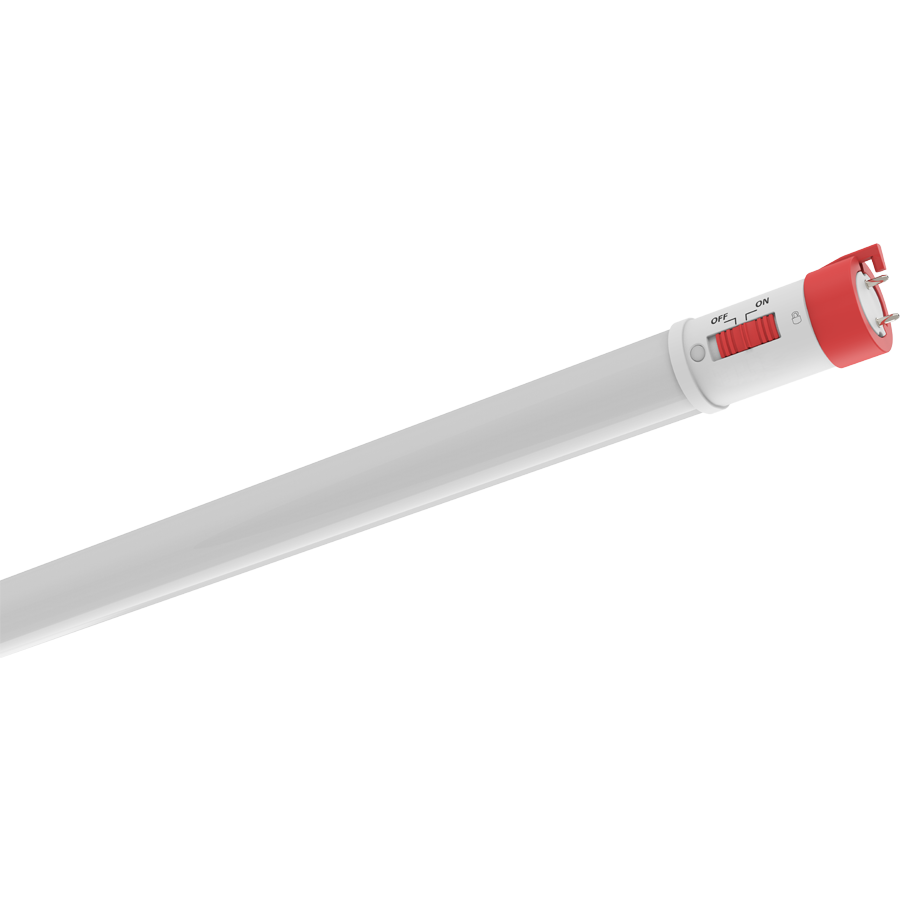

T10EM-36
- Replace traditional fluorescent linear tubes
- Built-in lithium batteries for emergency lighting
- Provides 90 minutes of light at 400 lumens under emergency use
- Reduces maintenance and replacement costs with longer lifespan
- Includes tombstones and test button
Performance
| Watts | 9/8/07W |
| Color Temp | 3000/3500/4000/5000/6500K |
| Lumens | 1,125-1,620 lm |
| Efficacy | 124-135 lm/W |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
T10 Linear Emergency
Wattage Equivalency
24W Fluorescent
Input Wattage
12/10.5/9W; 9W default
Lumens (Nominal)
9W:
1125lm @ 3000K;
1200lm @ 3500K;
1230lm @ 4000K;
1230lm @ 5000K;
1200lm @ 6500K
10.5W:
1300lm @ 3000K;
1350lm @ 3500K;
1400lm @ 4000K;
1400lm @ 5000K;
1350lm @ 6500K
12W:
1500lm @ 3000K;
1560lm @ 3500K;
1620lm @4000K;
1620lm @ 5000K;
1560lm @ 6500K
1125lm @ 3000K;
1200lm @ 3500K;
1230lm @ 4000K;
1230lm @ 5000K;
1200lm @ 6500K
10.5W:
1300lm @ 3000K;
1350lm @ 3500K;
1400lm @ 4000K;
1400lm @ 5000K;
1350lm @ 6500K
12W:
1500lm @ 3000K;
1560lm @ 3500K;
1620lm @4000K;
1620lm @ 5000K;
1560lm @ 6500K
Efficacy
9W: 125lm/W @ 3000K; 133lm/W @ 3500K; 137lm/W @ 4000K; 137lm/W @ 5000K; 133lm/W @ 6500K
10.5W: 124lm/W @ 3000K; 129lm/W @ 3500K; 133lm/W @ 4000K; 133lm/W @ 5000K; 129lm/W @ 6500K
12W: 125lm/W @ 3000K; 130lm/W @ 3500K; 135lm/W @ 4000K; 135lm/W @ 5000K; 130lm/W @ 6500K
10.5W: 124lm/W @ 3000K; 129lm/W @ 3500K; 133lm/W @ 4000K; 133lm/W @ 5000K; 129lm/W @ 6500K
12W: 125lm/W @ 3000K; 130lm/W @ 3500K; 135lm/W @ 4000K; 135lm/W @ 5000K; 130lm/W @ 6500K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Description
Description
UL 924-certified Type B T8 tube with field-adjustable power and color temperature. Ideal for general purpose lighting and as a battery-powered backup LED solution.
Electrical
Driver
Constant Current 120-277V 50/60 Hz; 120V: 100mA; 208V: 58mA; 240V: 50mA; 277V: 43mA
THD
<20%
Power Factor
0.8
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
50%
Emergency Fixture Use
Yes, meets UL924
Emergency Test Button
Included as accessory
Battery Type
Lithium
Emergency Operation
90 minutes
Emergency Lumens
500lm @ 4000K
LED Characteristics
Beam Angle
140°
Color Temperature
Default: 4000K
Field adjustable via dip switch 3000/3500/4000/5000/6500K
Field adjustable via dip switch 3000/3500/4000/5000/6500K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step (3500/4000/5000K); <5-step (3000/6500K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Base Type
G13
Construction
Length
3 ft
Shape
T10 Linear
Finish
White
Endcap Material
Copper
Enclosure Material
Polycarbonate
Lens Finish
Frosted
Compliance
Listings
UL Recognized, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Certification Model Number
T10308(T10EM-36)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
