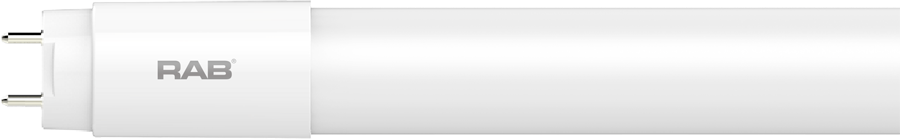

T8-14-48GC-850-DIR
T8-14-48GC-850-DIR
- Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- Easy to install plug and play that requires no rewiring, no tools, no instructions
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Compatible with most instant start electronic T8 ballasts, Please check Compatibility List
- Approximately 40% more efficient than fluorescent T8 lamps
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Compatible with RAB specified 0-10V dimming system
Performance
| Watts | 14W |
| Color Temp | 5000K (Daylight) |
| Lumens | 2,200 lm |
| Efficacy | 157.1 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Ballast Dependent |
| Power Factor | Ballast Dependent |
| Flicker | Ballast Dependent |
| THDi | N/A |

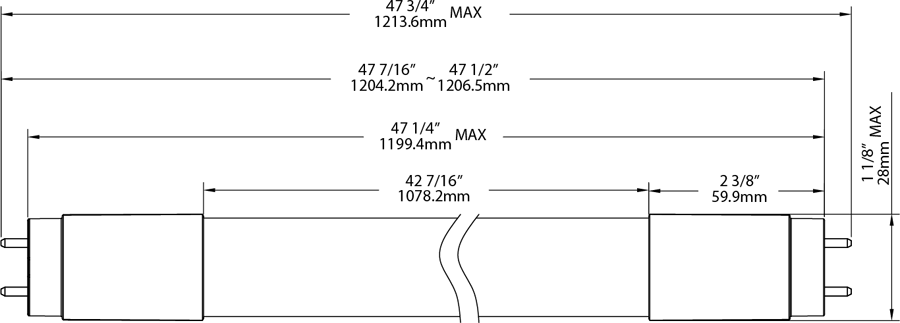

Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
14W
Lumens
2,200lm
Efficacy
157lm/W
L70 Lifespan
50,000 Hours
Wattage Equivalency
32W Fluorescent
Construction
Material
Coated Glass
Shape
T8
Nominal Length
4 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Beam Angle
180°
Installation
Base Type
G13
Installation Type
Type A, Plug and Play
Electrical
THD
≤25%
Power Factor
Ballast Dependent
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimming
Yes with 0-10V dimmer + ballast. See Dimmer Compatibility List.
Input Voltage
Ballast Dependent
Operating Frequency
Ballast Dependent
Input Current @ 120V
Ballast Dependent
Input Current @ 277V
Ballast Dependent
Flicker
Ballast Dependent
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number
T10018
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
