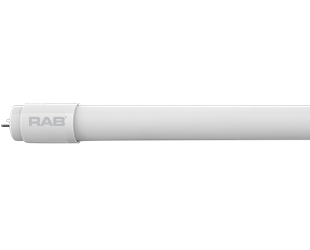

T8-17.5-48G-830-SD-BYP

Spec Sheet IES File LM79 Instructions FCC Caution Family Spec Sheet Spec Sheet EZ Layout

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single ended and double ended wiring method

Works with non-shunted sockets and shunted sockets.

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan.

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Internal thermal fuse for added safety

View Technical Specs

View Price & Availability

Performance

Watts	17W
Color Temp	3000K
Lumens	2,300 lm
Efficacy	131
Color Accuracy	83 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	50%-70%
THDi	≤25%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

17.5W

Lumens

2,300lm

Efficacy

131lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

Certification Model Number

T10313(T8-17.5-48G-830-SD-BYP)

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PG7NBLAV

LED Characteristics

Color Temperature

3000K

Color Accuracy (CRI)

83 CRI

Beam Angle

220°

Construction

Bulb Shape

Endcap Material

Plastic

Enclosure Material

Glass

Installation

Base Type

G13

Electrical

THD

≤25%

Power Factor

>0.9

Flicker

50%-70%

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120-277V

Operating Frequency

50/60Hz

Dimming

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
