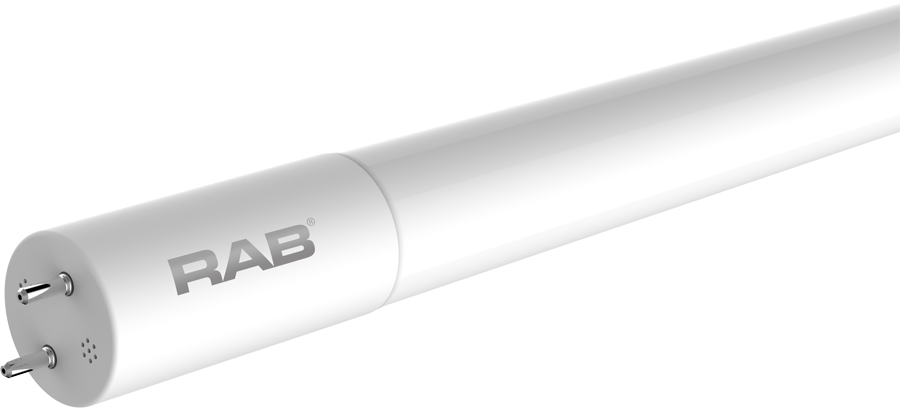

T8-9-24G-840-SD-BYP

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single ended and double ended wiring method

Works with non-shunted sockets and shunted sockets.

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan.

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Internal thermal fuse for added safety

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	4000K (Cool White)
Lumens	1,150 lm
Efficacy	127.8 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277
Power Factor	0.9
Flicker	N/A
THDi	N/A

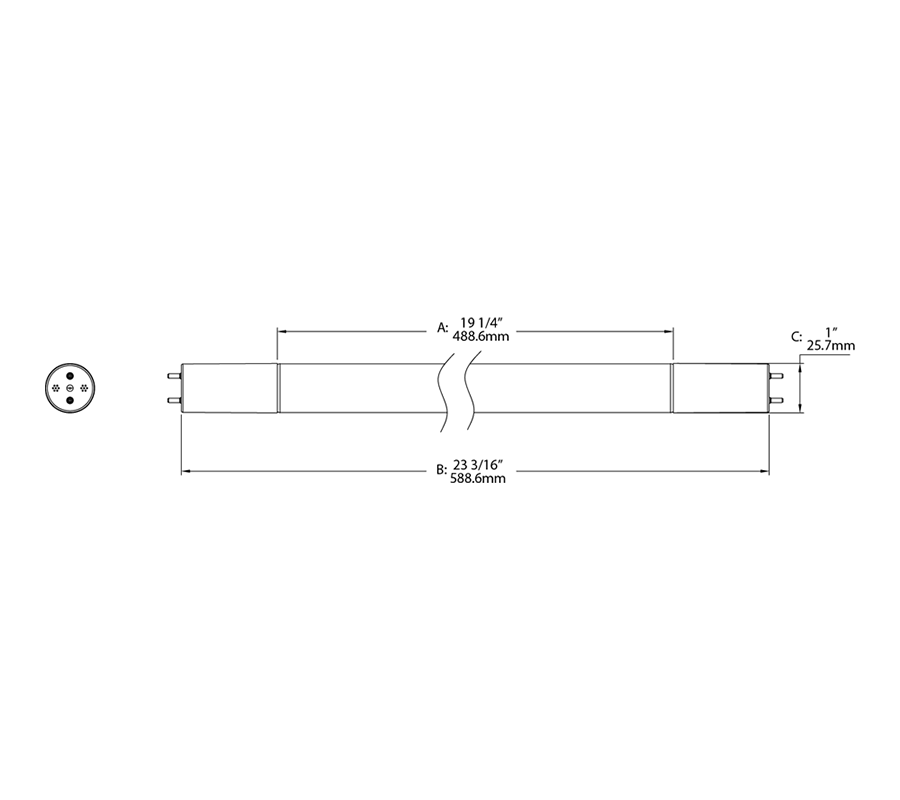

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

Lumens

1,150lm

Efficacy

128lm/W

L70 Lifespan

50,000 Hours

Wattage Equivalency

17W Fluorescent

Construction

Material

Glass

Bulb Shape

Nominal Length

2 ft

Finish

Frosted

Base Type

G13

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

4000K Cool White

Color Accuracy (CRI)

82 CRI

Electrical

THD

<20%

Power Factor

0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimming

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Installation

Installation Type

Type B, Single or Double Ended wiring

Compliance

UL Recognized

Yes

UL Classified

Yes

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Certification Model Number

T8-9-24G-840-SD-BYP

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PROTUT1T

Optical

Beam Angle

210°
