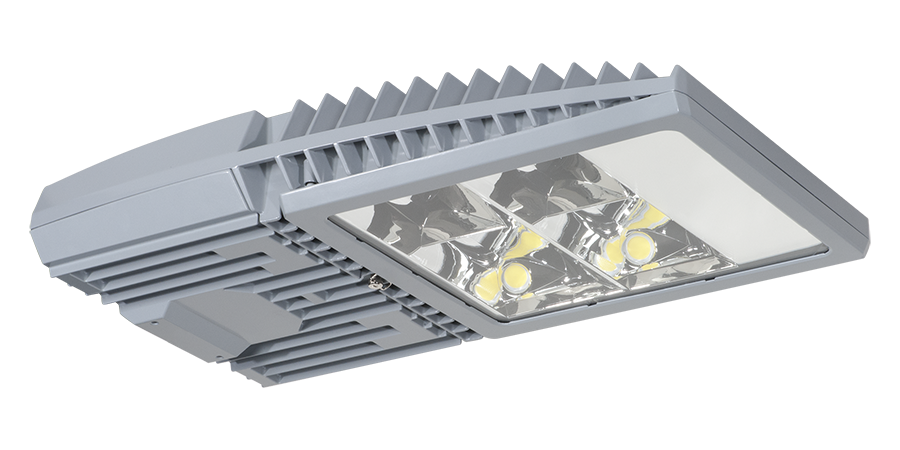

TBLED2T240YRG/D10/7PR
TBLED2T240YRG/D10/7PR
- IP66 Rated
- Industry-leading 5G vibration rating per ANSI C136.31
- 100,000-Hour LED lifespan
- 10-Year, limited warranty
Performance
| Watts | 240W |
| Color Temp | 3000K (Warm) |
| Lumens | 27,220 lm |
| Efficacy | 116.2 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.85A |
| 208V | 1.17A |
| 240V | 0.86A |
| 277V | 0.86A |
| Input Watts | 234.3W |
Dimensions
Weight: 39.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 2.85A, 1.175A, 240V: 1.019A, 277V: 0.86A
THD
6% at 120V, 6.1% at 277V
Power Factor
99.7% at 120V, 96.7% at 277V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle
