TICHYY

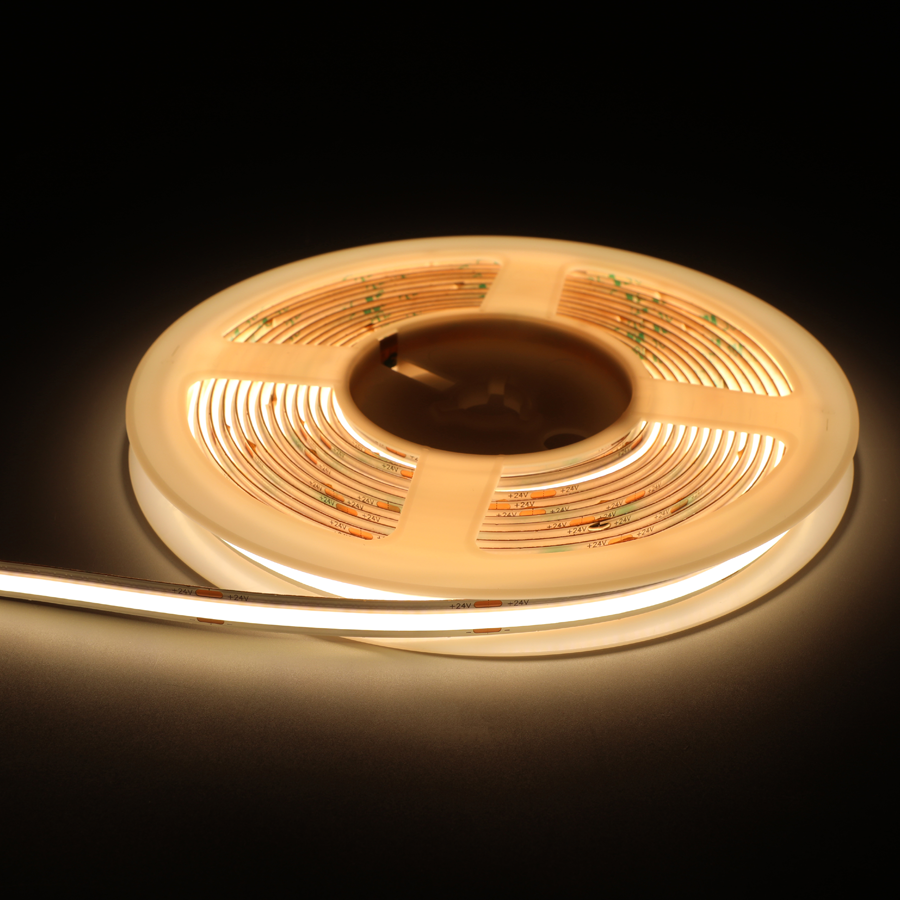

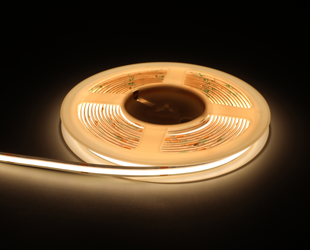

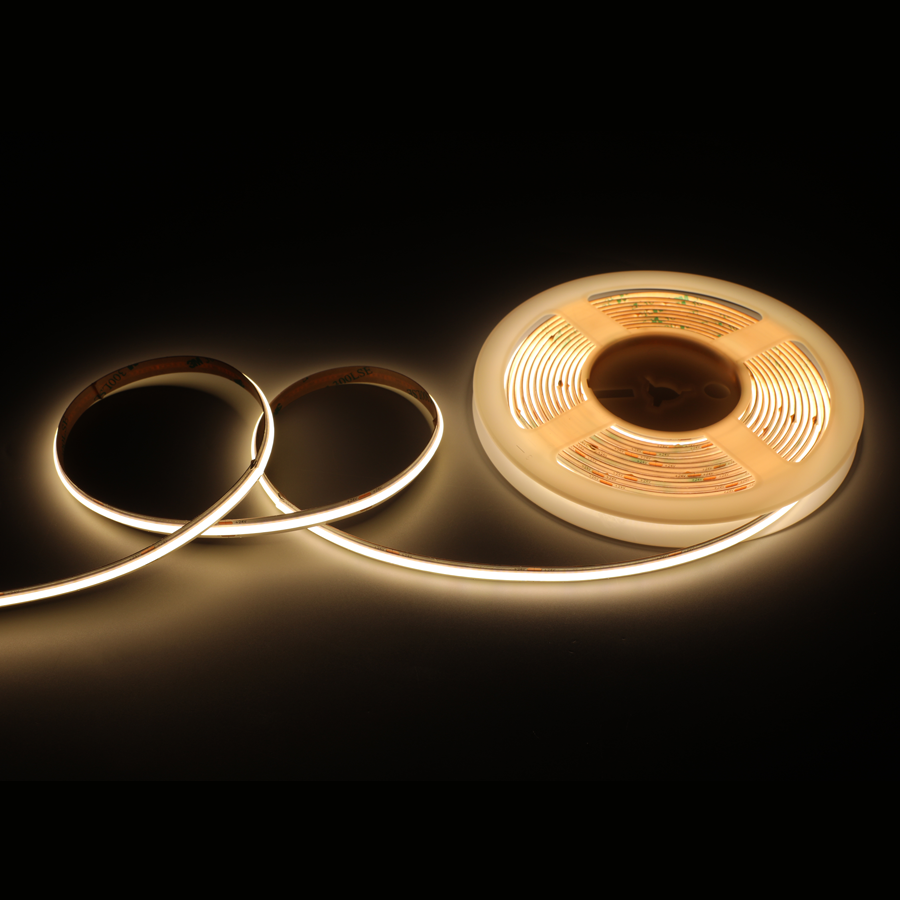

Continuous band of flawless light output with no pixelated hot spots - even without a lens

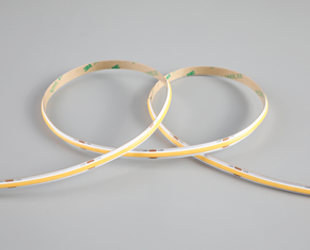

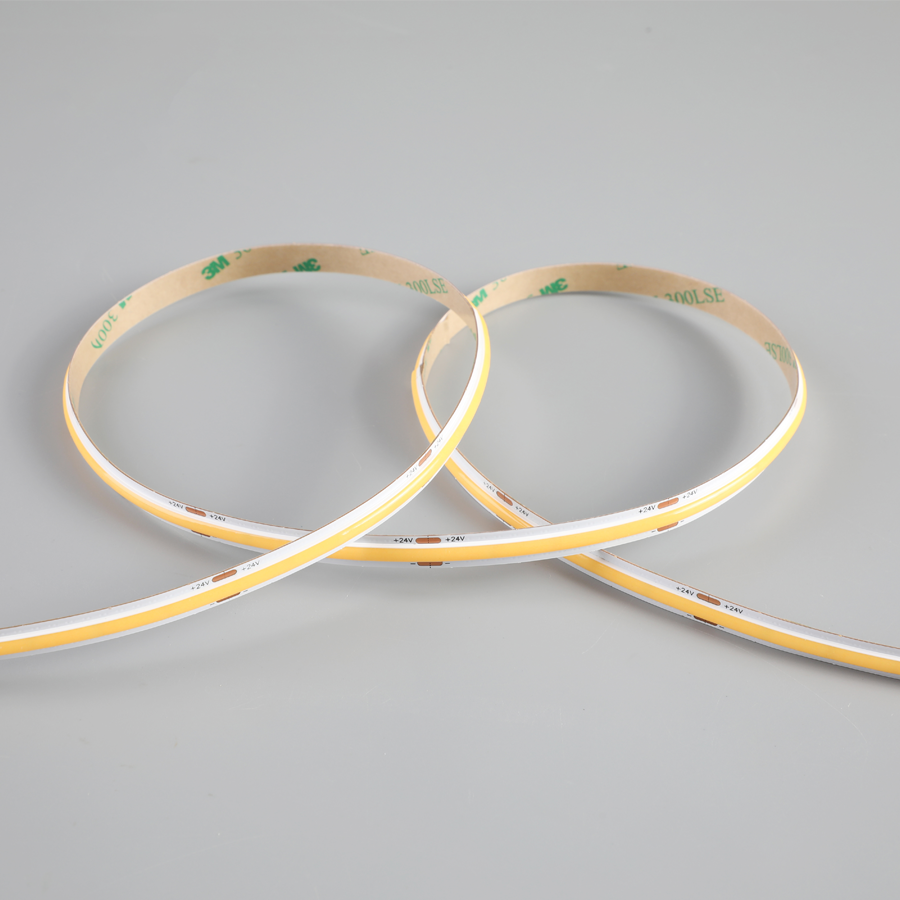

Easy installation to most surfaces by using pre-attached 3M® double-sided tape

Available in Static White 2700K, 3000K, 4000K, or Dim-to-Warm (3000-1800K)

60W & 96W Indoor or outdoor rated drivers available (sold separately)

50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	4.6W/ftW
Color Temp
Lumens	377lm/ft lm
Efficacy	81
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Voltage
120V
208V
240V
277V
Input Watts	4.6 W/ftW

EZ-Layout

Create Custom Lighting Layout

Technical Specifications

Performance

Product Type

16 ft No-Pixel COB tape static white - Damp rated

Description

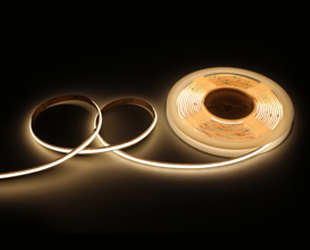

ARCTAPE is a flexible COB tape with a continuous band of flawless light output with no pixelated hot spots - even without a lens.

Input Wattage

4.6W/ft

Lumens/Foot

377 lm/ft

Efficacy

81lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Storage Temperature

-4°F (-20°C) to 140°F(60°C)

Flicker

Flicker Free - Pst LM<1, SVM<0.4, Percent Flicker≤5%@≤200Hz

LED Characteristics

Beam Angle

150°

Color Temperature

2700K

Color Accuracy (CRI)

90 CRI

Color Changing

R9 Value

High color performance with R9 greater than 50

Color Consistency

<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

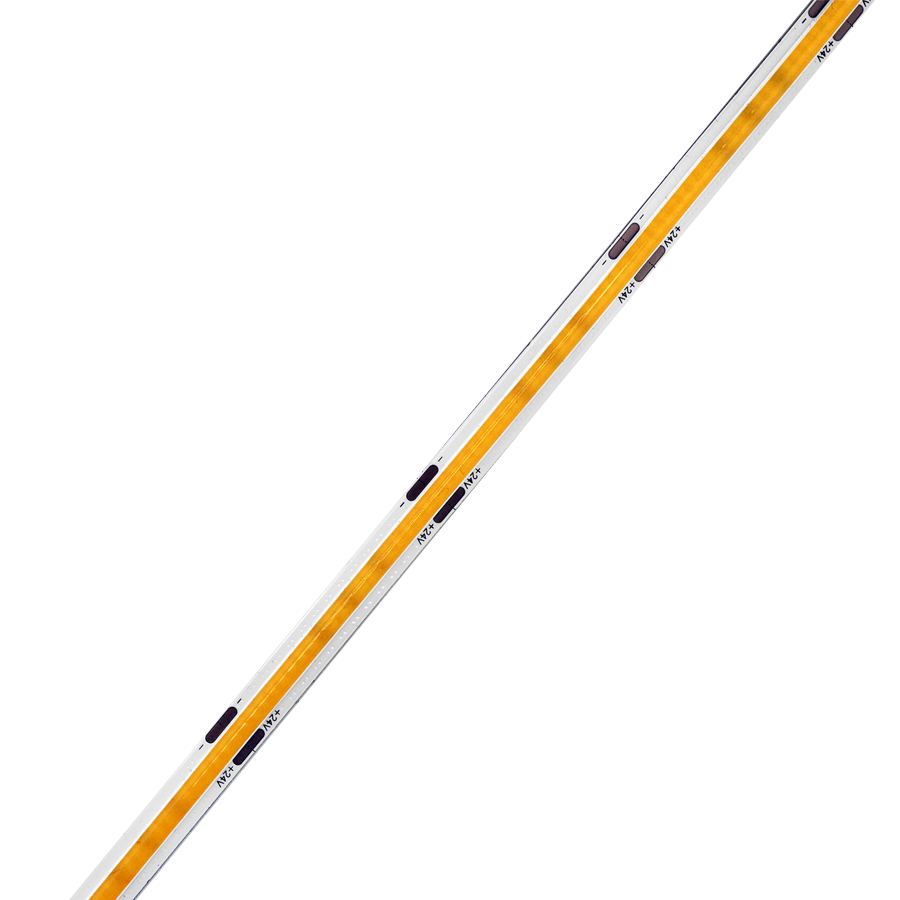

Field Cuttable Increment

Cuttable every 2"

LED Segments per Reel

200

Installation

Mounting

3M Tape, aluminum profile

Construction

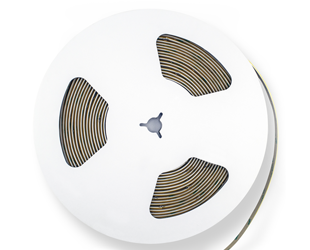

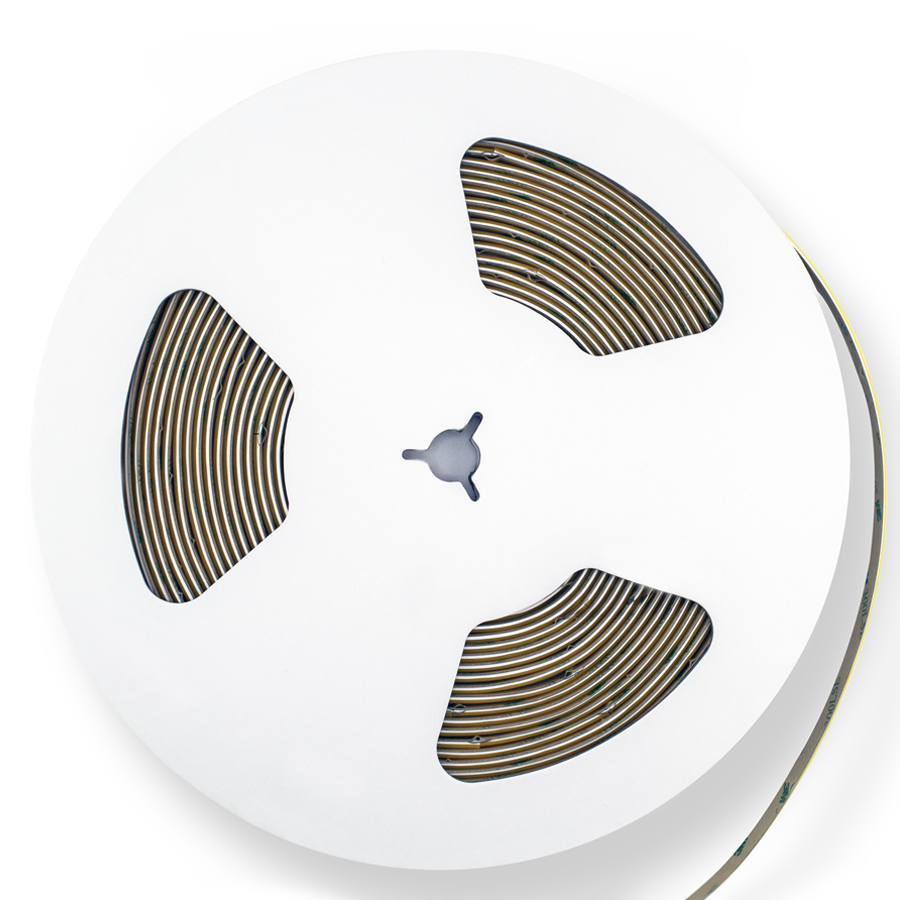

Reel Length

16 ft

Max Run Length

16 ft

PCB Width

8mm

Light Source

COB LED White

Material Construction

Super-flexible bending, ultra-thin appearance, premium wall structure, & thick copper to ensure consistancy in voltage and brightness.

Bendable

Top bend

Light Effect

Continuous band light output with no pixelated hot spots

Compliance

Listings

UL2108

Environment

Suitable for use indoors in dry and damp environments.

IP Rating

IP20

Certification Model Number

TICHYY

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

NEC Compliant

Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Other

Field Wiring Accessories

TIJ2
2-Pin indoor connector kits

TIJ2L
2-Pin indoor L-shape connector kits

Mounting Accessories

TAP12
12mm wide aluminum channel kits

TAP16TL
Trimless 16mm inner wide recessed aluminum profile

TAP16C
Corner 16mm wide aluminum profile

Compatible Drivers

TID-60
Indoor 60W driver

TID-96
Indoor 96W driver

TOD-96
Outdoor 96W driver

TID/B
J-box for TID Drivers

TOD-96x2
96Wx2 outdoor driver

TOD-96x3
96Wx3 outdoor driver

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
