TNF/RGB
TNF/RGB

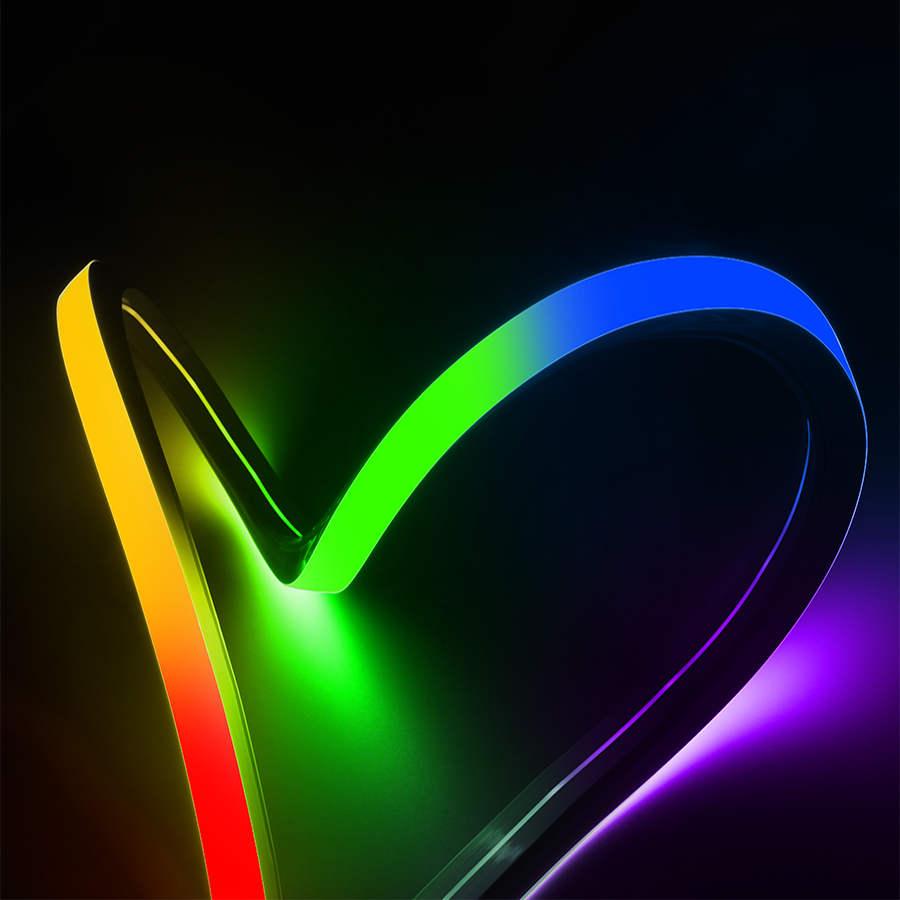

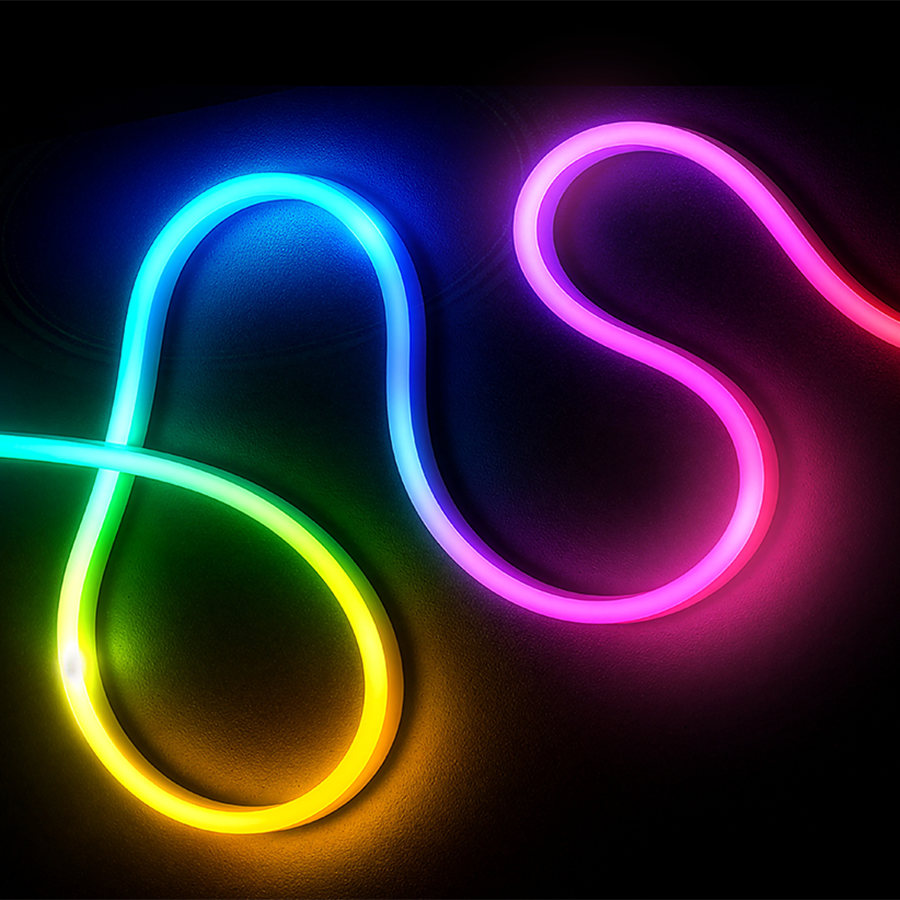

- Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally
- Field-cuttable for shorter runs with a max run of 65ft. Can be linked with connectors (sold separately)
- Easy installation with clips, fixed channel, and bendable channel (sold separately)
- Create dynamic RGB light shows with customizable effects and color sequences. Requires Lightcloud Blue controller (sold separately)
- Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 4.3W/ftW |
| Color Temp | RGBW |
| Lumens | 124lm/ft lm |
| Efficacy | |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.3W/ftW |
Dimensions
Weight: 3.5 lbs
Technical Specifications
Lightcloud
Spacing Criteria
See LCBLVD/RGB on rablighting.com
Factory Reset
See LCBLVD/RGB on rablighting.com
Performance
Product Type
Flexible Silicone Wet Rated Neon Tape Light RGBW
Description
NEOFLEX recreates the look of classic neon with smooth, dot-free illumination. Engineered for indoor and outdoor applications, it is IP67 rated for long-lasting, reliable performance.
Input Wattage
4.27 W/ft
Lumens
R: 11lm/ft
G: 43lm/ft
B: 8lm/ft
W: 33lm/ft
Mix: 94lm/ft
G: 43lm/ft
B: 8lm/ft
W: 33lm/ft
Mix: 94lm/ft
Lumens/Foot
124 lm/ft
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
Yes, using Lightcloud Blue
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
120°
Color Temperature
Default: 3000K
2200-3000K and 16+ million colors using Lightcloud Blue
2200-3000K and 16+ million colors using Lightcloud Blue
Color Accuracy (CRI)
90 CRI
Color Changing
Color Changing-2559c
R9 Value
High color performance with R9 greater than 60
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Chip Density
29 chips/ft
Pixel/Meter
8 pixels/m
LED/Pixel
12 LED/pixel
Field Cuttable Increment
Cuttable every 4.9"
Length Adjustments
Use the mobile app to adjust Minimum Segment Unit (MSU) and Maximum Segement Configuration (MSC) to ensure proper illumination. See the Lightcloud Blue Mobile App User Guide or contact RAB for more information.
Installation
Mounting
Easy installation with clips, fixed channel, and bendable channel (sold separately)
Construction
Length
16.4 ft
Max Run Length
49.2 ft
PCB Width
Width: 16mm
Height: 16mm
Height: 16mm
Light Source
COB LED White
Material Construction
Single-axis top-bend design for controlled curved installations.
Light Effect
Soft linear lighting performance
Spool Length
16.4 ft
Bendable
Top bend
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
LCBLVD/RGB
Lightcloud Blue controller for RGBW tape light
Lightcloud Blue controller for RGBW tape light
Field Wiring Accessories
TPF5NF
5-Pin Power Feed Kit
5-Pin Power Feed Kit
Mounting Accessories
TAP16
16mm Wide Aluminum Straight Channel
TAP16TL
Trimless 16mm Wide Aluminium Profile
TSG
Silicone glue
TB16
16mm Wide Mounting Brackets
TBB16
16mm Wide Bendable Aluminum Channel
16mm Wide Aluminum Straight Channel
TAP16TL
Trimless 16mm Wide Aluminium Profile
TSG
Silicone glue
TB16
16mm Wide Mounting Brackets
TBB16
16mm Wide Bendable Aluminum Channel
Compatible Drivers
TND-96
96W Indoor/Outdoor Driver ON/OFF
96W Indoor/Outdoor Driver ON/OFF
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
