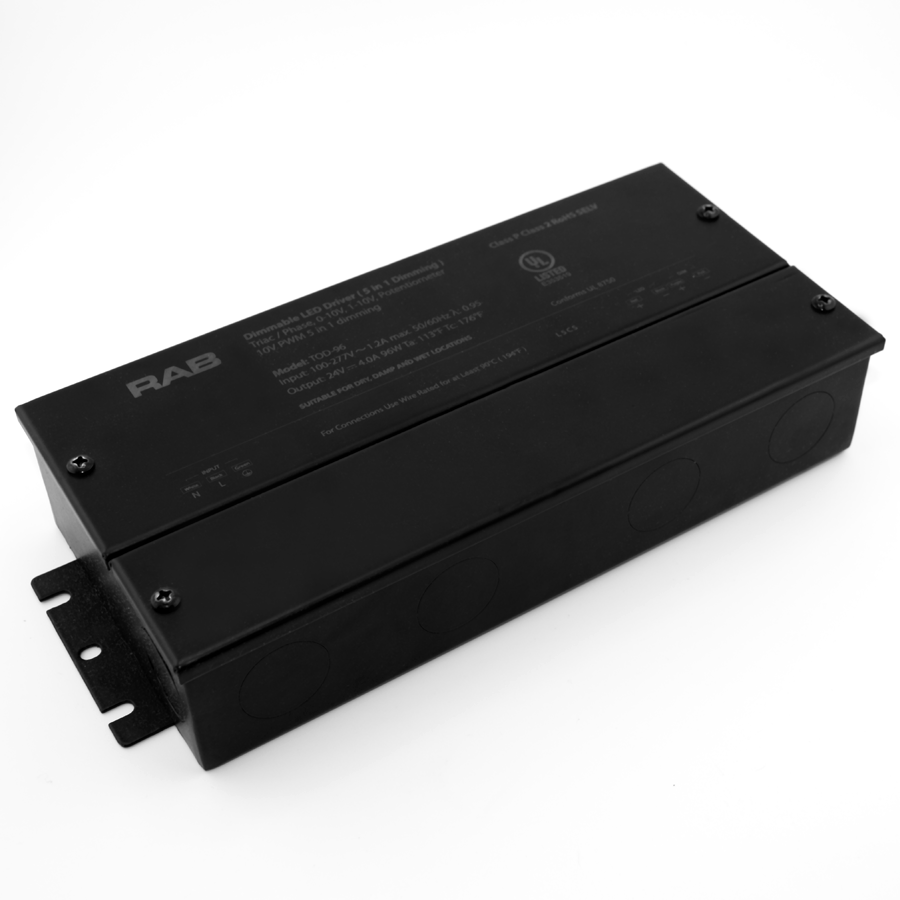

TOD-96

120-277V Universal input voltage

TRIAC, ELV, and 0-10V dimming

0.1% Performance dimming, dim-to-dark>Outdoor Rated

UL Listed and Title 24 JA8 Compliant

5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan

Type	Constant Voltage
120V
208V
240V
277V
Input Watts

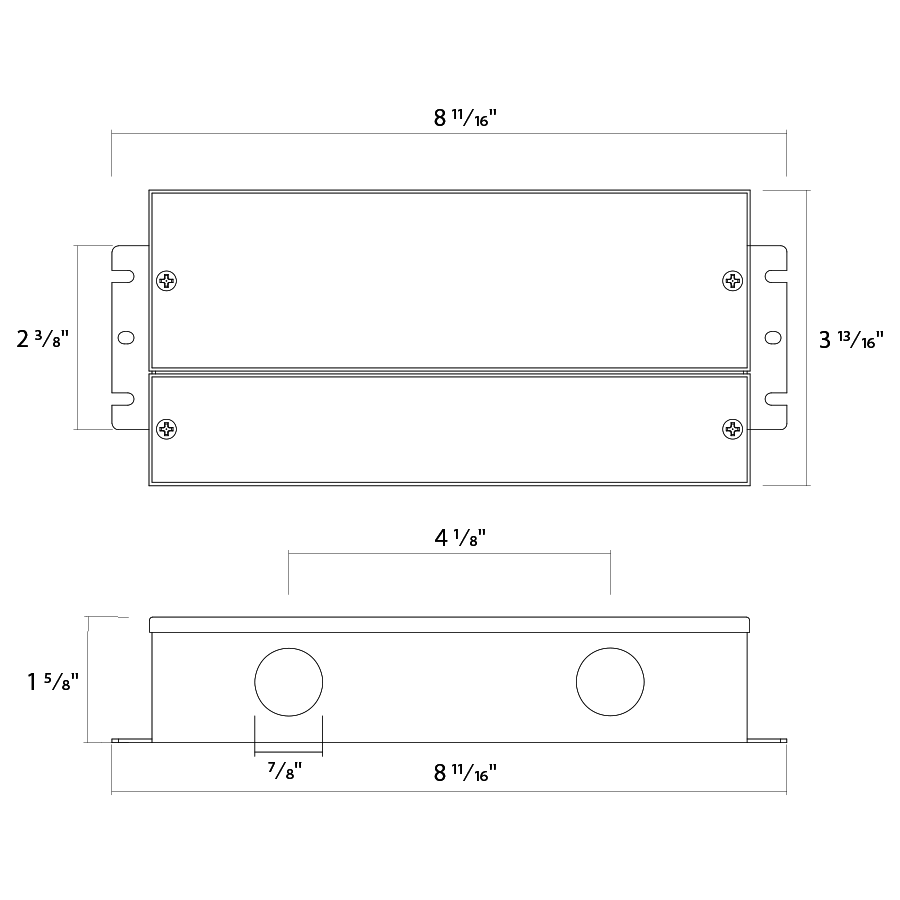

Dimensions

Weight: 2.6 lbs

Technical Specifications

Performance

Product Type

LED Tape Light Driver - Wet Rated

Description

Versatile driver with high-performance dimming on ELV, TRIAC, and 0-10V dimming system that allows for dim-to-dark

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

0.95

Dimmable

Yes, dimmable down to 0.1% on compatible TRIAC/ELV or 0-10V dimming systems. See Dimmer Compatibility List.

Input Voltage

100-277V

Output Power

96W Max

Output Voltage

24VDC

Output Current

Operating Frequency

47-63Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Storage Temperature

-4°F (-20°C) to 140°F(60°C)

Construction

Material Construction

Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP65

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Compatible with the following ARCTAPE products: TICYY, TICY, TICYN, TICN, TICCW, TICLYY, TICLY, TICLYN, TICLN, TICLCW, TICHYY, TICHY, TICHYN, TICHN, TICHCW

>
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW

Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY

Compatible with the following NEOFLEX products: TOCYY, TOCY, TOCYN, TOCN, TOCCW

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
