VANLED10YW/MVS
VANLED10YW/MVS
- Fits the footprint of older canopy lights
- Vandal resistant and UV resistant lens
- Ultra-high efficiency
- Clean, contemporary, low-profile design
- Available with drop lens or flat lens
- IP66 rated, keeps dust, bugs and water out
- Photo and motion sensor options available
Performance
| Watts | 10W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,913 lm |
| Efficacy | 136.5 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.05A |
| Input Watts | 14W |
Dimensions
Weight: 11.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PH5Z8JN3 (DLC Premium: Stairwell and Passageway Luminaires)
DLC Product Code: S-KSF7HR (DLC Standard: Canopy Lighting)
DLC Product Code: PH5Z8JN3 (DLC Premium: Stairwell and Passageway Luminaires)
DLC Product Code: S-KSF7HR (DLC Standard: Canopy Lighting)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50-60Hz, 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
16.15% at 120V, 12.87% at 277V
Power Factor
96.7% at 120V, 93.1% at 277V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 70°C (158°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Lens
Vandal-resistant polycarbonate textured opaque for low glare drop lens
Housing
Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
Air Tight
Housing certified Air Tight as per ASTM E283
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Installation
Mounting
Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points
Sensor Settings
Capacitance Load
400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
Operating Temperature
-20°C to +60°C (-4°F to +140°F)
Relay
Zero-cross relay
Maximum Mounting Height
16.4 ft
Customizable Detection Area
10, 50, 75 or 100%
Time Delay
5s, 30s, 1min, 5min, 10min, 20min, 30min
Cut Off Period
0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
Cut-Off Dimming level
10, 20, 30, 50%
Cut-Off Power
Less than 1W
Daylight Threshold
About .2-5 fc for disabled
Sensor Principle
High Frequency
Microwave Frequency
5.8GHz +/- 75MHz
Microwave Power
<0.2mW
Max Detection Range
26 ft diameter at 16 ft mounting height
Detection Angle
About 30 to 150 degrees
Remote Control Accessory
Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
Equivalent to 70W Metal Halide
Recently Viewed Products
VANLED10YW/MVS
Canopy Lights 1913 Lumens Vanled 10W 3000K 0-10V Dimmable 120V-277V Drop Clear Lens Microwave Sensor White
HIDFA-27S-EX39-8CCT-BYP
Hid Replacements 1740/2610/3915 Lumens Hid Field Adjustable Selectable 12/18/27W Base Ex39 80Cri Selectable 3000/4000/5000K Ballast Bypass
A15-5-E26-922/30-F-C-WGD
A-Line Bulbs 450 Lumens A15 5W Base E26 90Cri 2200/3000K Select Filament Clear Dim To Warm
RDLED2R8-20YHC-TLW
Recessed Downlights 599 Lumens Rdled2R8 2 Inch Round 8W 20 Degree Beam Spread 90Cri 3000K Trimless White Trim Ring
ALED3T105NRG/480/D10
Arealights 12117 Lumens Aled Type Iii 8In Pole Arm 4000K 105W 480V 0-10V Dimming Roadway Gray

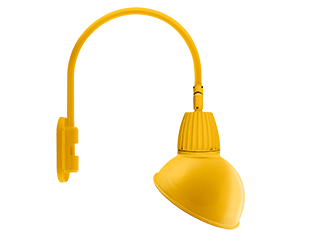

GN4LED26YRADYL
