Suitable for Wet Locations. Covered Ceiling Mount Only.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP66 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PPCDM38R (DLC Premium: Stairwell and Passageway Luminaires)
DLC Product Code: S-PV0DHB (DLC Standard: Canopy Lighting)

Class P, Class 2, Constant Current, 480V, 50-60Hz, 480V: 0.13A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

9.03% at 480V

98.14% at 480V

Long-life, high-efficacy, surface-mount LEDs

RAB LEDs exceed industry standards for chromatic stability

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Suitable for use in up to 131°F (55°C)

The minimum starting temperature is -40°F (-40°C)

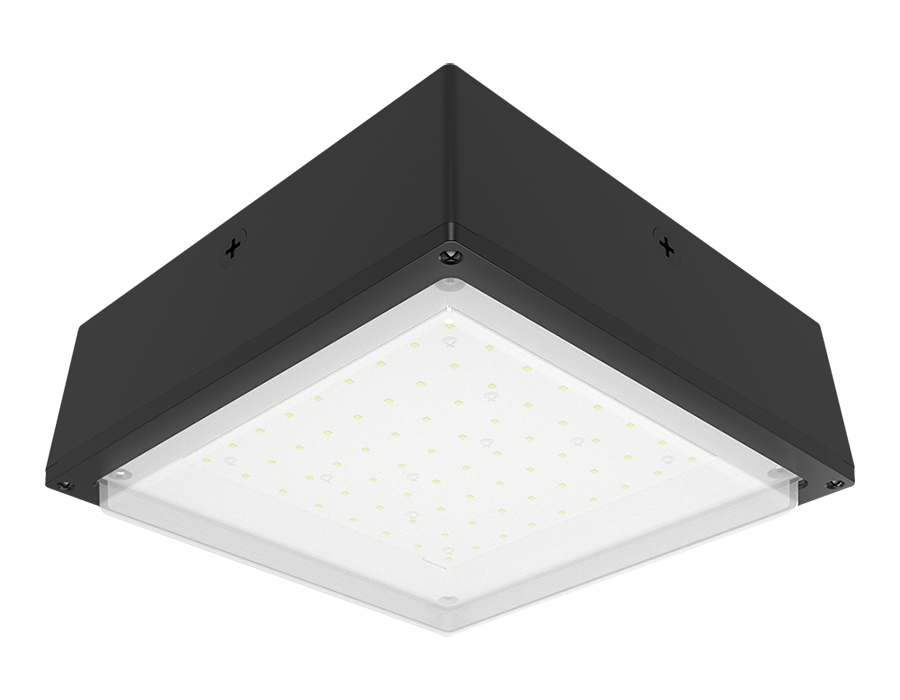

Vandal-resistant polycarbonate textured opaque for low glare frosted drop lens

Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate

Housing certified Air Tight as per ASTM-E283

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - NHCZ2BIA17L
Learn more at www.lightcloud.com

Equivalent to 200W Metal Halide
