VANLED65NFR
VANLED65NFR
- Fits the footprint of older canopy lights
- Vandal resistant and UV resistant lens
- Ultra-high efficiency
- Clean, contemporary, low-profile design
- Available with drop lens or flat lens
- IP66 rated, keeps dust, bugs and water out
- Photo and motion sensor options available
Performance
| Watts | 65W |
| Color Temp | 4000K (Neutral) |
| Lumens | 8,237 lm |
| Efficacy | 133.3 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.55A |
| 208V | 0.32A |
| 240V | 0.27A |
| 277V | 0.24A |
| Input Watts | 61.8W |
Dimensions
Weight: 11.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P8SKSUWF (DLC Premium: Stairwell and Passageway Luminaires)
DLC Product Code: S-VGP5UX (DLC Standard: Canopy Lighting)
DLC Product Code: P8SKSUWF (DLC Premium: Stairwell and Passageway Luminaires)
DLC Product Code: S-VGP5UX (DLC Standard: Canopy Lighting)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50-60Hz, 120V: 0.55A, 208V: 0.32A, 240V: 0.27A, 277V: 0.24A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
2.29% at 120V, 6.88% at 277V
Power Factor
99.71% at 120V, 94.69% at 277V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 55°C (131°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Lens
Vandal-resistant polycarbonate textured opaque for low glare frosted drop lens
Housing
Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
Air Tight
Housing certified Air Tight as per ASTM E283
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Installation
Mounting
Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
Equivalent to 200W Metal Halide
Recently Viewed Products
NDLED6RD-80Y-W-S
Recessed Downlights 20 Lumens Ndled6Rd 6 Inch Round Universal Dimming 80 Degree Beam Spread 3000K 80Cri White Cone Silver Trim
GN3LED26NSAC11B
Decorative 1675 Lumens Gooseneck 26W 4000K Up Curve 30 Inches High & 25 Inches From The Wall Angled Cone Spot 11 Inches Black
RDDLED2S-10D-WYY-S-BTL
Recessed Downlights 737 Lumens Rddled 2 Inches Square 10W Dimmable Wall Wash 2700K 80Cri Specular Trim Cone Black Trim Ring Trimless

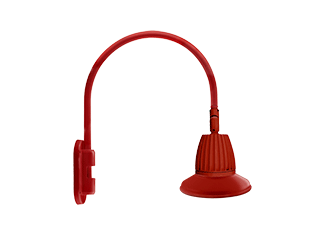

GN1LED13NSTR
