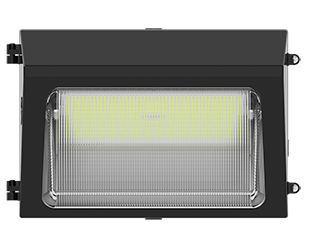

W22-M-60

60W 3000/4000/5000K

100,000-Hour LED lifespan

0-10V dimming standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40/30W
Color Temp	3000/4000/5000K
Lumens	3,727-9,105 lm
Efficacy	117.1-161.5 lm/W
Color Accuracy	82-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.50A
208V	0.29A
240V	0.25A
277V	0.22A
Input Watts	29.3-61W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 9.5 lbs

Technical Specifications

Field Adjustability

Cutoff Adjustability

45°, 30°, 15° and 0° (factory default 45°)

Field Adjustable

Field Adjustable Light Output:
60W/50W/40W/30W (factory default 60W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-TFCRVC

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19
40W: 120V: 0.34A, 208V: 0.20A, 240V: 0.18A, 277V: 0.15A
30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Photocell

Integrated photocell included with on/off switch

Surge Protection

DM 4 kV+ CM 6 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Performance Data

Click here for the W22-M-60 performance data

Wattage Equivalency

60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
50W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
40W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
30W: Replaces up to 150W Metal Halide (MH) or 100W High Pressure Sodium (HPS)

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Housing

Die-cast aluminum

Lens

Glass

Reflector

Aluminum

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Suface mount for recessed junction box; 3 conduit entry points

Optical

BUG Rating

60W: B2 U4 G5
50W: B2 U4 G4
40W: B1 U3 G4
30W: B1 U3 G3

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
