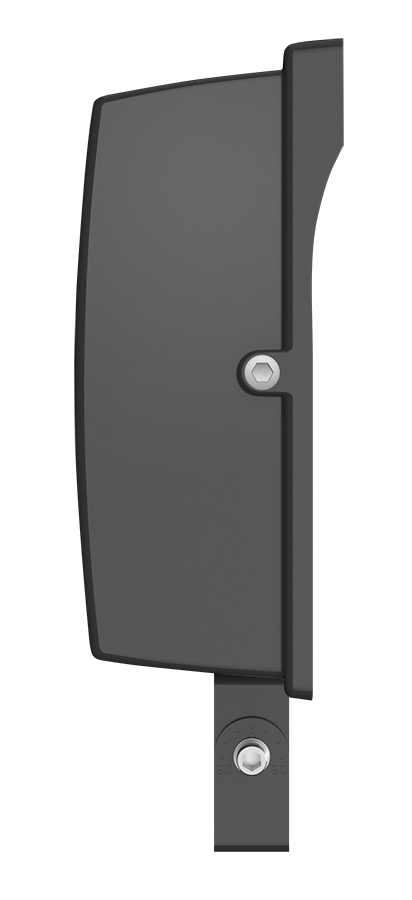

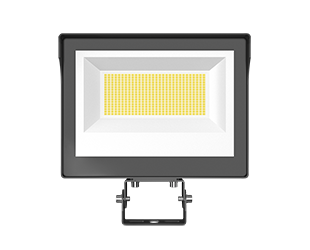

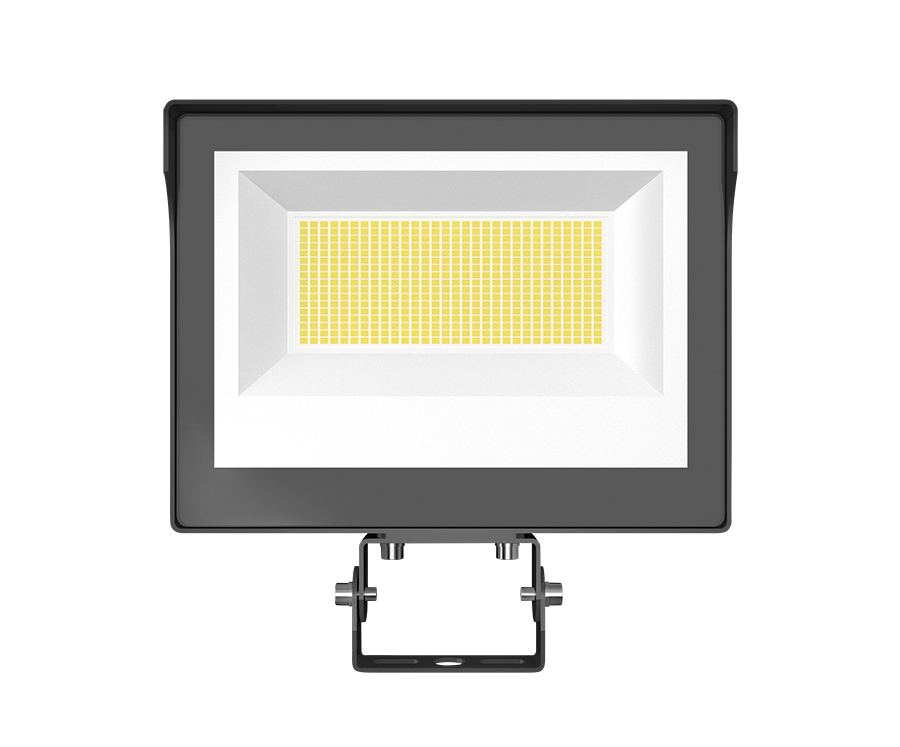

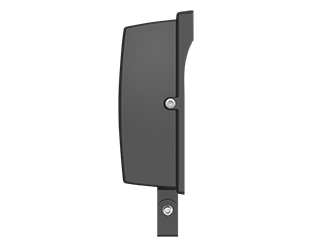

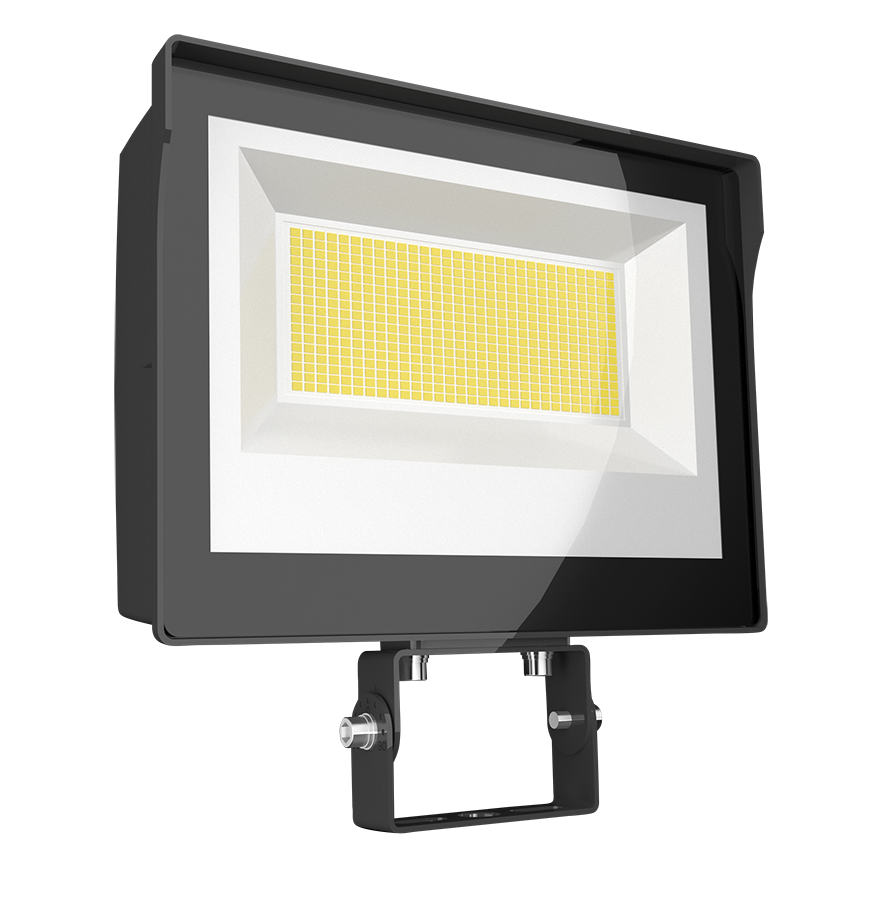

X17XFU60T
60W 3000/4000/5000K
- 3-Way field adjustability
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 60W |
| Color Temp | 3000/4000/5000K |
| Lumens | 4,793-9,142 lm |
| Efficacy | 142.7-163 lm/W |
| Color Accuracy | 81-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.49A/0.41A/0.25A |
| 208V | 0.14A/0.24A/0.14A |
| 240V | 0.24A/0.21A/0.12A |
| 277V | 0.21A/0.18A/0.11A |
| Input Watts | 29.63-61.97W |
Dimensions
Weight: 4.8 lbs
Technical Specifications
Field Adjustability
3-Way Field Adjustable
Field Adjustable Light Output:
60/50/30W (factory default 60W)
Color temperature (selectable by 3000K, 4000K and 5000K)
60/50/30W (factory default 60W)
Color temperature (selectable by 3000K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-66BVY7
DLC Product Code: S-66BVY7
Electrical
Driver
60W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.49A, 208V: 0.28A, 240V: 0.24A, 277V: 0.21A
50W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A
30W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
50W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A
30W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
13.64% at 120V, 13.87% at 277V
Power Factor
92.3% at 120V, 91.9% at 277V
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
2.5kV
Shorting Cap
Shorting Cap included for Twistlock Receptacle
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Ambient Temperature
Max Power Temp Rating: 40°C (104°F)
Middle Power Temp Rating: 46°C (114°F)
Low Power Temp Rating: 55°C (132°F)
Middle Power Temp Rating: 46°C (114°F)
Low Power Temp Rating: 55°C (132°F)
Housing
Precision die-cast aluminum
Lens
Tempered glass
Reflector
Polycarbonate
Effective Projected Area
EPA = 0.68
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread 7H x 7V
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
