WFD34-4/BP

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

WFD34-4/BP

7W 2700/3000/3500/4000/5000K

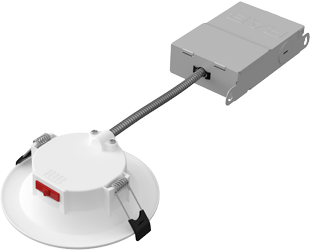

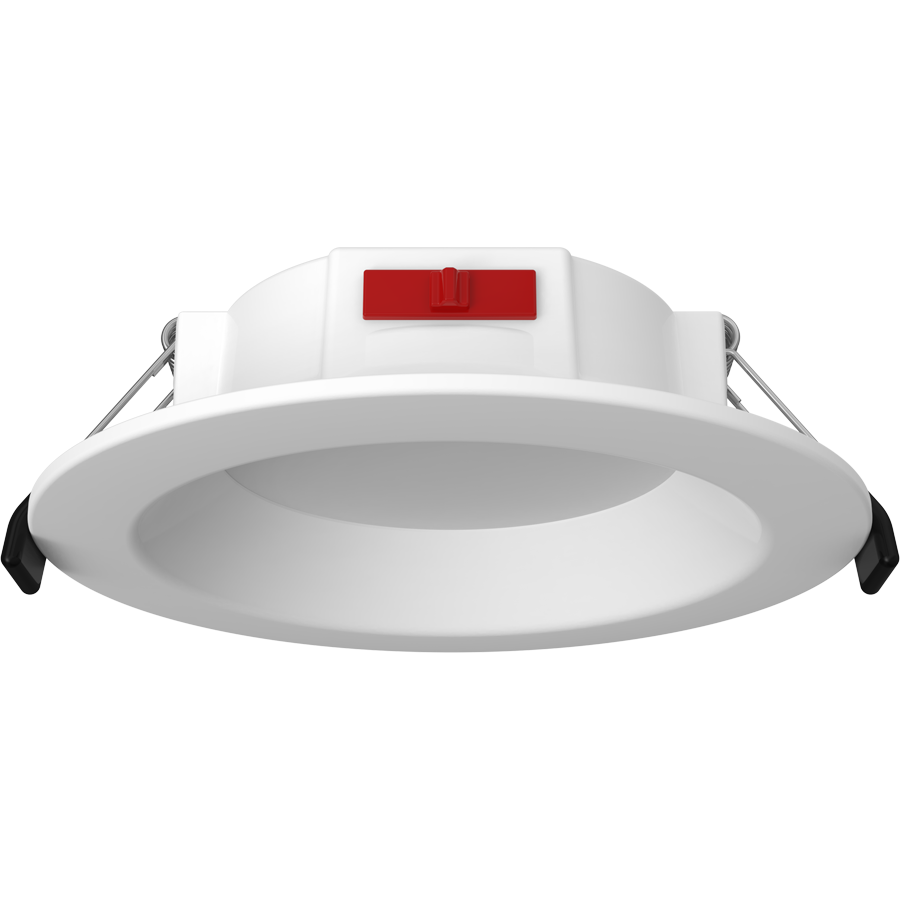

Recessed can-less LED recessed downlights designed for easy installation into new construction or remodel applications.

Five selectable color temperatures in each fixture. (2700-3000-3500-4000-5000K)

No housing required and includes pre-wired junction box. IC and Air-Tight rated.

Available in smooth & baffle trims, wet location rated, and CEC Title 24 compliant

Packaged in bulk case quantities of 12

View Technical Specs

View Price & Availability

Performance

Watts	7W
Color Temp	2700/3000/3500/4000/5000K
Lumens	593-6635 lm
Efficacy	85.3-983 lm/W
Color Accuracy	90 CRI
L70 Lifespan	30,000 Hours

Type	Constant Current
120V	0.07A
208V	0.00A
240V	0.00A
277V	0.00A
Input Watts	6.7-7W

EZ-Layout

Create Custom Lighting Layout

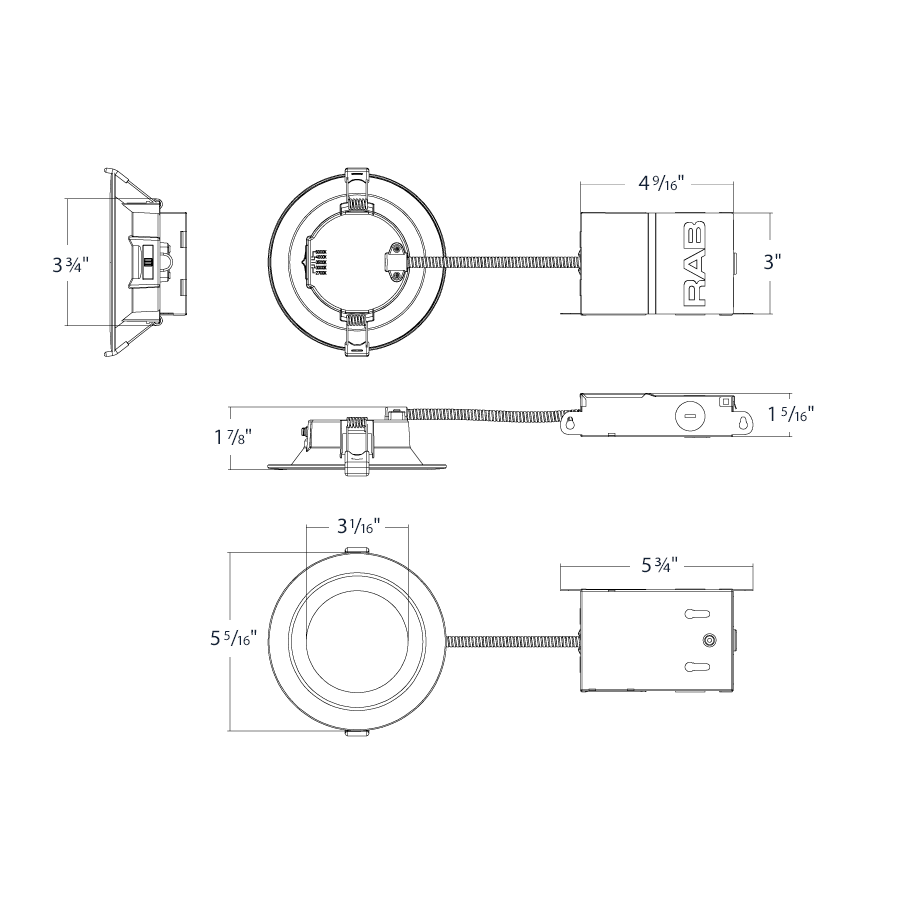

Dimensions

Weight: 5.3 lbs

Technical Specifications

Performance

Input Wattage

Lumens

600lm

Efficacy

86lm/W

L70 Lifespan

30,000-hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current @ 120V, 60 Hz: 65mA

Power Factor

0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

<30%

LED Characteristics

Beam Angle

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<5-step (2700K &5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Remote Driver/Junction Box

Aluminum driver / junction box with captive hinged junction box cover. Listed for (6) #12 AWG 90°C splice conductors, 2-in, 2-out plus (2) ground. Integral keyhole mounting slots facilitate direct mounting to building structure or new construction mounting frame.

Mounting

Utilizes a remote driver with built-in junction box and quick disconnect; Eliminates the need for traditional donwlight housings.

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLW0142(WFD34-4)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar

DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate

DLPLATE/WFR4/NB/CL
4" Mounting plate w/nailer bar and drywall collar

DLPLATE/WFR4
4" Mounting plate

3-Year Limited Warranty

The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
