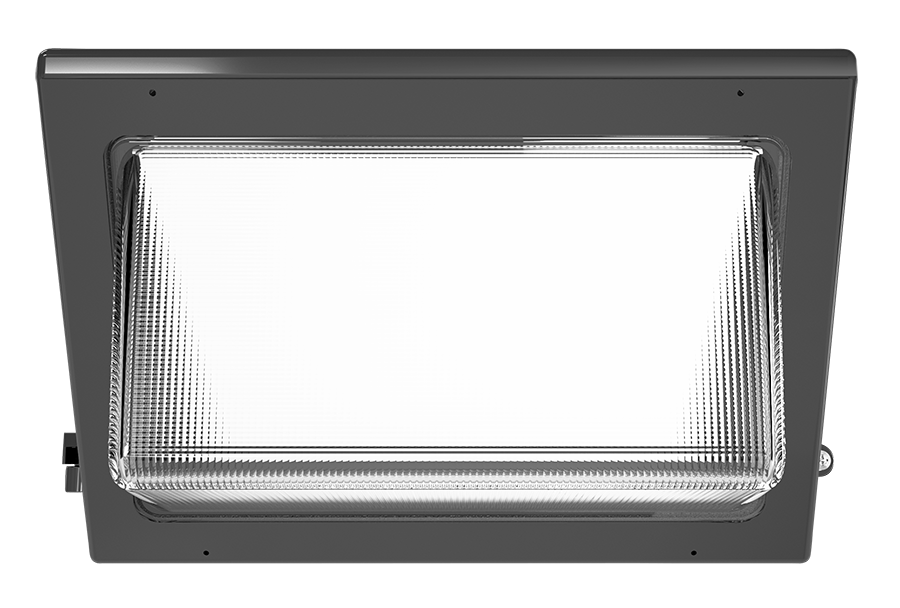

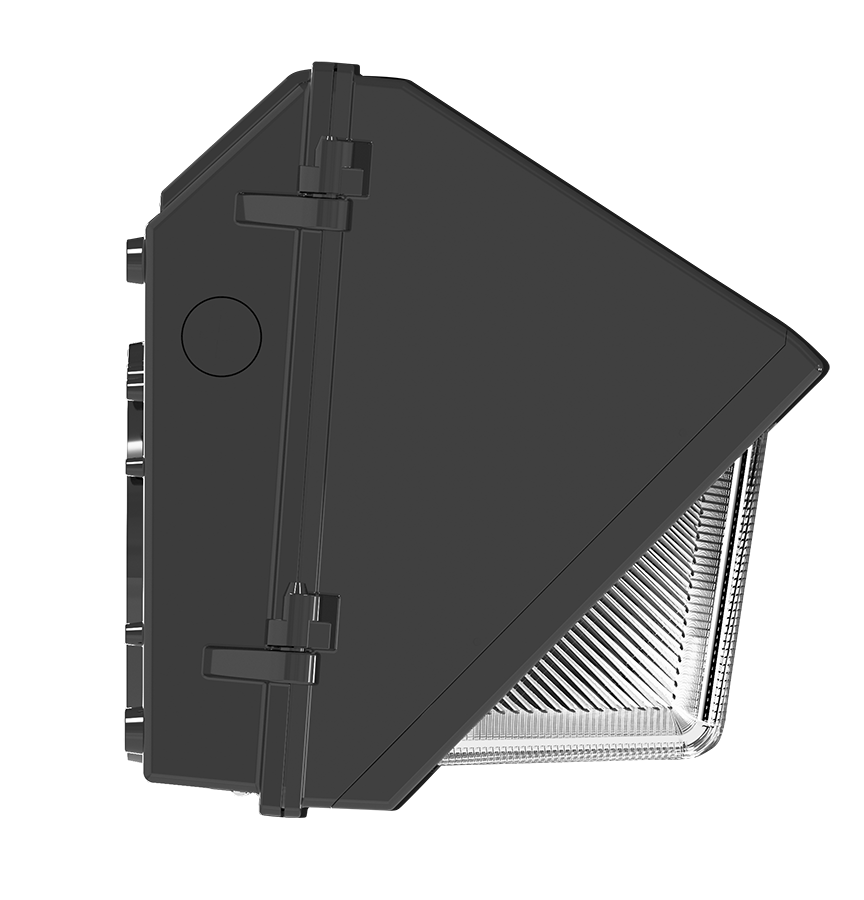

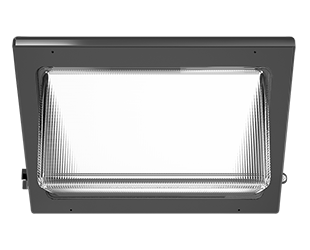

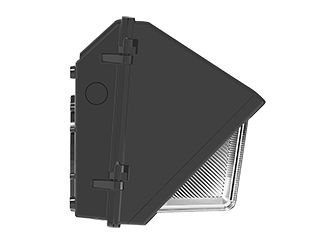

WP2XFU29
Performance
| Watts | 15W |
| Color Temp | 3000/4000/5000K |
| Lumens | 2216-4350 lm |
| Efficacy | 143.3-157.2 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.30A |
| 208V | 0.20A |
| 240V | 0.15A |
| 277V | 0.10A |
| Input Watts | 15-29.3W |
Dimensions
Weight: 7.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
29W/20W/15W (factory default 29W)
Color temperature (selectable by 3000K, 4000K and 5000K)
29W/20W/15W (factory default 29W)
Color temperature (selectable by 3000K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLC2WWSEFUB3
DLC Product Code: PLC2WWSEFUB3
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
29W: 125W Metal Halide
20W: 100W Metal Halide
15W: 70W Metal Halide
20W: 100W Metal Halide
15W: 70W Metal Halide
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.20A, 240V: 0.15A, 277V: 0.10A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell
120-277V selectable photocell that can be turned on and off.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 53°C (128°F)
Low Power Temp Rating: 54°C (128°F)
Middle Power Temp Rating: 53°C (128°F)
Low Power Temp Rating: 54°C (128°F)
Housing
Die-cast aluminum
Lens
Tempered glass
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Wall mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
