WP3LED75L-740U/PCU

Spec Sheet Instructions Spec Sheet

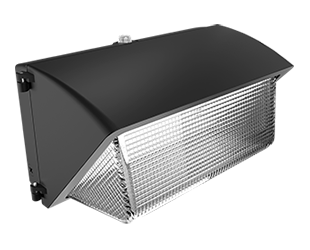

WP3LED75L-740U/PCU

Affordable wall pack with traditional look

Ultra-high efficacy

Covers footprint of large HID wall packs

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	51W
Color Temp	4000K (Neutral)
Lumens	7,702 lm
Efficacy	158.1
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.43A
208V	0.25A
240V	0.21A
277V	0.18A
Input Watts	48.7W

Dimensions

Weight: 24.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PP3D32JG

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 200W Metal Halide

LED Characteristics

LEDs

Multip-chip, high-output, long-life LEDs

Construction

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

40°C (104°F)

Housing

Die-cast aluminum

Reflector

Aluminum alloy

Lens

Glass

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, 120-277V, 50/60 Hz, 120V: 0.43A, 208V: 0.25A, 240V: 0.21A, 277V: 0.18A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

10.21% at 120V, 6.22% at 277V

Power Factor

99% at 120V, 98.7% at 277V

Surge Protection

4kV

Photocell

120-277V Button photocell included. Photocell is compatible with 120V-277V.

Installation

Mounting

Surface mount

Optical

BUG Rating

B1 U4 G4

Other

10-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
