WPLED18N

Spec Sheet Instructions Spec Sheet

WPLED18N

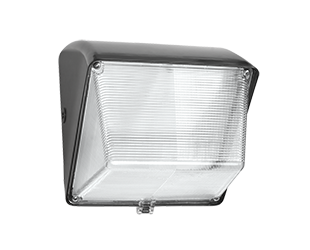

Ultra-high efficiency LED 18 Watt wall pack

Replaces 100W Metal Halide Wall packs

100,00-Hour LED Lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	18W
Color Temp	4000K (Neutral)
Lumens	2,775 lm
Efficacy	130.9 lm/W
Color Accuracy	70 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.15A
208V	0.09A
240V	0.08A
277V	0.07A
Input Watts	21.2W

Dimensions

Weight: 7.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P0000175K

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 100W Metal Halide

LED Characteristics

LED

Multi-chip, high-output, long-life LED

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Thermal Management

Superior heat sinking with external Air-Flow fins

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Reflector

Semi-specular, vacuum-metalized polycarbonate

Gaskets

High-temperature silicone gaskets

Housing

Die-cast aluminum housing, lens frame and mounting arm

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V 0.07A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

14.21% at 120V, 10.51% at 277V

Power Factor

97.4% at 120V, 95.1% at 277V

Installation

Mounting

Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws

Other

Patents

The design of WPLED18 is protected by US patent D608,040, Canada patent 138280, and China patent CN301649064S

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Replacement

Replaces 150W Metal Halide

Optical

BUG Rating

B1 U0 G0
