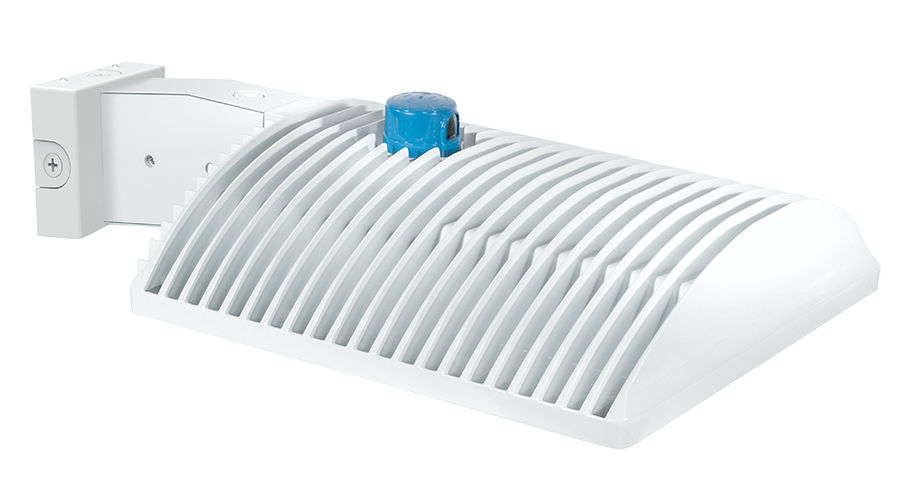

WPLED4T260NW/PCT
WPLED4T260NW/PCT
- High output, high efficiency LED
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- 5-Year, No-Compromise Warranty
Performance
| Watts | 260W |
| Color Temp | 4000K (Neutral) |
| Lumens | 30,944 lm |
| Efficacy | 119.6 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.21A |
| 208V | 1.25A |
| 240V | 1.09A |
| 277V | 0.97A |
| Input Watts | 258.7W |
Dimensions
Weight: 82.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
Construction
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management
Superior heat sinking with external Air-Flow fins
Housing
Die-cast aluminum with airflow fins for cooling
Lens
Tempered glass
Reflector
Vacuum-metalized polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.21A, 208V: 1.25A, 240V: 1.09A, 277V: 0.97A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.65% at 120V, 8.16% at 277V
Power Factor
99.8% at 120V, 96.7% at 277V
Surge Protection
6 kV
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
Performance
Wattage Equivalency
Equivalent to 750W Metal Halide
