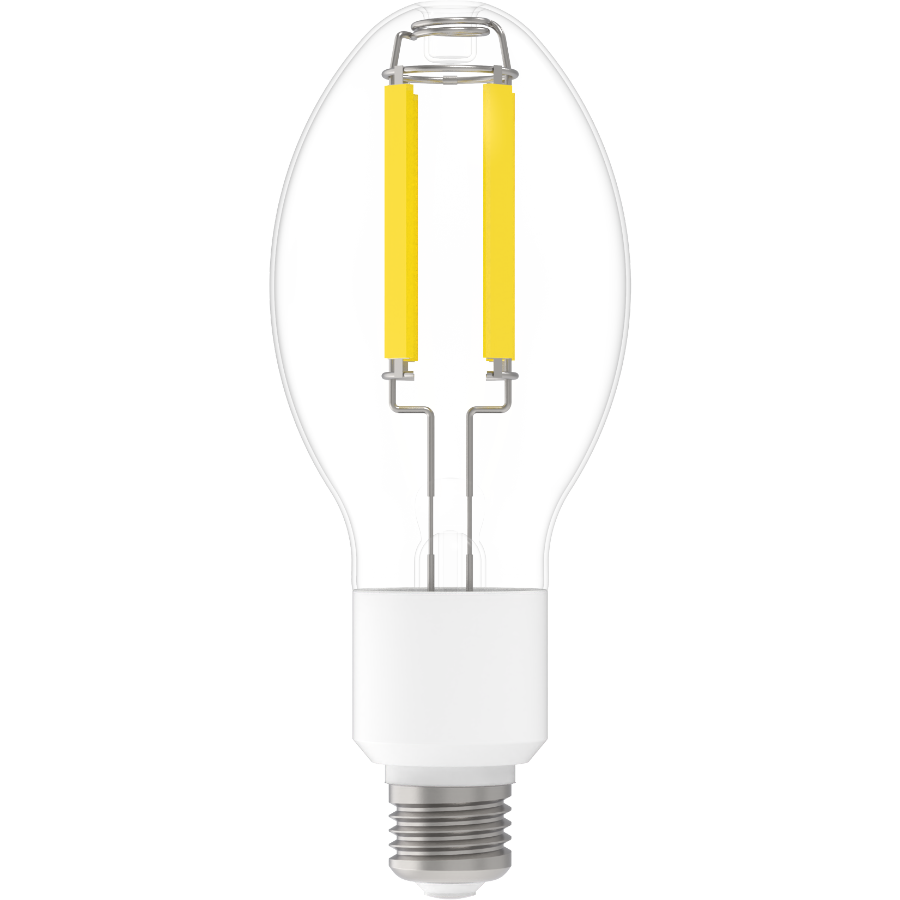

FHID-20-E26-850

Compact design offering the perfect fit with existing HID fixtures

Same look and feel as traditional HID lamps

Suitable for use in both enclosed and open fixtures

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

5000K Color temperature

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	5000K
Lumens	3,600 lm
Efficacy	180
Color Accuracy
L70 Lifespan

Input Voltage	120-277V
Power Factor	0.9
Flicker	N/A
THDi	<20%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

Glass LED HID Lamps

Description

Glass LED HID replacement lamps offer high-powered brightness with LED filament technology. Available in many standard ANSI sizes without sacrificing on traditional aesthetics.

Wattage Equivalency

70W

Input Wattage

20W

Lumens

3,600lm

Efficacy

180lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<20%

Power Factor

≥0.9

Dimmable

Non-Dimmable

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

200mA

Input Current @ 208V (mA)

96mA

Input Current @ 240V (mA)

83mA

Input Current @ 277V (mA)

72mA

Operating Temperature

-22°F to 113°F (-30°C to + 45°C)

Surge Protection

4kV

LED Characteristics

Beam Angle

360°

Color Temperature

5000K

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 greater than 14

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

E26 Medium Base

Construction

ANSI Size

ED23.5

Endcap Material

Metal

Enclosure Material

Glass Lamp Envelop

Lens Finish

Clear

Compliance

Listings

ETL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

IP Rating

IP54

DLC Listed

Certification Model Number

H10106(FHID-20-E26-850)

California Energy Commission (CEC) Status

Lawful for Sales in California

Rohs

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

HID-ACC-EX39

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
