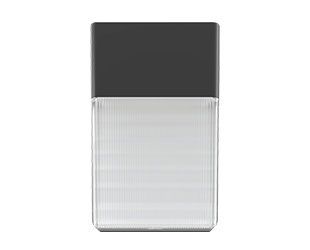

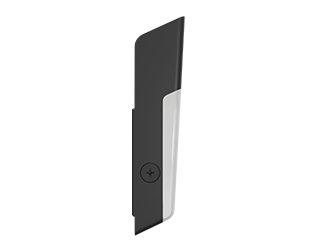

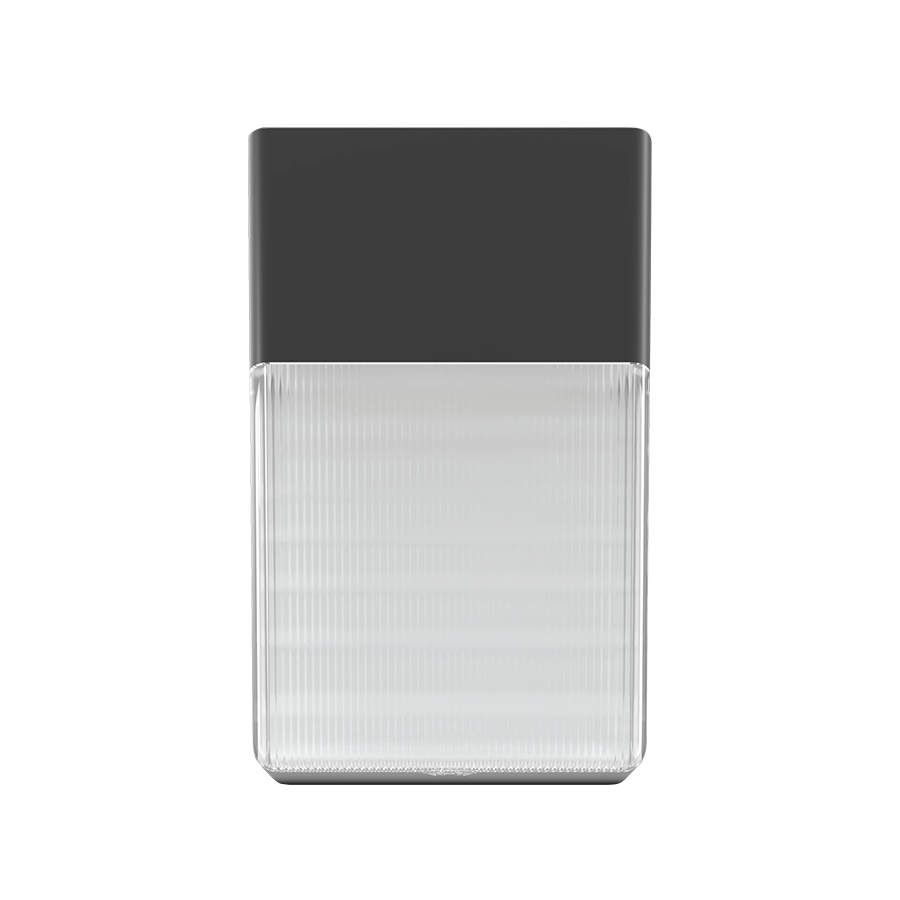

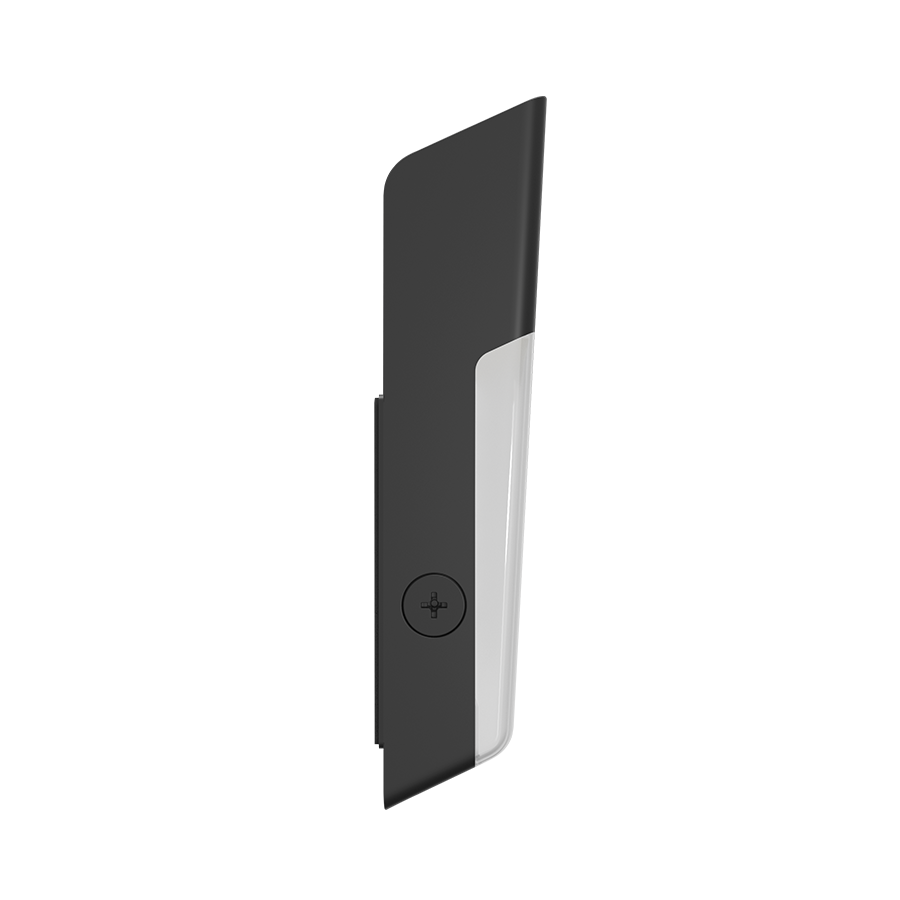

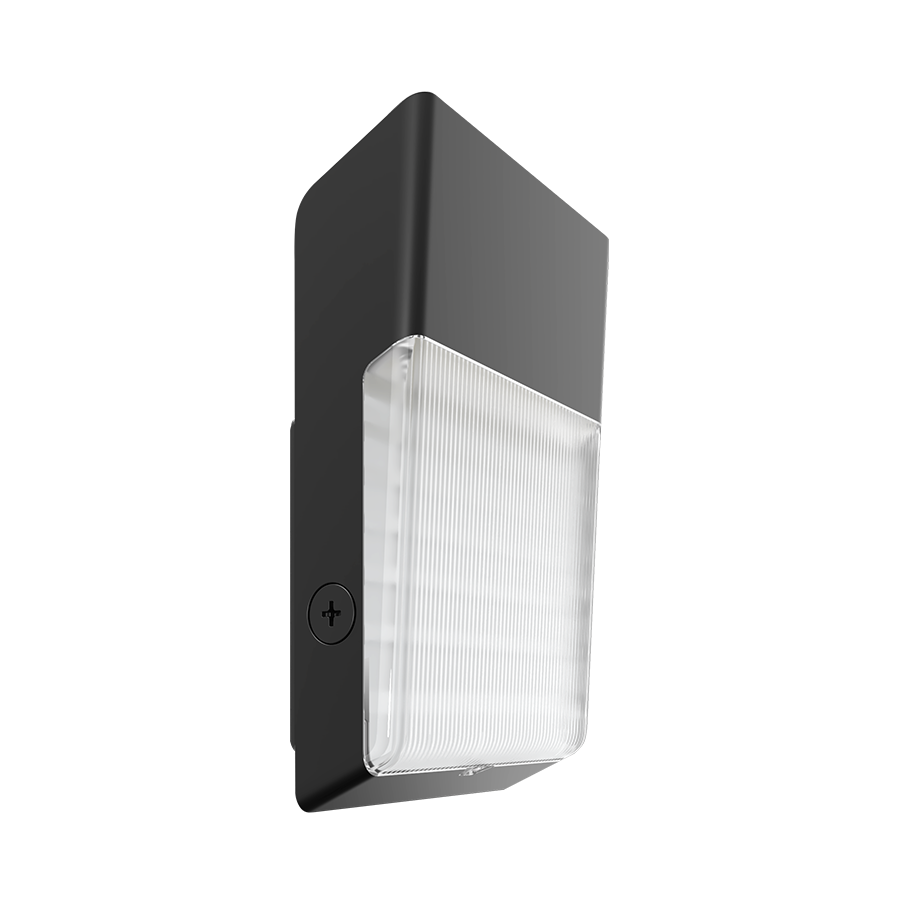

WPT/LC

40W 3000/4000/5000K

100,000-Hour LED lifespan

0-10V dimming standard

DLC Premium listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	40/25/15W
Color Temp	3000/4000/5000K
Lumens	2,162-5,345 lm
Efficacy	126.7-146.1 lm/W
Color Accuracy	83-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.33A/0.21A/0.13A
208V	0.19A/0.12A/0.07A
240V	0.17A/0.10A/0.06A
277V	0.14A/0.09A/0.05A
Input Watts	15.6-38.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.6 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Performance

Field Adjustable

Field Adjustable Light Output:
40/25/15 (factory default 40W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Lightcloud

Lightcloud Controller Installed

Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-5323T1

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Precision die-cast aluminum

Lens

Polycarbonate lens

Reflector

Specular aluminum

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
40W: 120V: 0.33A, 208V: 0.19A,240V: 0.17A, 277V: 0.14A
25W: 120V: 0.21A, 208V: 0.12A,240V: 0.10A, 277V: 0.09A
15W: 120V: 0.13A, 208V: 0.07A,240V: 0.06A, 277V: 0.05A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

9.94% at 120V, 9.42% at 277V

Power Factor

99.5% at 120V, 98.1% at 277V

Aux Power Supply

Yes

Surge Protection

4KV

Photocell

Integrated photocell included with on/off switch

Installation

Mounting

Wall mount

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
