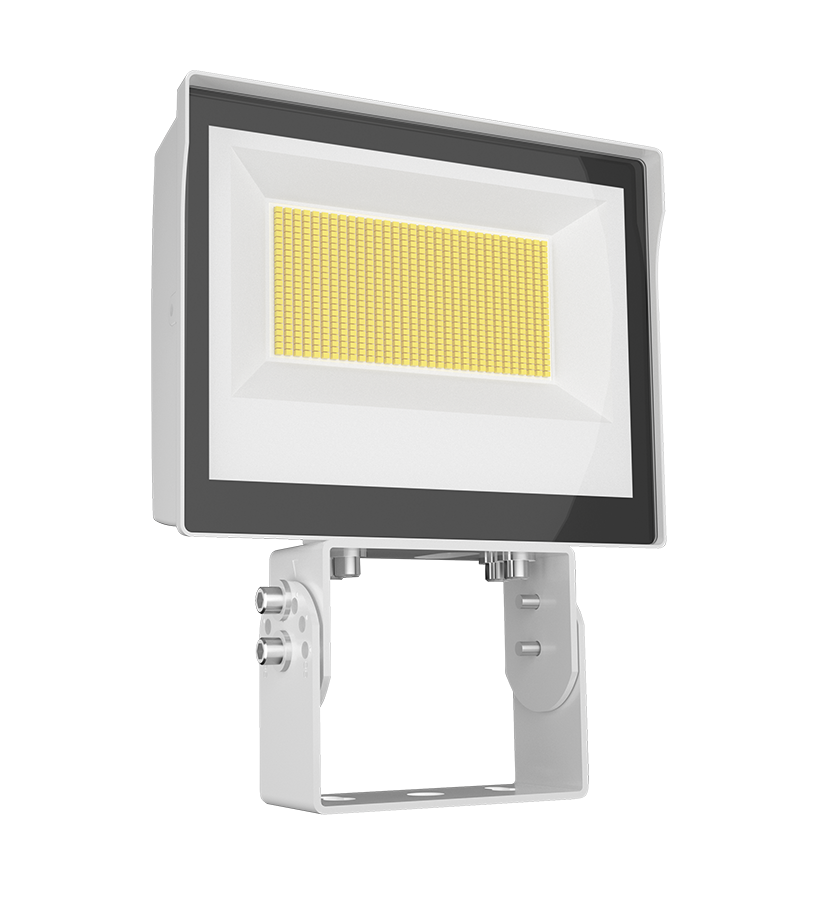

X17FA105TW

105W 3000K/4000K/5000K

DLC Premium listed

IP65 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	105W
Color Temp	3000K/4000K/5000K
Lumens	15,217/16,249/15,679 lm
Efficacy	142.4/155.3/146.1 lm/W
Color Accuracy	83/82/82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.87A
208V	0.50A
240V	0.44A
277V	0.38A
Input Watts	106.9/104.62/107.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 9.3 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Color temperature selectable by 3000K, 4000K and 5000K

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.87A, 208V: 0.50A, 240V: 0.44A, 277V: 0.38A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

9.12% at 120V, 10.89% at 277V

Power Factor

99.7% at 120V, 90.4% at 277V

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

6kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Precision die-cast aluminum

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

Tilt Increment

Rotates in 30 degree increments

Effective Projected Area

EPA = 1.05

Lens

Tempered glass

Reflector

Polycarbonate

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Optical

NEMA Type

NEMA Beam Spread of 7H x 7V

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Performance

Wattage Equivalency

Equivalent to 400W Metal Halide
