X34-35L-830W/277

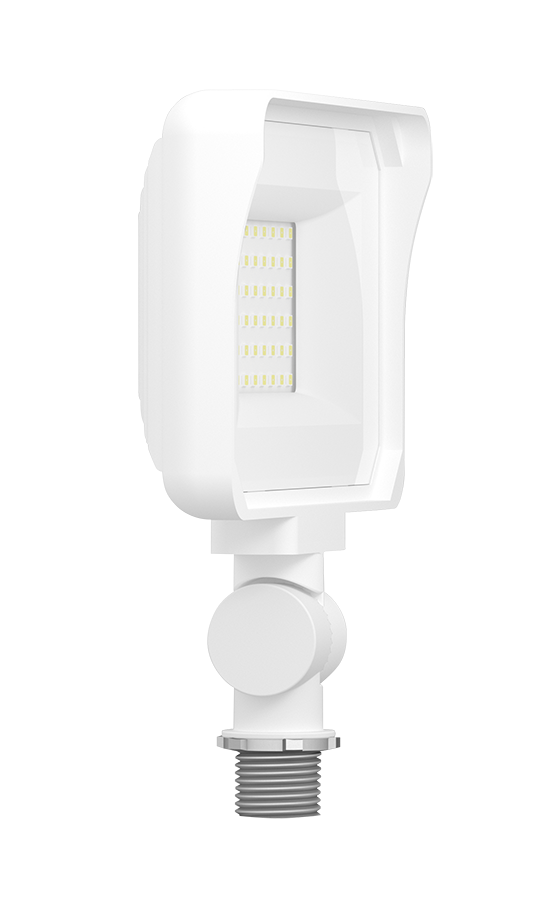

General purpose floodlight

Very wide 7H x 7V NEMA distribution

Low profile and lightweight

IP65 rating protects against dust and water

View Technical Specs

View Price & Availability

Performance

Watts	35W
Color Temp	3000K (Warm)
Lumens	4,222 lm
Efficacy	122.4 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V	0.14A
Input Watts	34.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, 277V, 60 Hz, 277V: 0.14A

THD

14.17% at 277V

Power Factor

99% at 277V

Stepped Dimming

Integrated/embedded reverse Phase-Cut stepped luminance-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and wave form to produce varying light output. Controller is remote located from fixture or junction box, or can be located by the electrical panel.

Surge Protection

2 kV

Optical

NEMA Type

NEMA Beam Spread 7H x 7V

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs
