There is elegance
in being indirect.

Customizable, spec-grade LED cove light.

FLEXICOVE™

Configure Your Flexicove

Product PDF Instructions Spec Sheet

Configure Your Flexicove

Product PDF Instructions Spec Sheet

Performance per foot

3500K Warm Neutral	3000K Warm	2700K Residential Warm
304 Lumens	284 Lumens	273 Lumens
3 Input Watts	3 Input Watts	3 Input Watts
102 lm/W	96 lm/W	93 lm/W
84 CRI	86 CRI	85 CRI

3500K

Warm Neutral

3000K

Warm

2700K

Residential Warm

304

Lumens

284

Lumens

273

Lumens

3

Input Watts

3

Input Watts

3

Input Watts

102

lm/W

96

lm/W

93

lm/W

84

CRI

86

CRI

85

CRI

Energy savings up to

30%

Finishes

Clear

Tolerance +/- 10%. Performance data is based on 1' length. For 10' multiply by 10, for 100' multiply by 100, etc. IES files available for download at rablighting.com

Infinite possibilities

Flexible and customizable, FLEXICOVE is offered in almost any length* and designed to follow straight lines or curves.

Infinite possibilities

Flexible and customizable, FLEXICOVE is offered in almost any length* and designed to follow straight lines or curves.

*Lengths from 4" to 140', in increments of 4"

Easy installation

Secure FLEXICOVE in place with our clear Mounting U-Channel and Mounting Clip. Change locations and simply plug into another outlet.

Easy installation

Secure FLEXICOVE in place with our clear Mounting U-Channel and Mounting Clip. Change locations and simply plug into another outlet.

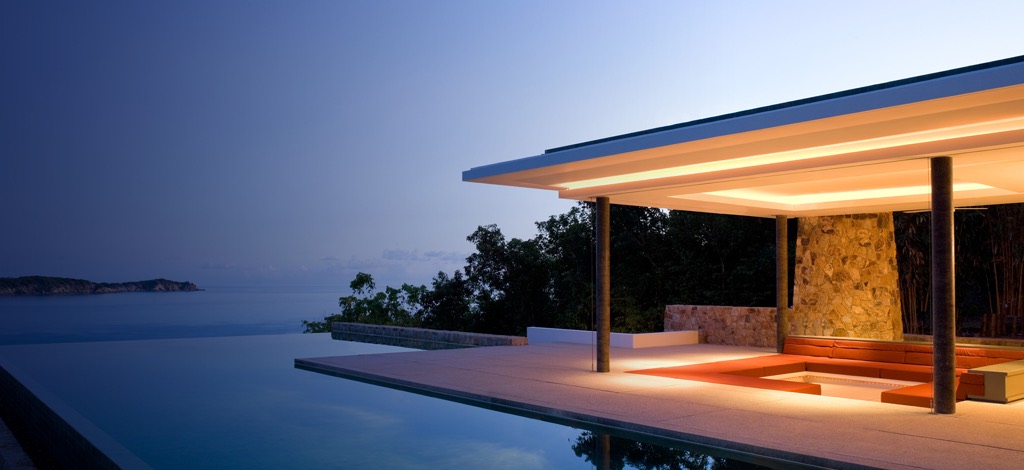

IP65 rating

Suitable for both indoor and outdoor use.

IP65 rating

Suitable for both indoor and outdoor use.

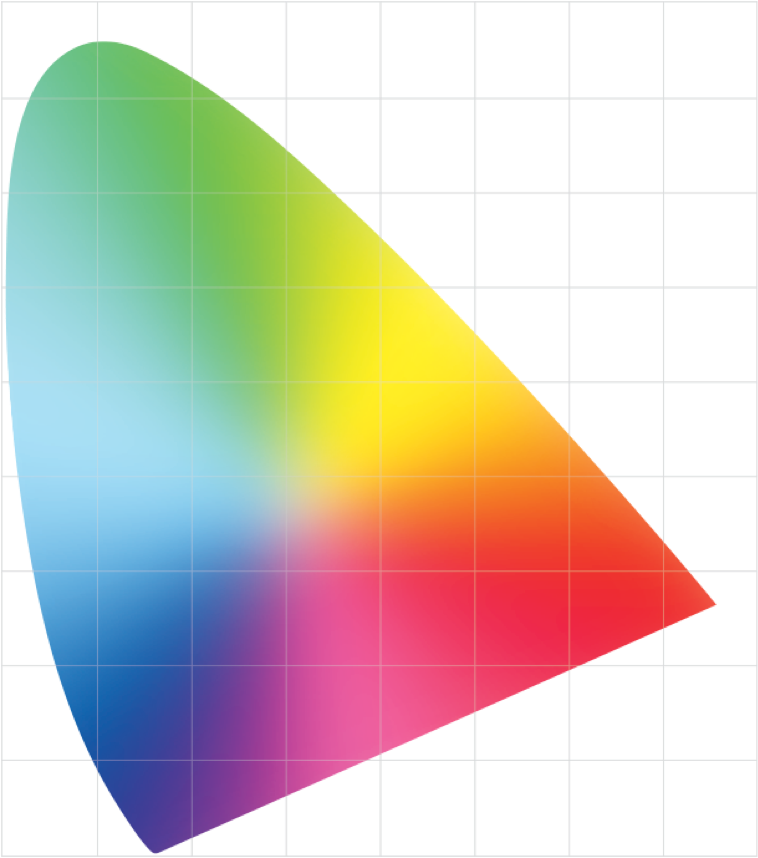

3-Step binning

3-step binning ensures consistent color.

3-Step binning

3-step binning ensures consistent color.

5-year limited warranty.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Dimmable.

Dimmable with compatible dimmers.*

50,000-hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and re-lamping costs.

5-year limited warranty.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Dimmable.

Dimmable with compatible dimmers.*

50,000-hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and re-lamping costs.

*Dimmer compatibility: T5 from Palawell

Cove Light Strip

Available lengths: up to a maximum cumulative length of 140' in increments of 4".

Cove Light Strip

Available lengths: up to a maximum cumulative length of 140' in increments of 4".

Jumper Cable

Available lengths: 4", 12", 60"

Jumper Cable

Available lengths: 4", 12", 60"

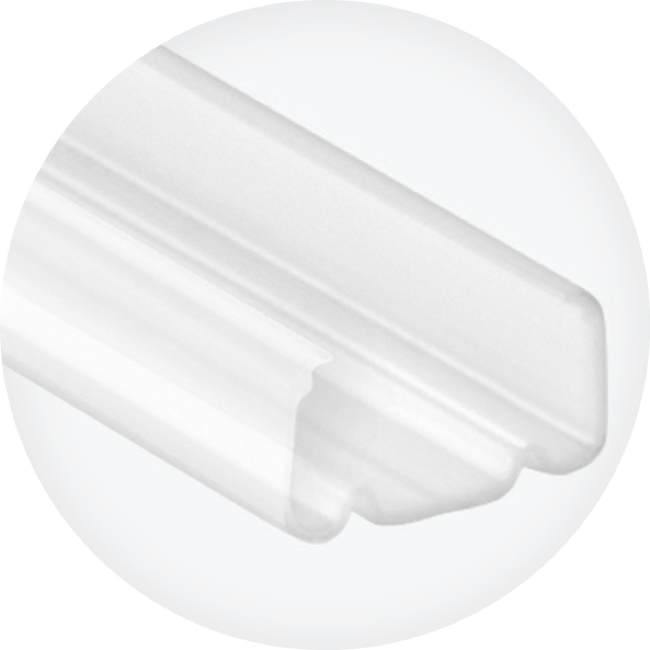

U-Mount Channels

Channels are available in 4’ or 8’ lengths, and may be ordered separately as accessories.

U-Mount Channels

Channels are available in 4’ or 8’ lengths, and may be ordered separately as accessories.

U-Clips

FLEXICOVE includes three U-Clips per foot of cove lighting.
Additional U-Clips may be ordered separately.

U-Clips

FLEXICOVE includes three U-Clips per foot of cove lighting.
Additional U-Clips may be ordered separately.

Leader Cable (Metal Surge Protector)

Available lengths: 2', 5', 8', 10; (for illuminated length of 75'-140')

Leader Cable (Metal Surge Protector)

Available lengths: 2', 5', 8', 10; (for illuminated length of 75'-140')

Leader Cable (PVC Surge Protector)

Available lengths: 2', 5', 8', 10' (for illuminated length up to 75')

Leader Cable (PVC Surge Protector)

Available lengths: 2', 5', 8', 10' (for illuminated length up to 75')

Mounting Positions

It is recommended that the LED fixtures be installed into a minimum space of 3" (76mm) wide.

Mounting Positions

It is recommended that the LED fixtures be installed into a minimum space of 3" (76mm) wide.

Mounting Accessories

FLEXICOVE includes three U-Clips per foot for mounting.
U-Mount Channels (4’ and 8’ lengths), as well as additional U-Clips may be ordered separately.

Mounting Accessories

FLEXICOVE includes three U-Clips per foot for mounting.
U-Mount Channels (4’ and 8’ lengths), as well as additional U-Clips may be ordered separately.

Bending Flexicove

Bend FLEXICOVE at a minimum 2" radius, never by 90°. Do not bend on a horizontal plane.

Bending Flexicove

Bend FLEXICOVE at a minimum 2" radius, never by 90°. Do not bend on a horizontal plane.

Installation

Some loss of illumination may occur where the end-cap and connectors cover LEDs. Do not cut LED strip.

Installation

Some loss of illumination may occur where the end-cap and connectors cover LEDs. Do not cut LED strip.

WARNING: DO NOT CUT. Field cutting will result in product damage and void your warranty.
Please note that it may also cause injury.
