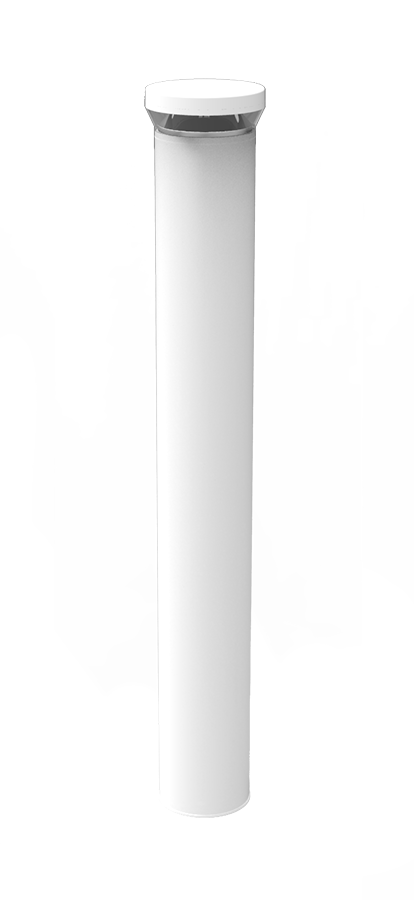

BLEDR24NW/E

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

BLEDR24NW/E

Backup battery UL924 listed

Patent-pending base mount design for super sturdy installation

Durable construction and vandal-resistant polycarbonate lens

90 minutes illumination time during power interruption

360° lighting pattern

Precision-engineered optics deliver maximum downward lighting without glare

Four leveling screws provided for easy installation

100,000-hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	24W
Color Temp	4000K (Neutral)
Lumens	2,815 lm
Efficacy	121.9 lm/W
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.26A
208V	0.18A
240V	0.15A
277V	0.14A
Input Watts	23.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 23.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Consistency

5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 720mA, 120V: 0.26A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A

THD

4.15% at 120V, 5.34% at 277V

Power Factor

99.6% at 120V, 93.7% at 277V

BLEDR24 with Battery Backup

Minimum starting temperature is 0°C/32°F

Battery Backup

Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries

Optical

BUG Rating

B2 U3 G2

Construction

Thermal Management

Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.

Housing

Die-cast aluminum with extruded aluminum post

Lens

Frosted vandal resistant polycarbonate

Reflector

Vacuum-metalized polycarbonate

Mounting

Four (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws.

Gaskets

High-temperature silicone gaskets seal out moisture gaskets seal out moisture

Anchor Bolt

Anchor Bolt Dimension is available here.

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Patents

The design of BLED is protected by patents in US, Canada & China

Replacement

Replaces up to 50W Metal Halide

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
