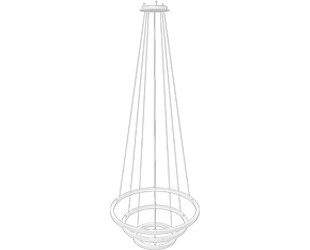

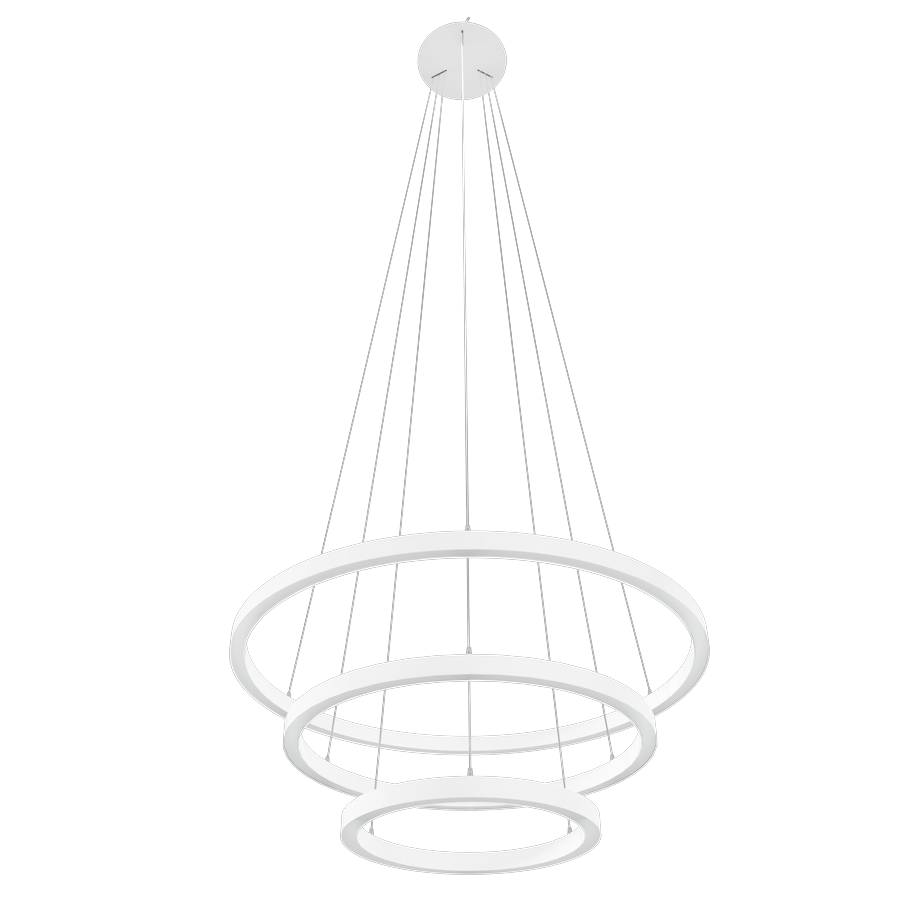

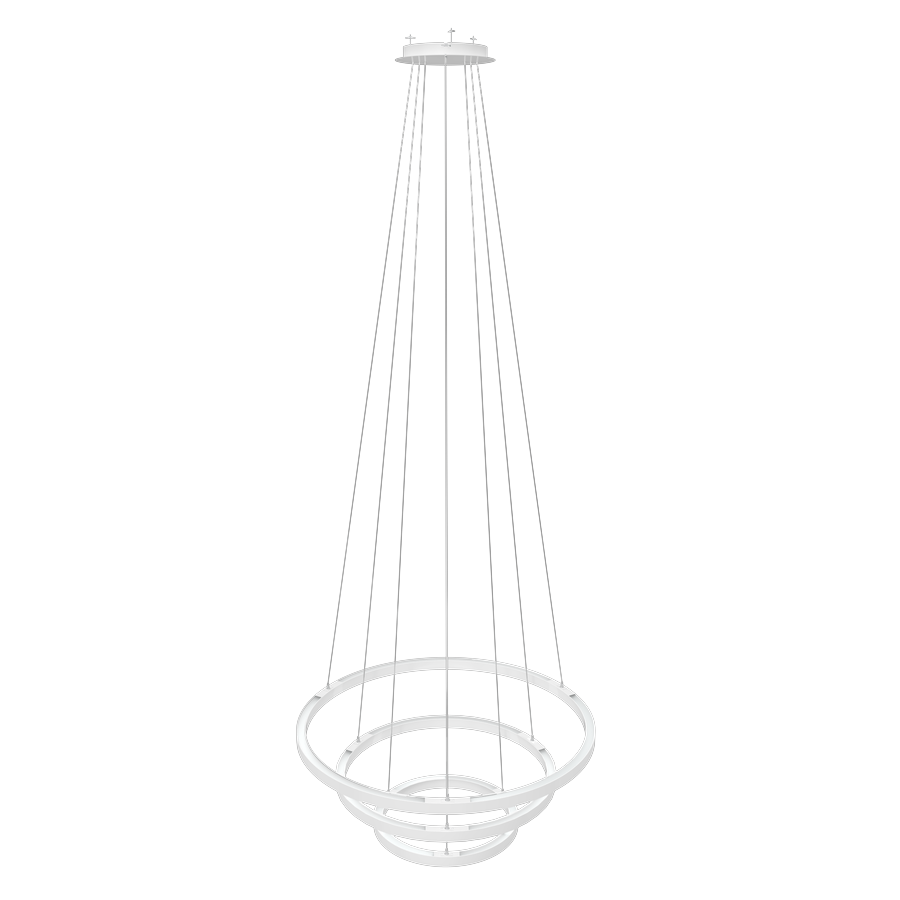

BRG432UW

180W 3000/3500/4000K

100,000-Hour LED lifespan

0-10V dimming

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	180W
Color Temp	3000/3500/4000K
Lumens	22150-22660 lm
Efficacy	126.5-132.6 lm/W
Color Accuracy	92-94 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.47A
208V	0.85A
240V	0.73A
277V	0.67A
Input Watts	170.9-175.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 74.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
180W
5 Power Preset:
100%/0% (Downlight Only)
70%/30%
60%/40%
50%/50%
0%/100% (Uplight Only)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 3500K)

Compliance

UL Listed

Suitable for dry/damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

IP20

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

1 kV L-L 2kV L/N-G

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Sheet metal and extruded aluminum

Reflector

Polyethylene Terephthalate (PET)

Lens

Frosted polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
