• Replaces 250W MH Floodlights
  • NEMA Type 6H x 4V ideal for signage & facades
  • Ultra-low field-to-beam ratio concentrates light where it's required
  • Microprismatic diffusion lens optimizes light output without glare
  • Superior thermal management with patent-pending "Airflow" technology
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 78W
Color Temp 5000K (Cool)
Lumens 9,784 lm
Efficacy 109.6 lm/W
Color Accuracy 70 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.82A
208V 0.53A
240V 0.46A
277V 0.40A
Input Watts 89.3W
Dimensions

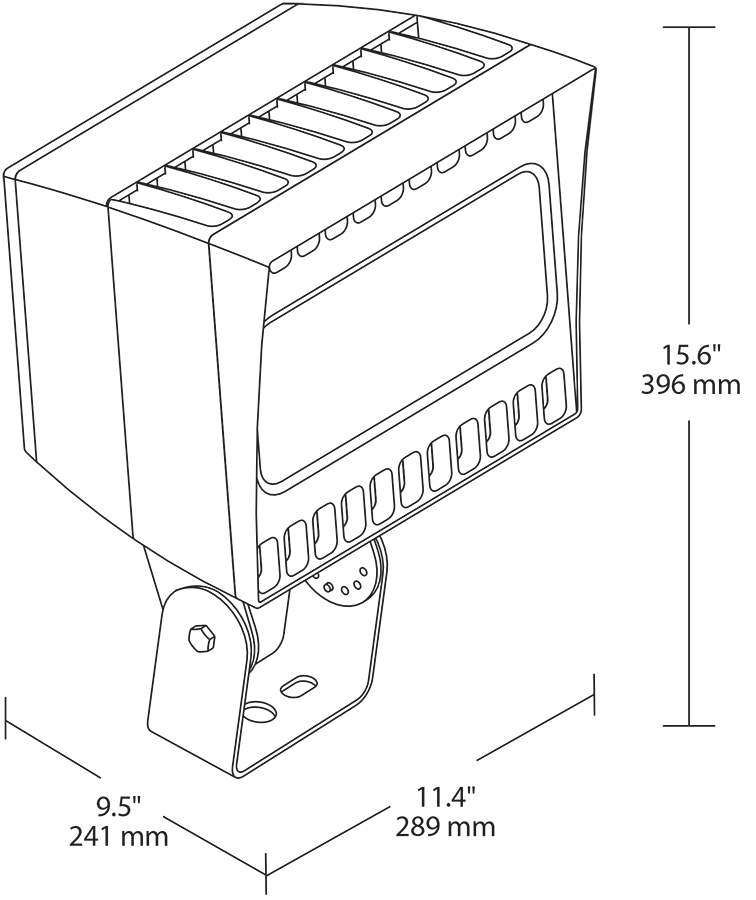

Link to Dimension Drawing

Weight: 27.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
Construction
Effective Projected Area
EPA = 1.2
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Drivers
Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 99.2%
