CD34LENS-6FRW

Spec Sheet Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

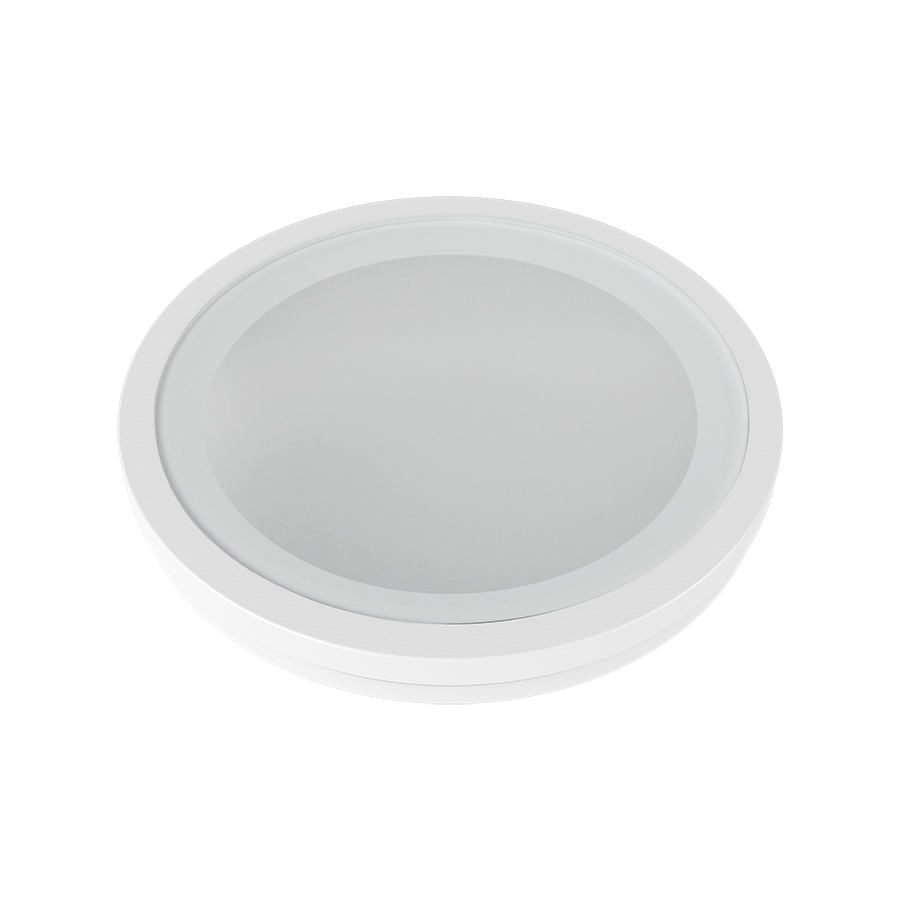

CD34LENS-6FRW

Aluminum extrusion housing and die-cast covers available in black, bronze, or white

Field interchangeable optics sold separately for 25°/40°/60° beam angle

Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).

Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

Lens for CD34 Cylinders

Description

Field-swappable lenses and pendant mount accessories.

LED Characteristics

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Twist-on

Construction

Size

Shape

Round

Finish

White

Lens Finish

Frosted

Compliance

Certification Model Number

CD34LENS-6FRW

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

CD34 Cylinders
CD34-6WW
CD34-6WK
CD34-6WZ
CD34-6SPW
CD34-6SPK
CD34-6SPZ

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
