Performance
| Watts | 6W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 554-588 lm |
| Efficacy | 95.5-105 lm/W |
| Color Accuracy | 93-94 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.05A |
| 208V | 0.00A |
| 240V | 0.00A |
| 277V | 0.00A |
| Input Watts | 5.6-5.8W |

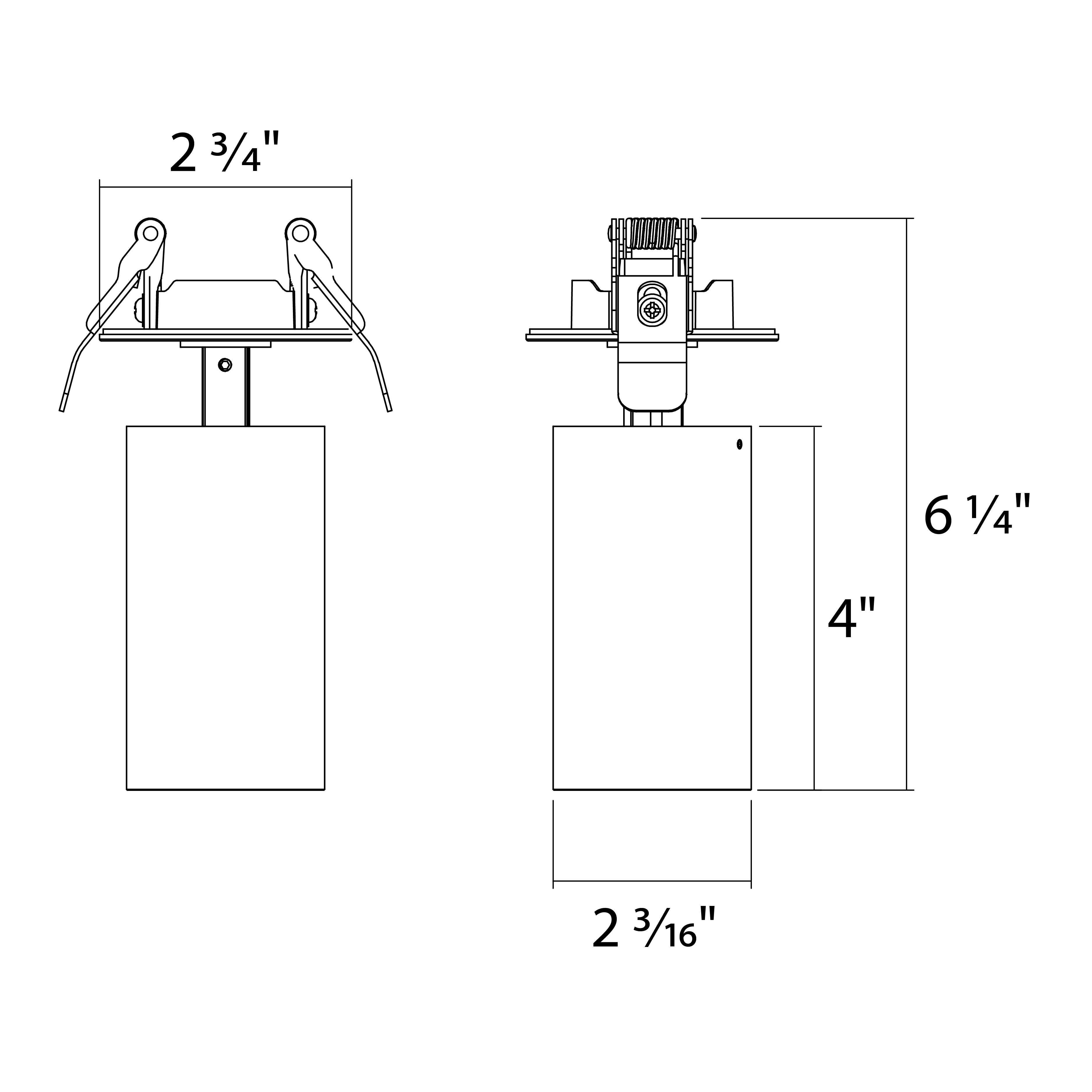

Dimensions
Weight: 0.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IP Rating
IP20
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Temperature
3000/4000/5000K CCT Adjustable
Electrical
Driver
Constant Current, Class 1, 120V, 60 Hz, 120V: 0.06A
Dimming Driver
120V TRIAC Dimmers
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ring Wave L-N:2.5 kV, LN-PE 2.5 kV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Reflector/Tray
Aluminum
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
Recessed Mount
Optical
Optics
36°
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
