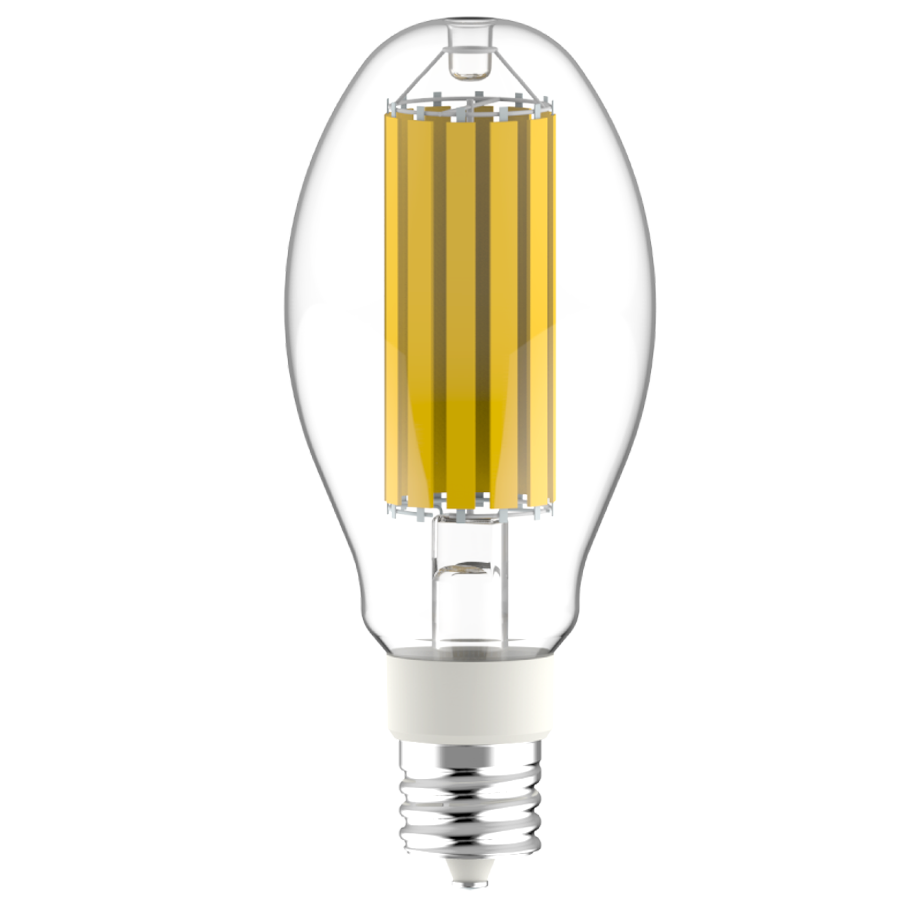

ED32-54-EX39-850-F-C

Spec Sheet IES File LM79 Instructions FCC Caution Sell Sheet Spec Sheet EZ Layout

Replaces traditional 300W Metal Halide

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in open and enclosed fixtures in dry, damp, or wet locations

Full glass design provides omnidirectional output

50,000-Hour lifespan

View Technical Specs

View Price & Availability

Performance

Watts	54W
Color Temp	5000K
Lumens	10,000 lm
Efficacy	185
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	N/A
THDi	<25%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

Filament HID Replacement

Description

Classic filament style lamp adds a decorative aesthetic to any post top, bollard, or cooridor application

Wattage Equivalency

300W Metal Halide

Input Wattage

54W

Lumens

10,000lm

Efficacy

185lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<25%

Power Factor

≥0.9

Dimmable

Yes

Dimming Type

TRIAC/ELV

Input Voltage

120-277V

Operating Frequency

60Hz

Input Current @ 120V (mA)

460mA

Input Current @ 208V (mA)

270mA

Input Current @ 277V (mA)

220mA

Operating Temperature

-13°F to 113°F (-25°C to 45°C)

Surge Protection

4kV

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 no less than 0

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Installation Method

UL Type B

Installation Orientation

Vertical

Base Type

EX39

Construction

Bulb Shape

ED32

Endcap Material

Nickel-Copper

Enclosure Material

Glass

Lens Finish

Clear

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use in dry, damp, and wet environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

Ingress protection rating of IP65 for dust and water

T20 Compliant

Not compliant

California Title 24 JA8 Compliant

Not Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Compatible Products

SP10KV
Surge Protector
XFMR200-480-277
Step Down Transformer 480V to 277V

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
