EVC48

Spec Sheet Instructions Sell Sheet Family Spec Sheet Spec Sheet

EVC48

View Technical Specs

View Price & Availability

Dimensions

Weight: 13.8 lbs

Technical Specifications

Product Overview

Product Type

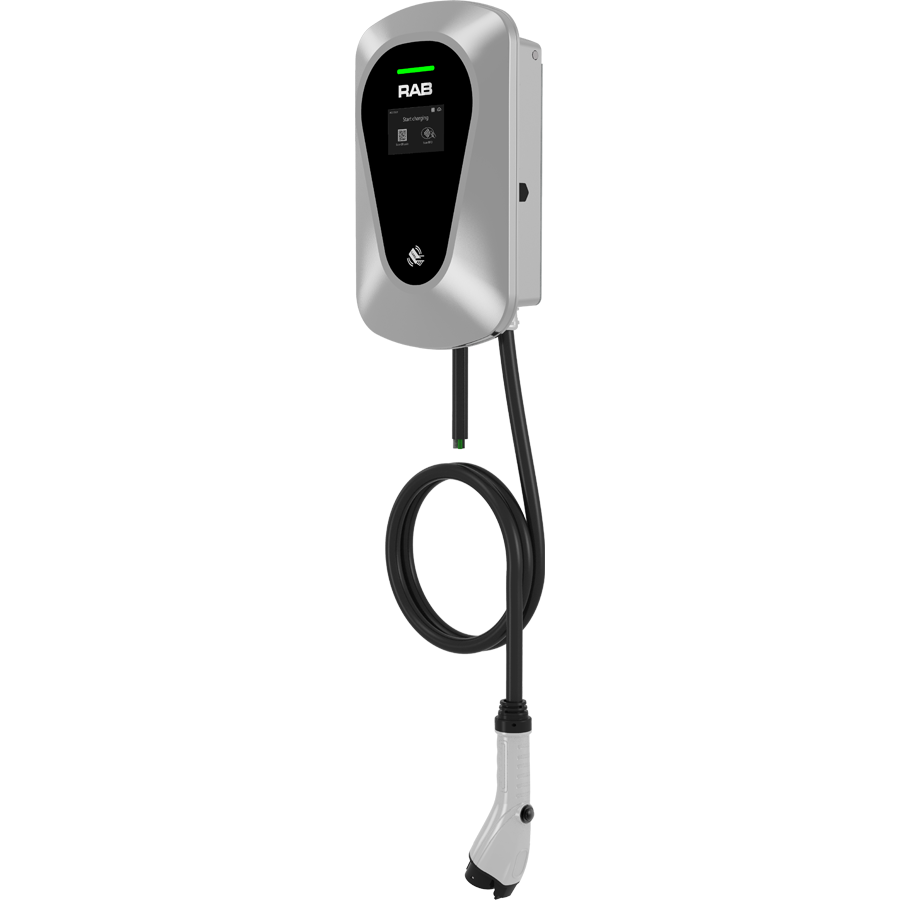

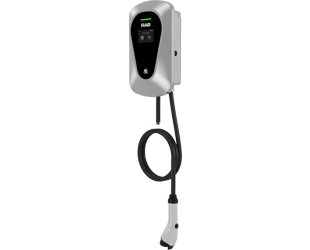

Level 2 EV Charger, 48A, Networked, with LCD Display

Description

48A / 11.5 kW residential/commercial charger: 4G networked, OCPP 1.6J protocol, 16.4' cord, 5" LCD display, configurable power, and ISO 15118 protocol

Application

Commercial & public use

Construction

Housing Material

Polycarbonate and tempered glass with gray & black finish

Cord & Nozzle

Single port, 18 ft cable with 6AWG guage. Comes with SAEJ1772 Type 1 nozzle

Display

4.3" LCD display with LED indcator Light

Tamper Resistant

IK08 rated to protect the unit against external mechanical impacts (not rated for the LCD display screen or RFID)

Ingress Protection

IP65 and NEMA Type 4

Mounting

Charger & nozzle holder can be mounted directly to a wall or used with compatible pedestal (sold separately)

Electrical

Input Voltage

200-240V, Single Phase

Input Current

48A

Output Current

48A (max) (with AC breaker capacity selection)

Operating Frequency

50/60Hz

Connector Type

SAE J1772

Humidity

Max 90%

Input Side Protection

Protection against leakage, over-voltage, over current, under-voltage, short circuit, over-temperature

Output Side Protection

Protection against leakage, over-voltage, over current, under-voltage, automatic full charge, control pilot fault, short circuit, over-temperature

Internal Protection

OTP, Relay Welding Detection, CCID Self-Test, MCU Function Fault Detection

Rating of Branch Circuit Breaker

60A

Performance

Output Power

11.5kW

Installation

Mounting Hardware Included

Yes

Other

Wiring

Hardwired

Input Wire Gauge

6 AWG

Compatible Accessories

EVP - Pedestal
EVM - Cable Management Add-On
EVR - Cable Management Retractor
EVPB - Side-By-Side Mounting Bracket

3-Year Limited Warranty

Electric Vehicle Charger products will be free from defects in materials and workmanship for a period of (3) years from the date of original sale to RAB's distributor. The product shall be considered defective only if it cannot be brought back to service by assistance from RAB technical product support representative. If you have a technical issue or question regarding warranty, call our technical support team at RAB Help line. Exceptions apply as stated on product specification sheets incorporated herein by reference. Defects in material or workmanship do not include improper installation or operation, alterations, power surges or overheating due to external conditions. Defects caused by acts of vandalism and incidents beyond control of manufacturer resulting in inoperability of the electric vehicle charger are not covered by the material or workmanship warranty.

Software Plan Options

ChargeLab CSMS: 1-year, 3-year, 5-year; RAB Lightcloud Charge: Free (Wi-Fi); Lightcloud Charge Cellular: 1-year

Concierge Provisioning

RAB pre-provisions software and SIM card before shipment — installer powers on device, site is live immediately

Hardware Technical Support

RAB technical support included

Driver Support

24/7 telephone support for EV drivers

Network & Connectivity

Communication Protocol

OCPP 1.6 JSON

Connectivity Type

Ethernet + Wifi (IEEE 802.11 b/g/n) + 4G

CSMS Platform Compatibility

RAB Lightcloud Charge
Chargelab CSMS
Additional software options available upon request

Remote Monitoring

Yes

OTA Firmware Updates

Included

Load Management

Charging Performance

Authetification Methods

Plug-and-charge, mobile app, QR code, RFID

Energy Monitoring

Yes

Marketing Accuracy

Meter IC (1% accuracy)

Enviromental Ratings

Operating Temperature

-22°F to 131°F (-30°C to 55°C)

Humidity

Max 85%

UV Resistance

Material complies with UL 746C F1 requirements for UV and water exposure

Enclosure Rating

NEMA 4X

Altitude Rating

≤2000m

Safety & Compliance

Safety Listings

ETL Listed

UL Standards

UL 2594, UL 2231

Shock Protection

CCID20. A charging circuit interrupting device (CCID) automatically interrupts the circuit when the current reaches or exceeds the threshold current of 20mA.

OpenADR

IP Rating

Ingress protection rating of IP65 for dust and water

NEMA Rating

Type 4, weatherproof protection

EnergyStar

Yes

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules
