EXITEDGE-1WPWRACH

Spec Sheet Instructions Spec Sheet

EXITEDGE-1WPWRACH

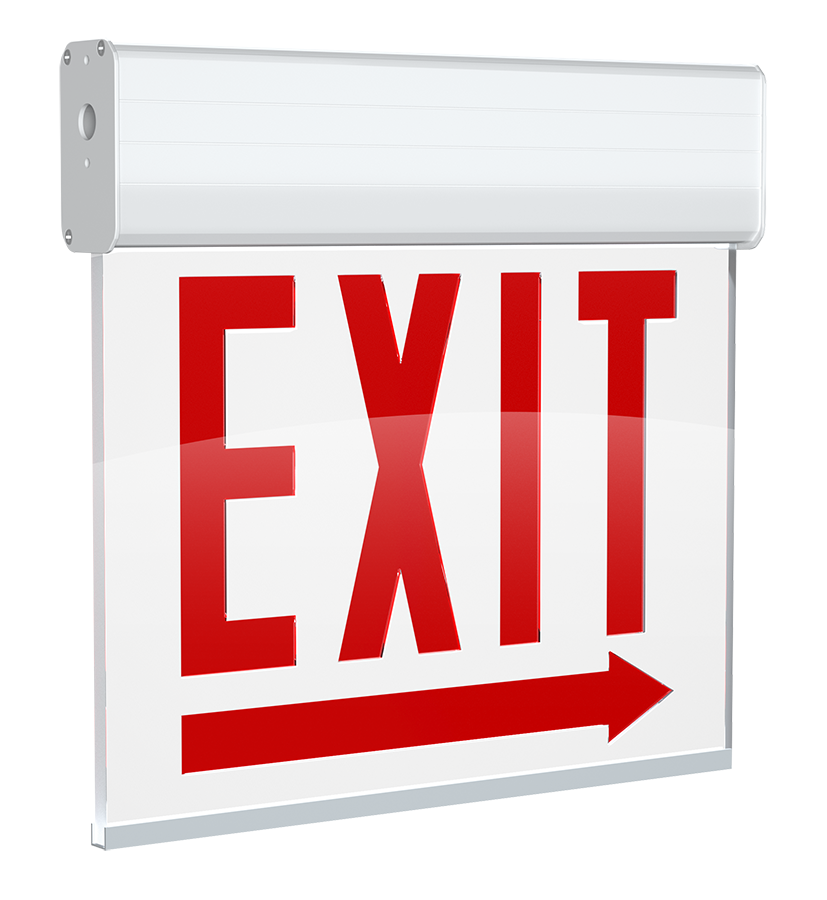

Chicago-approved single-face edge-lit exit sign

White acrylic panel with red letters

Aluminum housing in white or brushed aluminum finish

Surface or recessed mounting models

AC-only and 90-minute battery backup models available

View Technical Specs

View Price & Availability

Dimensions

Weight: 9.1 lbs

Technical Specifications

Performance

Product Type

Emergency Unit New York City Compliant

Description

New York City Approved Steel Emergency Unit

Input Power (W)

Lumens

65lm

Lumens (per fixture)

195lm

Electrical

Power Factor

0.8@120V; 0.6@277V

Input Voltage

Dual 120/277 Voltage

Frequencies

50/60 Hz

Input Current @ 120V (mA)

50mA

Input Current @ 277V (mA)

30mA

Maximum Output Current (Amps)

0.78A

Maximum Output Wattage

7.5W

Dual Voltage Circuit Operation

Operating Temperature

32°F to 122°F (0°C to 50°C)

Battery Type

Nickel Cadmium

Storage Temperature

68°F to 86°F (20°C to 30°C)

Storage Shelf Life

3 years before the initial charge. 5 years after initial charge.

Self Diagnostics

No, manual test only

Remote Test Switch

Emergency Characteristics

Emergency Illumination

90 minutes

Battery Voltage

9.6V

Recharge Time Required

24-hours

Battery Operating Temperature

0°F to 50°F (32°C to 122°C)

Installation

Mounting Method

Back/End

Mounting Type

Wall

Maximum Mounting Height (ft.)

10 ft

Emergency Egress Coverage(ft) Mounting at height of 7.5ft

12 ft x 3 ft mounted @ 7.5 ft

Spacing Criteria for Emergency Egress

24 ft on center assuming 7.5 ft mounting height with egress path 3 ft out

Cold Weather Rated

Construction

Shape

Rectangle

Housing Material

Steel Sheet

Housing Color

White

Remote Capacity

Yes

No. of Heads

3-Lamp Heads

Head Shape

Square

Remote Head Power (W)

Compliance

Listings

UL924 Listed

Environment

Suitable for indoor use in dry and damp environments

IP Rating

Indoor

Certification Model Number

PRLEDNYDXR-83

T20 Compliant

Not Title 20 Compliant

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

City Compliance

New York City Approved

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

EREMOTE-1
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
