EZPANFAHE2X2/D10/LCBS

Spec Sheet IES File LM79 Instructions Family Spec Sheet Spec Sheet EZ Layout

Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required

Use mobile device to configure features for On/Off Control, Dim Level, Schedules, Scenes, and more.

Field-adjustable light output and color temperature

Innovative use of edge lit technology for glare-free lighting

Best in class efficacy

View Technical Specs

View Price & Availability

Performance

Watts	40/30/20W
Color Temp	3500/4000/5000K
Lumens	3,600-5,500 lm
Efficacy	145
Color Accuracy	84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.32A
208V	0.20A
240V	0.19 A
277V	0.14A
Input Watts	40/30/20W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 8.0 lbs

Technical Specifications

Performance

Product Type

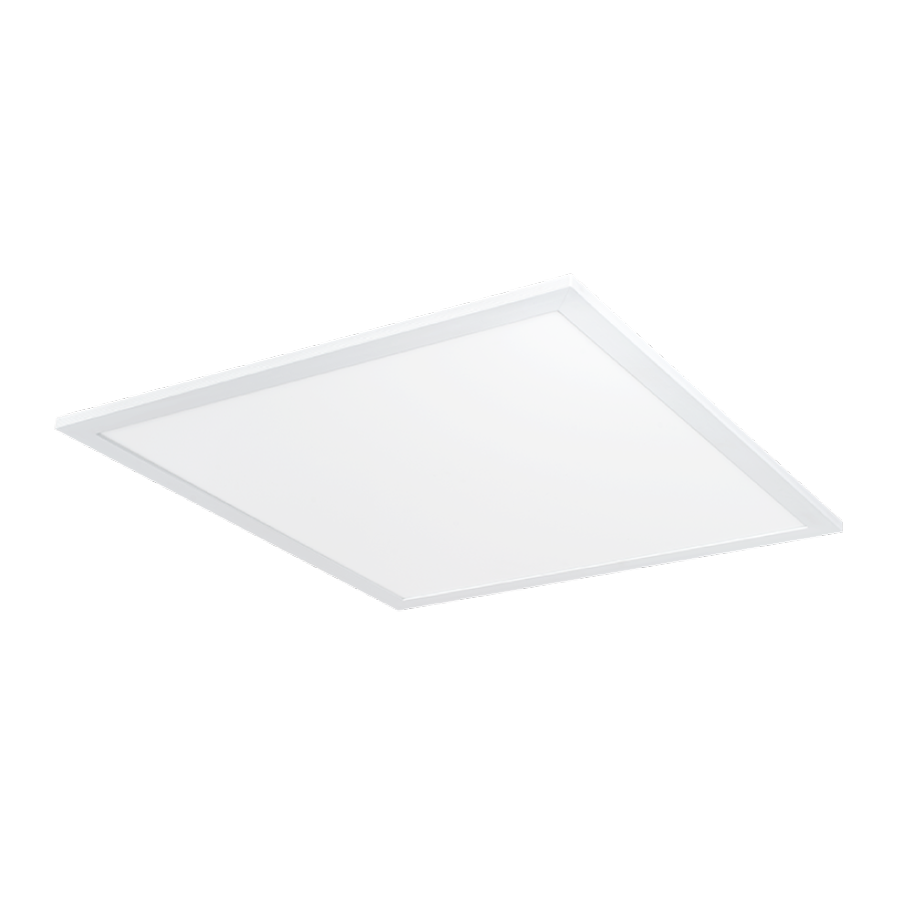

Edge-lit Flat Panel

Description

These edge-lit LED panel lights provide smooth and uniform light edge-to-edge for a clean, modern look.These panels are field adjustable wattage and color temperature with a high efficacy.

Wattage Equivalency

(4)F32T8 or (4)F28T5

Input Wattage

40/30/20W
Default setting: 40W

Lumens

20W
3500K @ 3,644lm; 4000K @ 3,789lm; 5000K @ 3,785lm
30W
3500K @ 4,183lm; 4000K @ 4,368lm; 5000K @ 4,346lm
40W
3500K @ 5,330lm; 4000K @ 5,582lm; 5000K @ 5,487lm

Efficacy

20W
3500K @ 137lm/W; 4000K @ 146lm/W; 5000K @ 142lm/W
30W
3500K @ 136lm/W; 4000K @ 146lm/W; 5000K @ 141lm/W
40W
3500K @ 133lm/W; 4000K @ 145lm/W; 5000K @ 138lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.lightcloud.com.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure tha the device is online and select 'Delete'.
Method 2: Manual
Press and hold down the button located at the top of the Controller for 10 seconds or until the fixture flashes on/off 3x. The Controller will flash red to confirm it has been reset and is ready to pair to the App

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, via the Lightcloud Blue mobile app and devices.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

0.32A

Input Current @ 208V (mA)

0.20A

Input Current @ 240V (mA)

0.19A

Input Current @ 277V (mA)

0.14A

Operating Temperature

-22°F to 104°F (-30°C to 40°C)

Flicker

<20%

Detection Range

20 ft diameter at 9 ft mounting height

Sensor Settings

Sensor Connection Type

RJ09

Sensor Technology

Passive Infrared (PIR)

Default Setting

Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off

Commissioned State:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off

Sensing Type

Occupancy or Vacancy

Sensor Sensitivity

Low/Medium/High

Occupied Actions

On or On at a Dim Level

Vacant Options

Off or On at a Dim Level

Occupancy Timeout

1 minute to 240 minutes

Daylight Sensing

The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.

Daylight Threshold

150 lux to 1500 lux

LED Characteristics

LEDs

Edge-lit long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color.

Color Temperature

3500/4000/5000K
Default Settings: 4000K

Color Accuracy (CRI)

84 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface Mount, Recessed
Standard integral T-bar clips secure the fixture to Tbars and prevent T-system separation.

Construction

Size

2'x2'

Shape

Square

Finish

White

Housing

Lightweight aluminum housing, steel pan and junction box.

Enclosure Material

Plastic

Lens

Frosted polystyrene

IC Rated

Suitable for direct contact with insulation

Certification Model Number

EZPANFAHE2X2/D10/LCBS

Compliance

Listings

UL Listed

Environment

Suitable for indoor use in dry and damp environments

Air Tight

Not compliant

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-O2SA70

DLC ID

S-O2SA70

T20 Compliant

Not applicable

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS Compliant

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
