GAMEB55/480/LC

Spec Sheet IES File LM79 Instructions Master Specification Features Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

GAMEB55/480/LC

100,000-Hour LED lifespan

IP65 rating protects against dust and water

DLC Premium listed

IK10 Rating

Industry-leading 3G vibration rating per ANSI C136.3110-Year, Limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	520W
Color Temp	5000K
Lumens	65,473 lm
Efficacy	129.5
Color Accuracy	82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V	2.52A
240V	2.19A
277V	1.89A
Input Watts	505.6W

EZ-Layout

Create Custom Lighting Layout

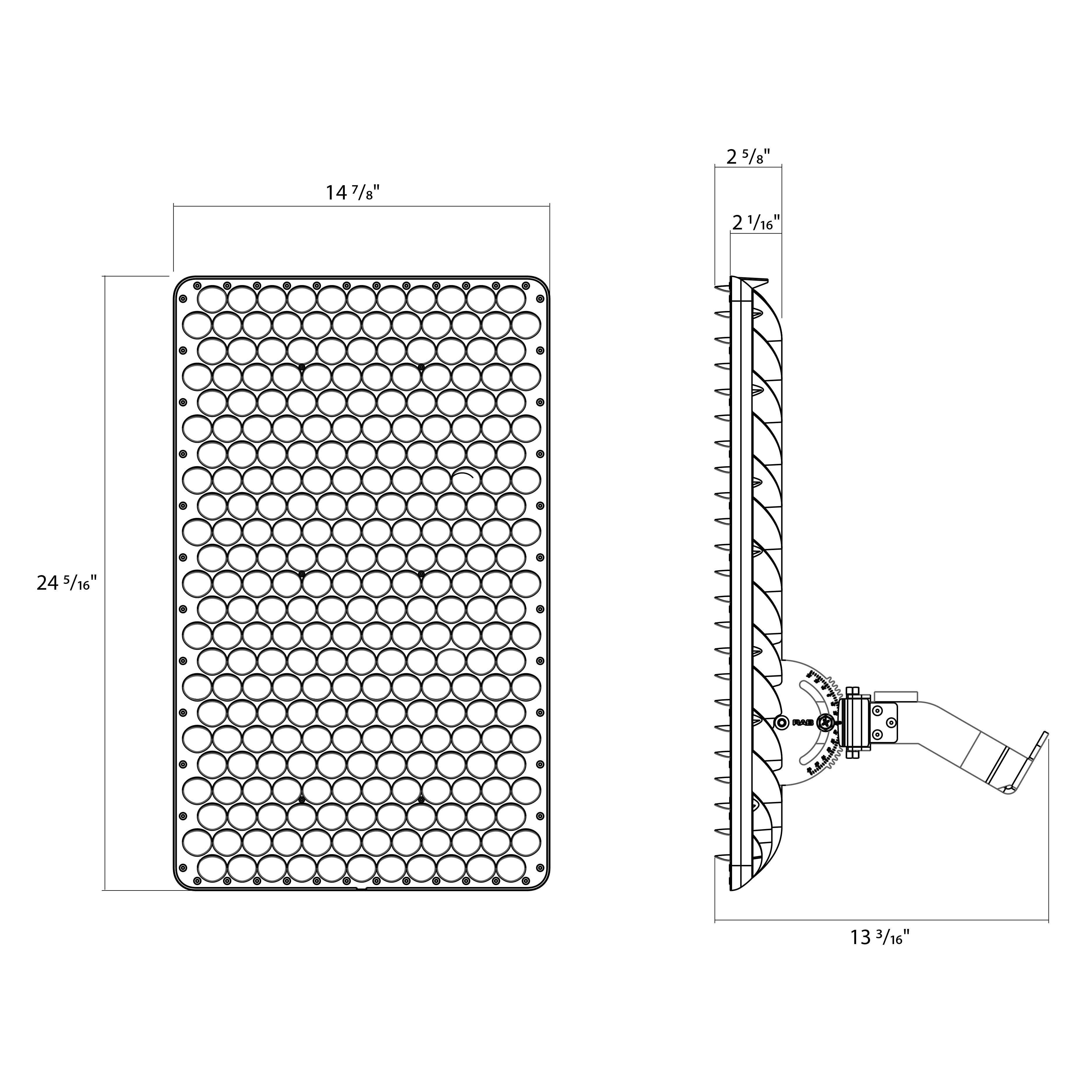

Dimensions

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Lightcloud

Lightcloud Controller

Lamp, Zone, and plug-load control from one powerful device. Capable of switching, wireless dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 1, 208-480V, 50/60 Hz, 208V: 2.52A 240V: 2.19A, 277V: 1.89A, 480V: 1.09A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

Surge Protection

20 kV

Aux Power Supply

Yes

Dim to Off

Yes

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

IK Rating

IK10 Protected against 20 joules impact. Equivalent to impact of 11 lbs (5kg) mass dropped from 15.8" (400mm) above impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum

Lens

Polycarbonate lens

Vibration Rating

3G vibration rating per ANSI C136.31

Tilt Increment

Continuous tilting with 5° increments

Reflector

Polyethylene Terephthalate (PET)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Optical

NEMA Type

NEMA Beam Spread 5H x 5V

Installation

Mounting

Trunnion mount with stainless steel hardware

Other

10-Year Limited Warranty

The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
