GLW/LCB

Spec Sheet Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

GLW/LCB

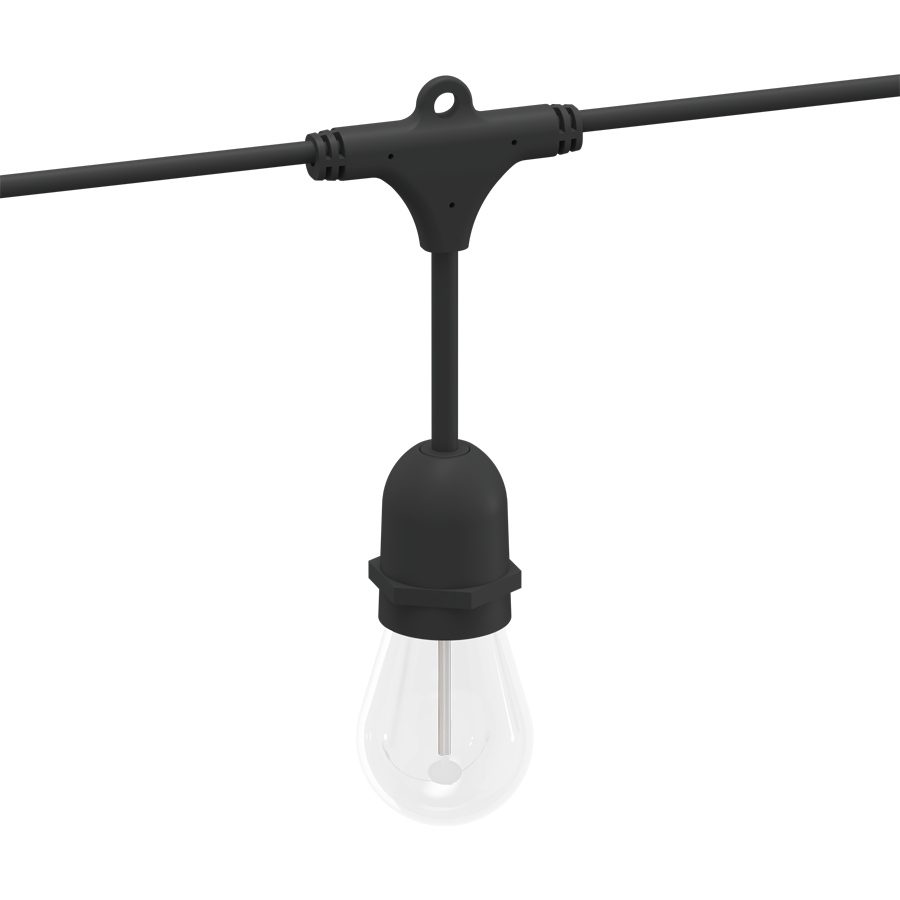

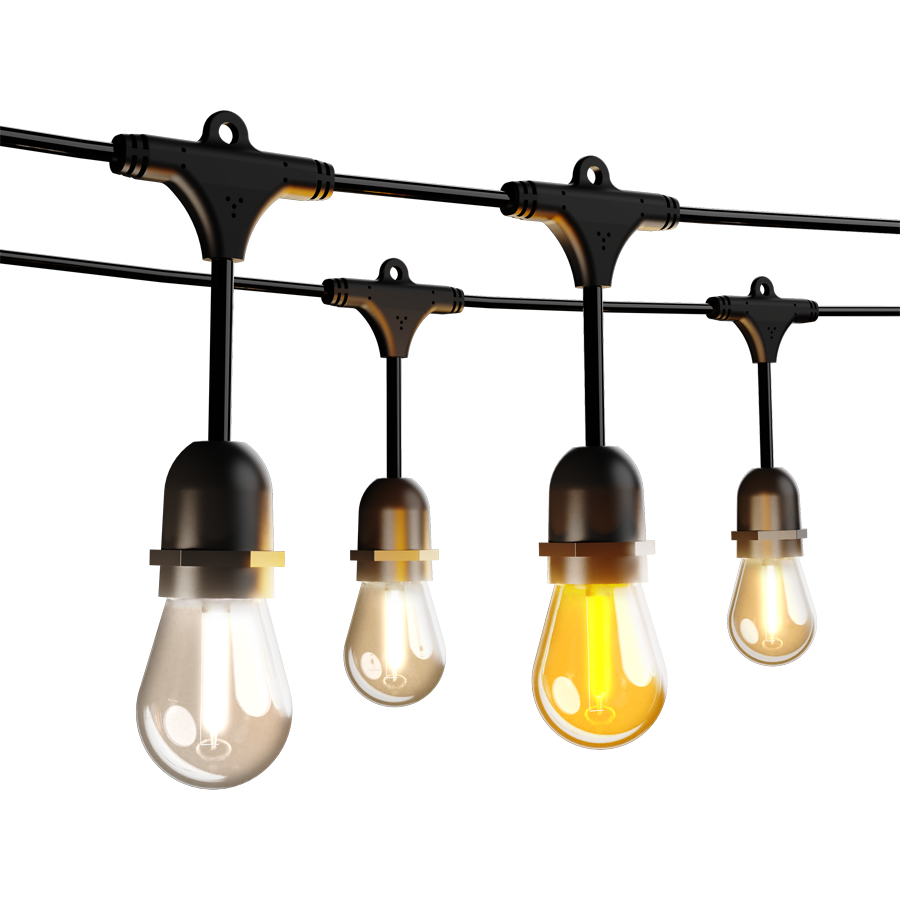

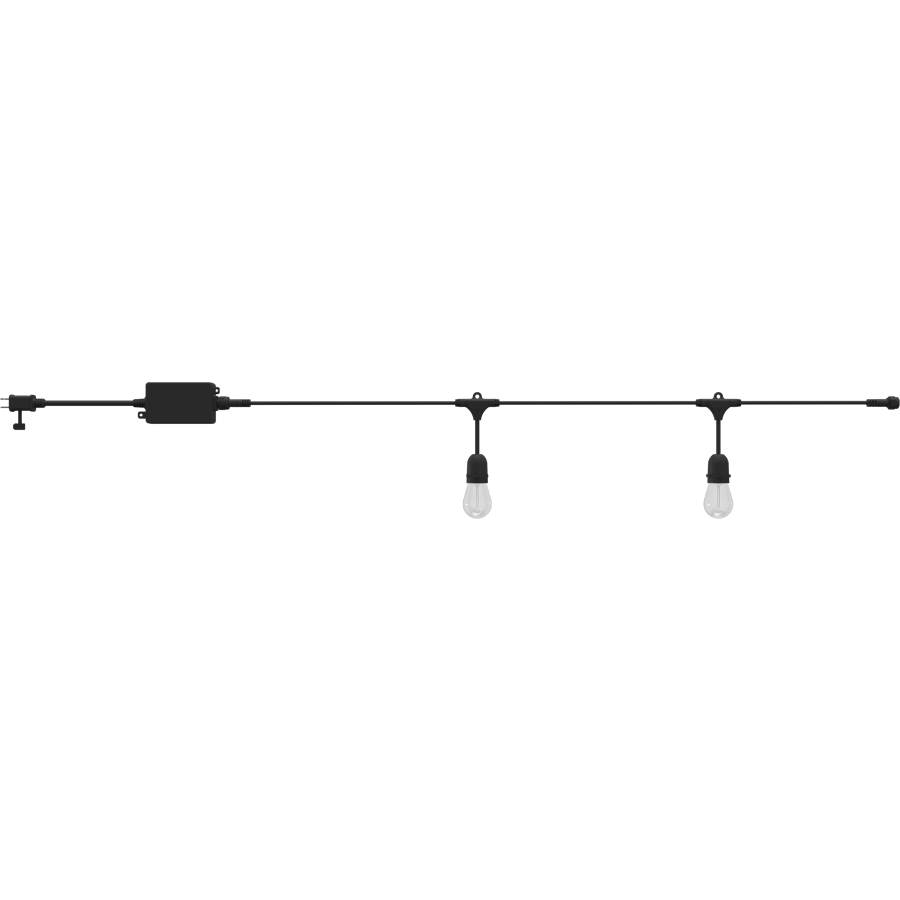

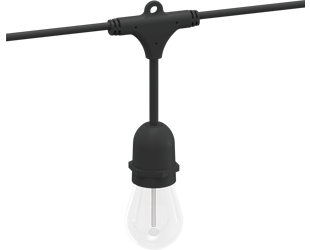

50 ft Decorative string with 24 S14 filament bulbs

Linkable up to 150 ft maximum run

Bluetooth mesh control on Lightcloud Blue models

Simple plug-and-play installation, no wiring required

Ideal for patios, restaurants, events, and retail spaces

View Technical Specs

View Price & Availability

Performance

Watts	23W
Color Temp	Tunable White 1800-5000K
Lumens	610 lm
Efficacy	27
Color Accuracy	>80 CRI
L70 Lifespan	15,000 Hours

Type
120V
208V
240V
277V
Input Watts	23W

Dimensions

Weight: 8.2 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Gateway Required

Communication Protocol

Bluetooth Mesh

SmartShift

SmartShift Ready to easily configure automated lighting profiles to automatically adjust brightness and color temperature for circadian and aesthetic needs.

Light Shows

No, this product is not compatible with dynamic color changing Light Shows. Contact RAB for more information.

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

Sensor Settings

Remote Control Accessory

Yes, with additional devices, sold separately. Small projects use Nano to link with Amazon Alexa or Google Home for wireless control using those apps. Larger projects require one XDIM Bridge per Area plus a Gateway for full remote access via Lightcloud web portal or mobile app.

Performance

Product Type

Decorative String Light, Smart

Description

Flexible 50 ft string lights with filament-style bulbs, linkable to 150 ft, tunable white using Lightcloud Blue

Input Wattage

23W

Lumens (Nominal)

610lm

Efficacy

27lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Voltage, Class 2 120-277V 50/60; 120V: 210mA; 208V: 123mA; 240V: 107mA; 277V: 92mA

THD

<20%

Power Factor

0.9

Dimmable

Yes, using Lightcloud Blue. This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Construction

Operating Temperature

-4°F(-20°C) to 104°F (40°C )

Length

50 ft

Bulbs per String

Max Run Length

150 ft

Shape

S14

Finish

Black cord with clear filament style bulbs

Enclosure Material

Glass

Lens Finish

Clear

LED Characteristics

Beam Angle

120°

Color Temperature

Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 1800 - 3000K

Color Tuning

Color Accuracy (CRI)

>80 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 0

Color Consistency

<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Plugs into a standard 15A 125V duplex receptacle

Base Type

NEMA 1-15, 2-prong plug

Replaceable Bulbs

Individual bulbs are not replaceable

Compliance

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Certification Model Number

GLW/LCB

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

EXTCBL-GLW/LCB
25 ft. Extension cable

Compatible with other Lightcloud Blue Devices for scalable control.

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
