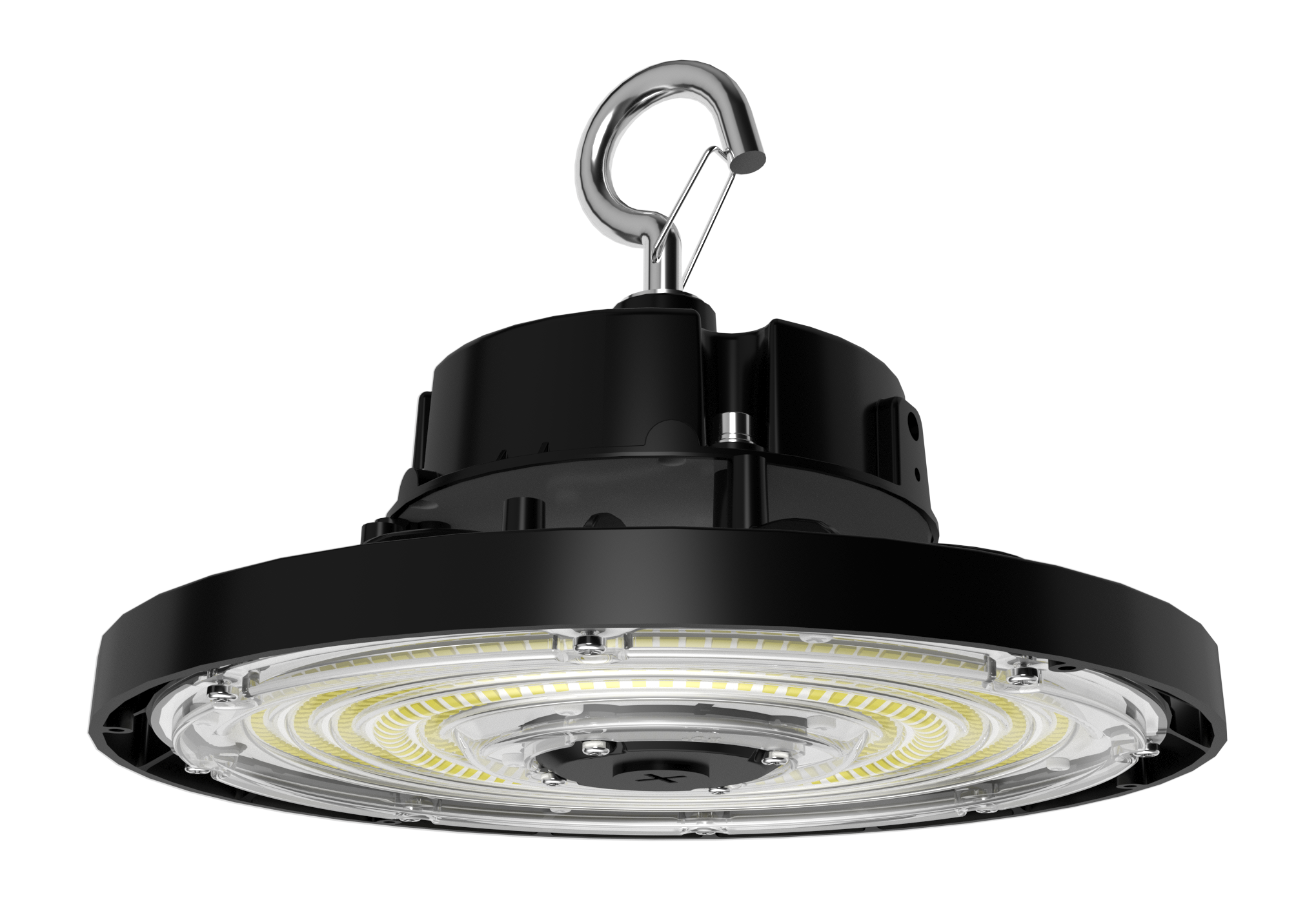

H17B/480
H17B/480
150W 3000/4000/5000K
- DLC Premium listed
- 100,000-hour LED Life
- 0-10V dimming standard
- 5-Year, limited warranty
Performance
| Watts | 150/120/100W |
| Color Temp | 3000/4000/5000K |
| Lumens | 14,643-22,999 lm |
| Efficacy | 135-160.8 lm/W |
| Color Accuracy | 80-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 99-153W |

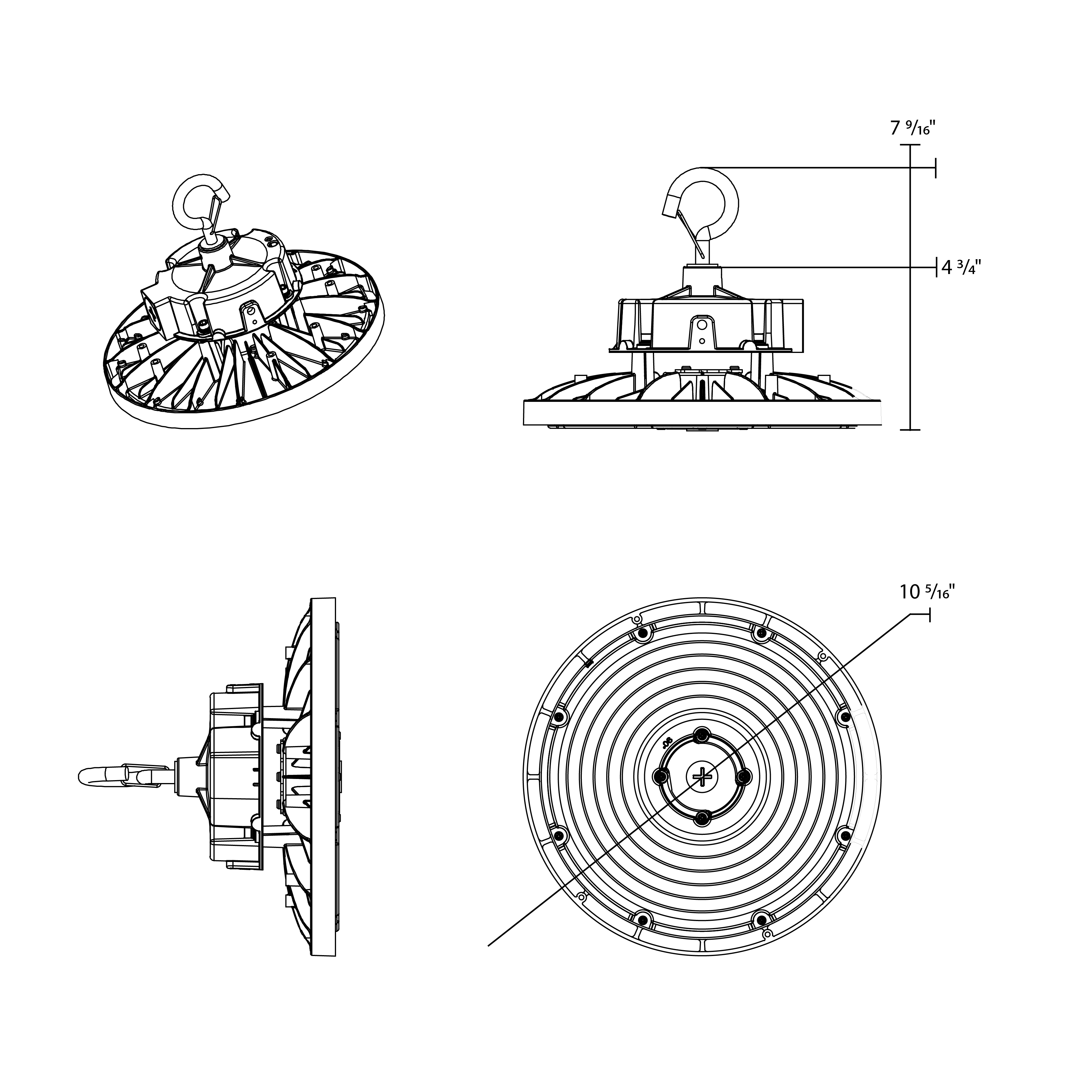

Dimensions
Weight: 4.7 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
150W/120W/100W (factory default 150W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
150W/120W/100W (factory default 150W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Certification Model Number
H17-002
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class II, 480V, 50/60 Hz:
150W: 480V: 0.31A
120W: 480V: 0.25A
100W: 480V: 0.21A
150W: 480V: 0.31A
120W: 480V: 0.25A
100W: 480V: 0.21A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
10.14% at 480V
Power Factor
93.8% at 480V
Surge Protection
L-N: 4 kV
L/N-PE: 6 kV
L/N-PE: 6 kV
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 57°C (135°F)
Low Power Temp Rating: 63°C (145°F)
Middle Power Temp Rating: 57°C (135°F)
Low Power Temp Rating: 63°C (145°F)
Housing
Precision die-cast aluminum
Lens
Polycarbonate lens
Reflector
Polycarbonate and Aluminum (Reflector Accessories Sold Separately)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Comes standard with a hanging hook and 6-foot cord for hook mounting only. Pendant mounting requires the H17-PM KIT accessory (sold separately) — the fixture cannot be pendant mounted without it. The H17-PM KIT connects the fixture to a 3/4" NPT pendant mount (pendant by others).
Other
Compatible Products
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
