• Class 1, Division 2, Groups A, B, C, D
  • Class II Division 1 (Groups E, F, G)
  • Class II Division 2 (Groups F, G)
  • Class III
  • IP66 Rating protects against dust & water ingress
  • 100,000-Hour LED lifespan
  • 5-Year, no-compromise warranty
View Technical Specs
Performance
Watts 150W
Color Temp 5000K
Lumens 18,745 lm
Efficacy 120.8
Color Accuracy 78 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.29A
208V 0.72A
240V 0.63A
277V 0.56A
Input Watts 155.2W
Dimensions
Link to Dimension Drawing

Weight: 19.8 lbs

Technical Specifications
Hazardous Location Classifications
Class I Division 2 (Groups A, B, C, D)
Class I: A hazardous location in which flammable gases or vapors may be present in the air in sufficient quantities to be explosive or ignitable, such as petroleum refineries, aircraft hangars, dry cleaning plants, utility gas plants or storage areas for liquified petroleum or natural gas, and spray finishing areas.
Division 2: Abnormal condition, where ignitable concentrations of flammable gases, vapors or liquids are not like to exist under normal operating conditions, for example:Closed storage drums containing flammable liquids in an inside storage room would not normal allow the hazardous vapors to escape into the atmosphere. But if one of the containers is leaking, you've got an abnormal condition.
Group A - The only substance in group A is acetylene because it is a gas with extremely high explosion pressures.
Group B - This group includes hydrogen and other materials with similar characteristics.
Group C & D - The most usual Class 1 groups. They comprise the greatest percentage of all Class I hazardous locations. Found in Group C is ethylene. Found in Group D are many of the most common flammable substances such as butane, gasoline, natural gas and propane.
Class II Division 1 (Groups E, F, G)
Class II: Combustible dust may be present
Division 1: Ignitable concentrations of hazards exist under normal operation conditions and/or where the hazard is caused by frequent maintenance or repair work or frequent equipment failure
E: Combustible metal dusts: aluminum, commercial alloys and magnesium
F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts
G: Other combustible dusts: Chemicals, flour, grain, plastic and wood
Class II Division 2 (Groups F, G)
Class II: Combustible dust may be present
Division 2: Ignitable concentrations of hazards exist under abnormal operation conditions
F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts
G: Other combustible dusts: Chemicals, flour, grain, plastic and wood
Class III
Class III: Easily ignitable fibers or flyings may be present
UL 844
Electric lighting fixtures for use in hazardous (classified) locations
UL 1598
Electric lighting fixtures for use in non-hazardous locations
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-P0G4Y3
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 120V-277V, 120V: 1.29A, 208V: 0.72A, 240V: 0.63A, 277V: 0.56A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.91% at 120V, 8.85% at 277V
Power Factor
99.8% at 120V, 97.5% at 277V
Surge Protection
L-N:4KV
L/N-FG:6KV
Construction
Cold Weather Starting
The minimum starting temperature is Ta = -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to Ta = 55°C (131°F)
Housing
Die-cast aluminum
Lens/Globes
Frosted flat glass lens
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Surface and pendant mount. Remove yoke for pendant mount.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Optical
BUG Rating
B2 U0 G1
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

 This is a link to the product SWISH2X2-19YN/D10 SWISH2X2-19YN/D10
Panels & Troffers 2676 Lumens Swish2X2 19W 3500K 0-10V Dimming 120V-277V
 This is a link to the product ARBAY4-315/LC/E2/SP10 ARBAY4-315/LC/E2/SP10
Aerobay 4Ft 315W 5000K Dimmable 120-277V Lightcloud Controller Battery 10Kv Sp White
 This is a link to the product ALED5T52RG/480 ALED5T52RG/480
Area Lights 6624 Lumens Aled Type V 52W 5000K 480V Pole Mount Roadway Gray
 This is a link to the product SWISH2X4-39YN/D10/CP SWISH2X4-39YN/D10/CP
Panels & Troffers 5334 Lumens Swish2X4 39W 3500K 0-10V Dimming 120V-277V Chicago Plenum Compliant
 This is a link to the product GN1LED13YSST11R GN1LED13YSST11R

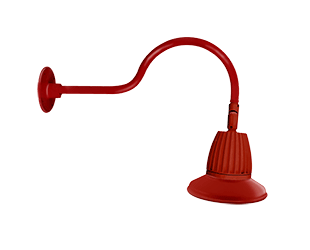

Decorative 689 Lumens Gooseneck 13W 3000K 24 Inches Arm Straight Shade Spot Reflector 11 Inches Red
