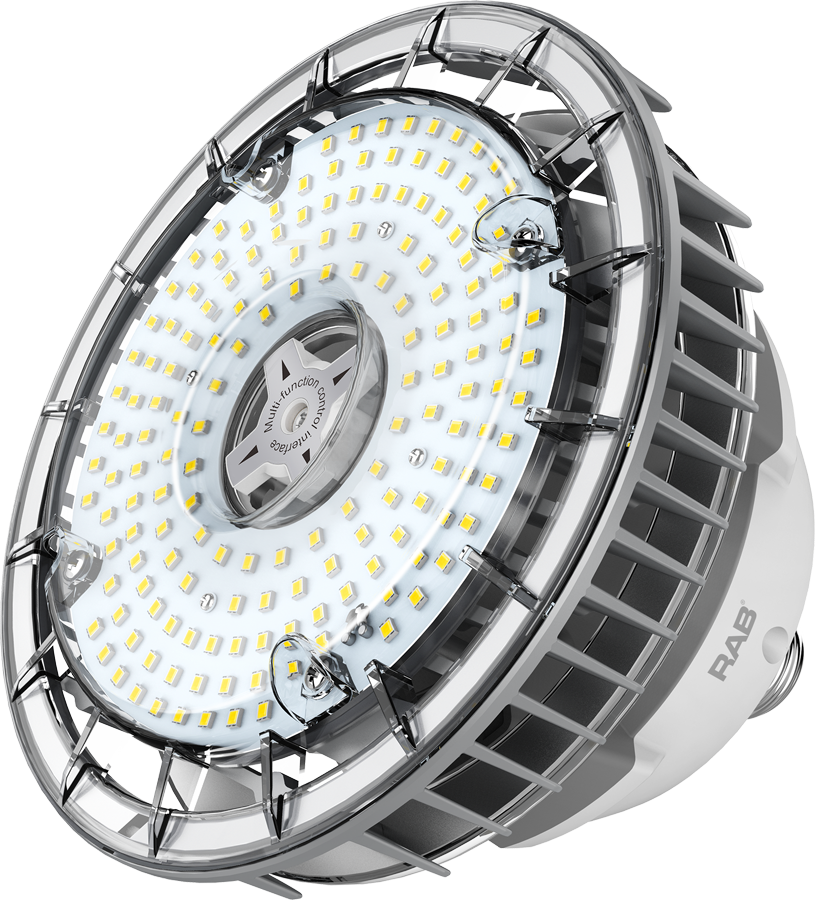

HID-60-V-EX39-850-BYP-HB-G2

Spec Sheet Dimmer Compatibility List Sensor Compatibility List Instructions FCC Caution Spec Sheet

Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps

Produces 10% uplight

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in enclosed and open fixtures in dry or damp locations

4kV surge protection built in

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, UL Classifed, DLC Listed

5 Year No Compromise Warranty

Lamp includes on board low-voltage AUX port for lamp level sensor accessories

Compatible with RAB specified 0-10V dimming system

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp	5000K (Daylight)
Lumens	8,000 lm
Efficacy	133.3 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	0.9
Flicker	<30%
THDi	N/A

Dimensions

Weight: 2.3 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

60W

Wattage Equivalency

200W HID

Lumens

8,000lm

Efficacy

133lm/W

L70 Lifespan

50,000 Hours

Dimming

Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on Legrand RH4FBL3PTC 0-10V dimming system.

Construction

Shape

High Bay

LED Characteristics

Color Temperature

5000K Daylight

Color Accuracy (CRI)

80 CRI

Installation

Base Type

EX39

Installation Type

Type B, Ballast Bypass

Installation Orientation

Vertical

Electrical

THD

<20%

Power Factor

>0.9

Operating Temperature

-30°C to 60°C

Input Voltage

100-277V

Operating Frequency

50/60Hz

Input Current @ 120V

0.67mA

Flicker

<30%

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

UL Classified

Yes

Certification Model Number

H20008

California Energy Commission (CEC) Status

Lawful for Sales in California

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
