HIDFA-120S-EX39-8CCT-BYP
HIDFA-120S-EX39-8CCT-BYP

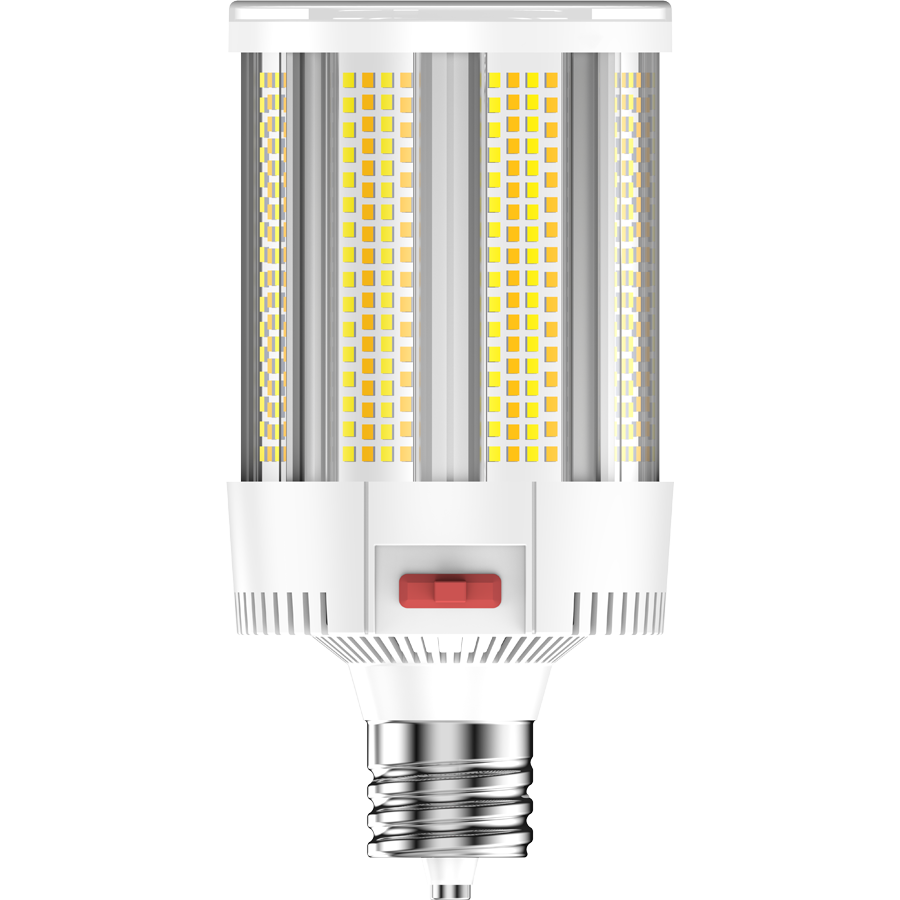

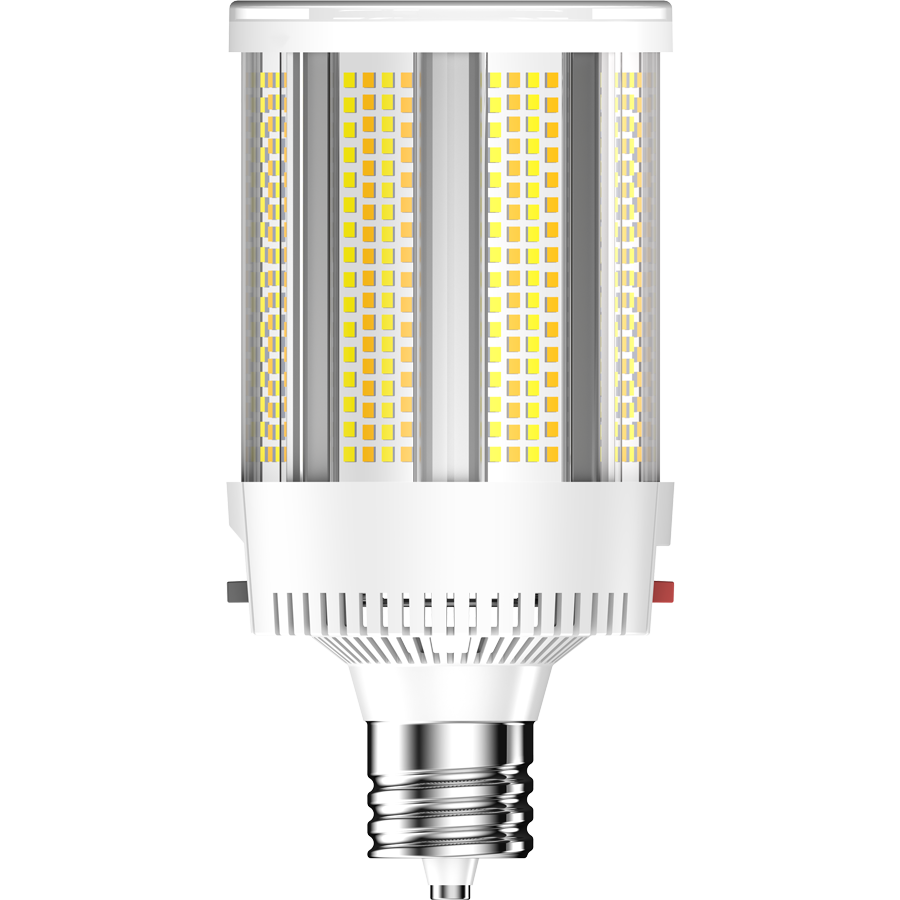

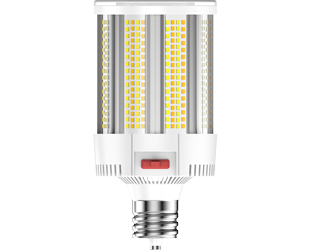

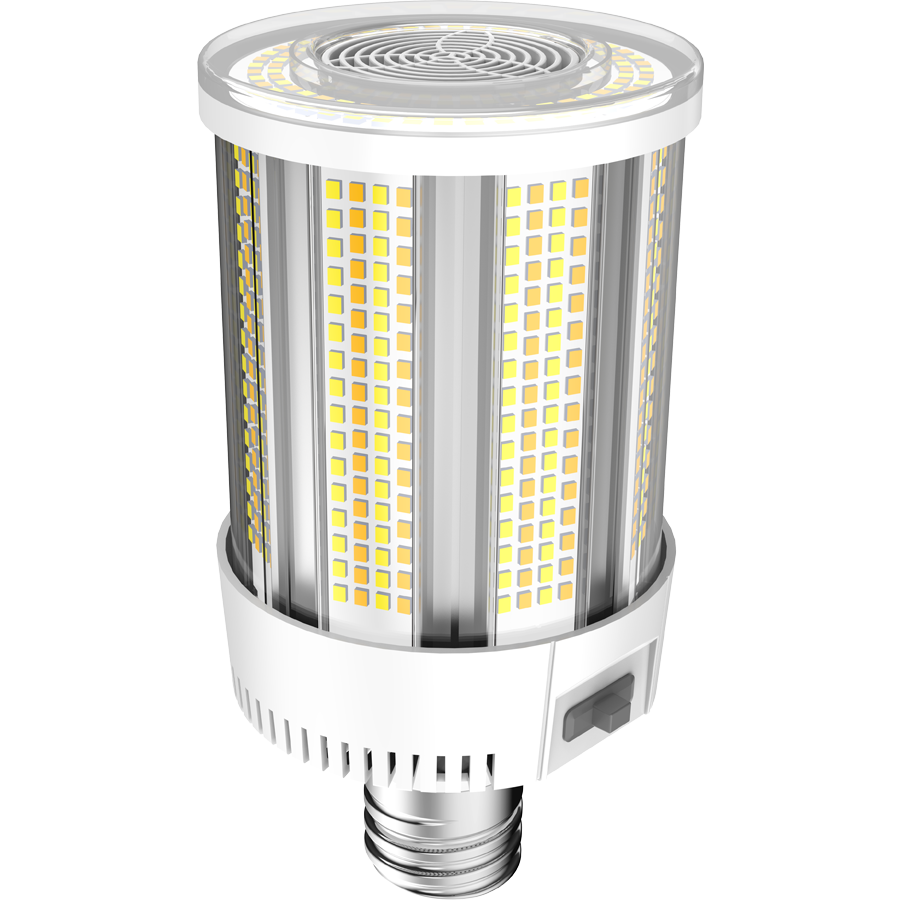

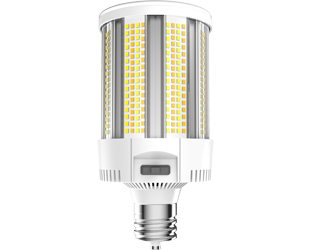

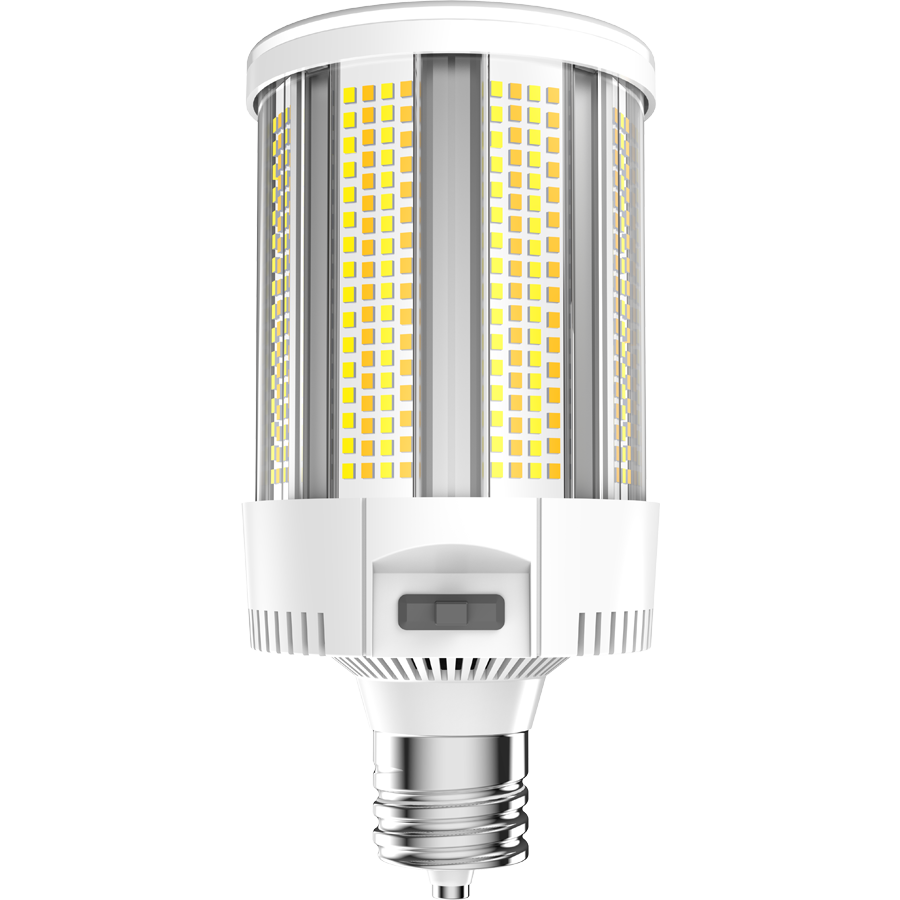

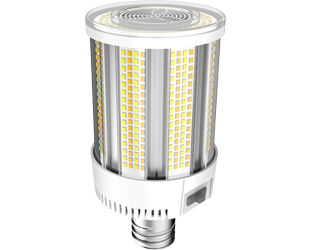

- Active cooling allows for lamp sizes that are up to 30% smaller, allowing them to fit into tight spaces while more accurately mirroring the traditional ANSI footprint.
- Lumen and CCT selectable via physical controls located on the lamp
- Rated for open and enclosed fixtures with an IP64 listing and polycarbonate lens
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- 3000/4000/5000K Selectable color temperature
Performance
| Watts | 120/90/60WW |
| Color Temp | |
| Lumens | 9,633-19,508 lm |
| Efficacy | 160 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | 0.9 |
| Flicker | <50% |
| THDi | N/A |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Performance
Product Type
Post Top
Description
These active cooling post top lamps include field-adjustable wattage and CCT, and are available in 120-277V and 277-480V versions. With SKUs from 10W to 450W, this comprehensive family offers a true LED retrofit for existing 1500W HID lamps. Additionally, the active cooling feature allows these lamps to more accurately mirror the ANSI retrofit footprint that they're intended to retrofit, allowing for the reduction in overall length.
Lumens
120W
18,152lm @ 3000K; 19,456lm @ 4000K; 19,508lm @ 5000K
9 90W
14,215lm @ 3000K; 15,119lm @ 4000K; 15,099lm @ 5000K
60W
9,633lm @ 3000K; 10,069lm @ 4000K; 10,153lm @ 5000K
18,152lm @ 3000K; 19,456lm @ 4000K; 19,508lm @ 5000K
9 90W
14,215lm @ 3000K; 15,119lm @ 4000K; 15,099lm @ 5000K
60W
9,633lm @ 3000K; 10,069lm @ 4000K; 10,153lm @ 5000K
Efficacy
160lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
20%
Power Factor
≥0.9
Dimmable
Step Dimming
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
1,200mA
Input Current @ 208V (mA)
632mA
Input Current @ 240V (mA)
550mA
Input Current @ 277V (mA)
476mA
Operating Temperature
-40°F to 122°F (-40°C to 50°C)
Flicker
<50%
Surge Protection
4 kV
LED Characteristics
Beam Angle
280°
Color Temperature
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
83 CRI
R9 Value
High color performance with R9 greater than 14
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Universal Installation
Base Type
EX39 Exlusionary Mogul
Construction
ANSI Size
ED28
Endcap Material
Metal
Enclosure Material
UV Resistant Polycarbonate housing
Lens Finish
Clear
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP54
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
H20047(HIDFA-120S-EX39-8CCT-BYP)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
