IVAT5S-130LPA740ZU
IVAT5S-130LPA740ZU large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 117W
Color Temp 4000K (Neutral)
Lumens 13,357 lm
Efficacy 116.2 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.00A
208V 0.58A
240V 0.50A
277V 0.43A
Input Watts 114.9W
Dimensions
Link to Dimension Drawing

Weight: 19.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-YUA26P
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.52% at 120V, 6.58% at 277V
Power Factor
99.9% at 120V, 96.9% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs

Recently Viewed Products

This is a link to the product IVAT5S-130LPA740ZU IVAT5S-130LPA740ZU
Area Lights 13357 Lumens Ivat5S Type V Square 117W Universal Pole Mount 70Cri 4000K Bronze 120V-277V 0-10V Dimming

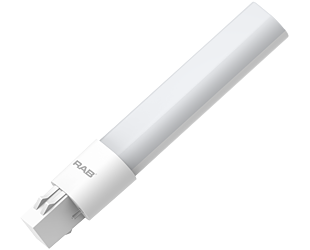

This is a link to the product PLS-5.5-H-850-HYB PLS-5.5-H-850-HYB
