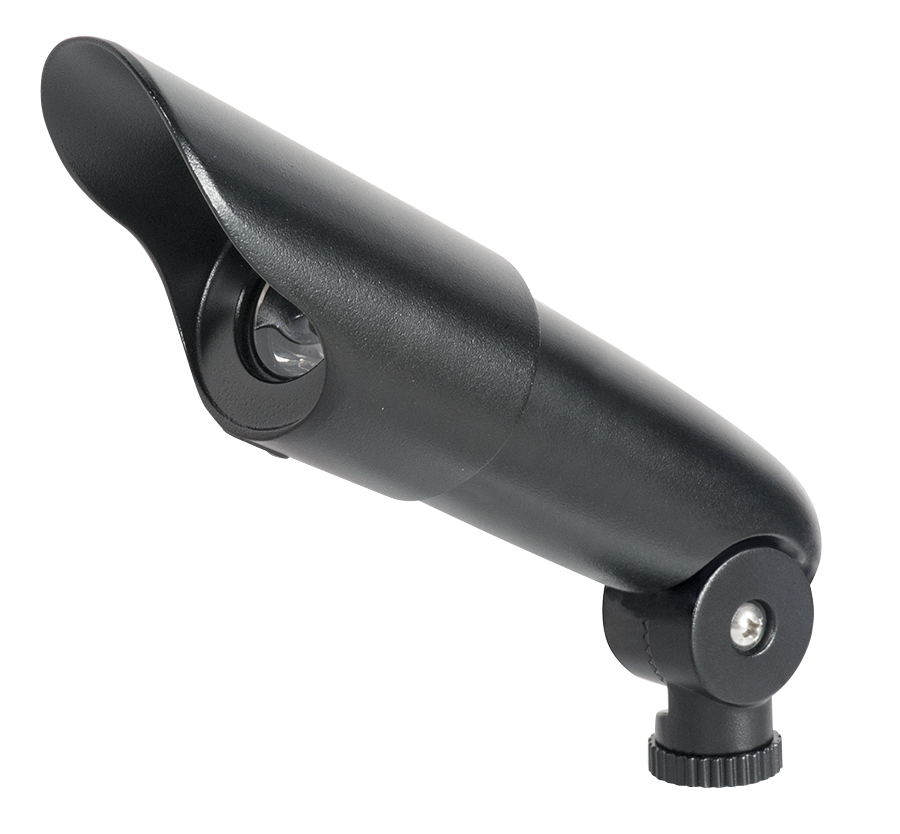

LFLED6LVYYB

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

LFLED6LVYYB

Compatible with 12VAC systems

Includes 8" ground spike

100,000-Hour lifespan

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	2700K (Residential Warm)
Lumens	226 lm
Efficacy	35.9 lm/W
Color Accuracy	80 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	6.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

System Transformer

No driver needed. Multi-tap magnetic transformer with 60 Hz only (sold separately). 054A.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -30°C/-34°F

Housing

Precision die-cast aluminum housing

Lens

Solite glass lens

Green Technology

Mercury and UV free. RoHS-compliant components.

Gaskets

High-temperature EPDM foam silicone

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

1 Swivel arm, 1/2" NPS threaded; mounts to sturdy plastic spike (included) for ground mounting

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
