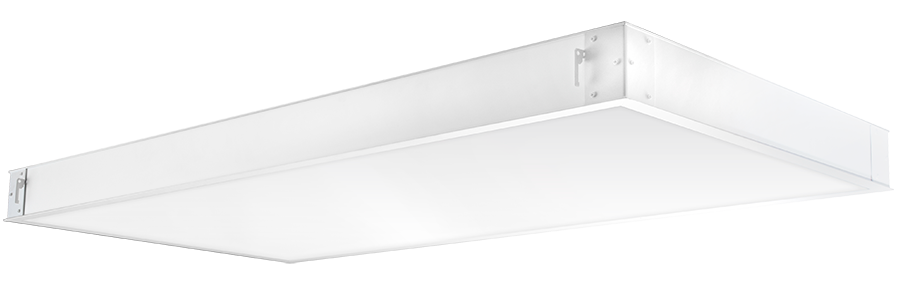

PANEL2X4-59YN/D10/E2
PANEL2X4-59YN/D10/E2
- Up to 60% savings on energy costs
- High-reflectance (91%) powder coat applied post fabrication for a more durable finish
- Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
- Emergency battery backup to provide emergency lighting when power is lost
- 100,000-hour LED Lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 59W |
| Color Temp | |
| Lumens | 7,889 lm |
| Efficacy | 135.1 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.49A |
| 208V | 0.32A |
| 240V | 0.28A |
| 277V | 0.24A |
| Input Watts | 58.4W |
Dimensions
Weight: 34.0 lbs
Technical Specifications
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.6% at 120V, 10.5% at 277V
Power Factor
99.5% at 120V, 90.5% at 277V
Battery Backup
Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V.
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
Construction
IC Rated
Suitable for insulated ceilings
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
