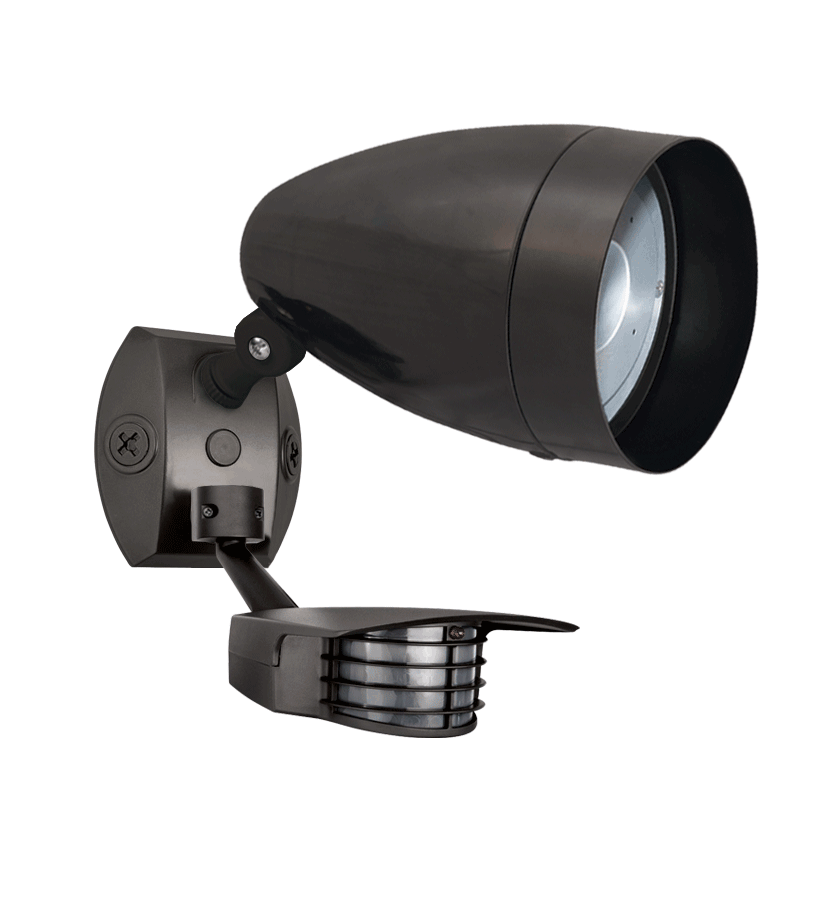

STL2HBLED13Y
STL2HBLED13Y
- Radio frequency immunity
- 6000 volt surge protection
- 1000 Watt switching capacity
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Protected manual override with auto reset
- Can be wired in parallel
Performance
| Watts | 13W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,228 lm |
| Efficacy | 85.3 lm/W |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 14.4W |
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Swivels
Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
Housing
Precision die-cast aluminum housing
Gaskets
High-temperature Silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Other
10-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
LFLOOD thermal Management technology is protected under utility patents pending in the U.S., Canada and China.
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Multi-chip 13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz
THD
11.49% at 120V
Surge Protection
4kV
Sensor Settings
Sensor Time Adjustment
5 seconds to 12 minutes
Sensor Surge Protection
Withstands up to 6000 volts
Sensor Wide Sensitivity Control
Adjustable from 100% to 30%
Sensor Temperature Compensation
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Sensor Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
Photoelectric Control
Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
Sensor Warranty
10-year sensor warranty
