YBLED26/ARM/PCT
YBLED26/ARM/PCT
- Widespread light distribution illuminates large areas
- Vandal-resistant
- High-impact polycarbonate lens
- Rugged die-cast aluminum housing withstands harsh environments
- Integrated dusk to dawn photocell
- 100,000-hour LED lifespan
Performance
| Watts | 26W |
| Color Temp | 5000K (Cool) |
| Lumens | 3,685 lm |
| Efficacy | 122.8 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.16A |
| 240V | 0.14A |
| 277V | 0.12A |
| Input Watts | 30W |

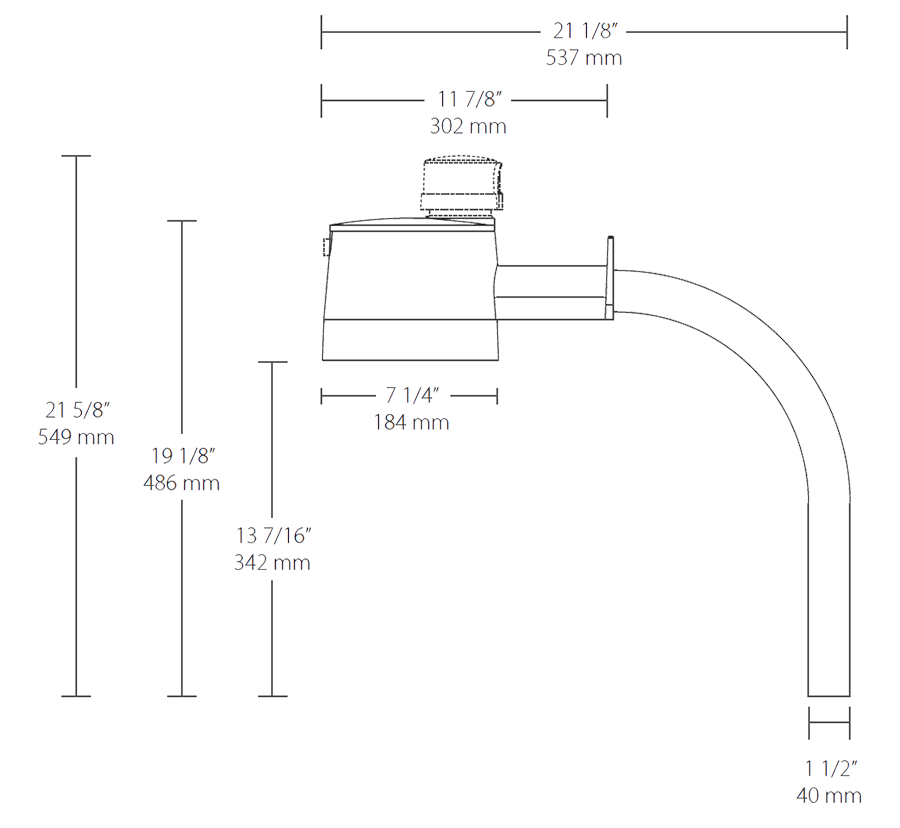

Dimensions
Weight: 12.0 lbs
Technical Specifications
Electrical
Driver
Constant Current, 120V, 50/60 Hz, 700mA, 120V: 0.6A
THD
6.8% at 120V, 12.4% at 277V
Power Factor
99.5% at 120V, 93.6% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection
2 kV
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LED
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 150 HPS
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Housing
Precision die-cast aluminum housing and arm
Effective Projected Area (EPA)
EPA = 0.3
Lens
High-impact, frosted polycarbonate lens
Reflector
High-reflectance white paint
Gaskets
High-temperature silicone
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Mounts on pole
Recommended Mounting Height
15 ft
Other
Patents
The design of YBLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Optical
BUG Rating
B1 U2 G1
