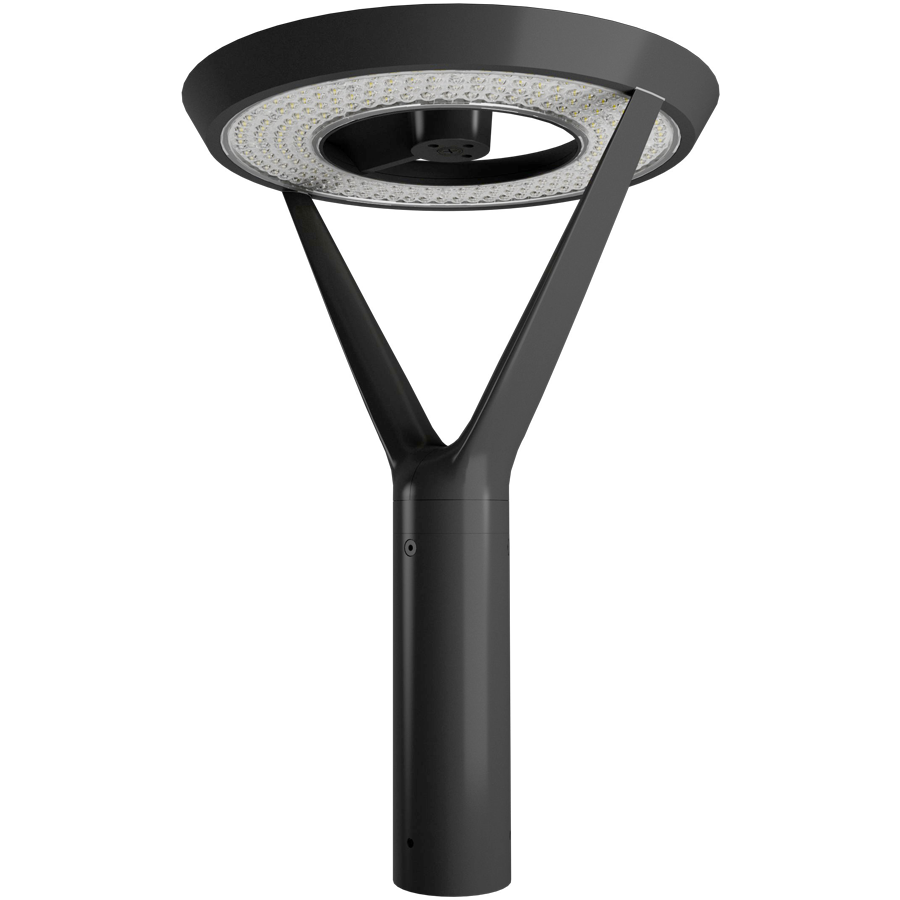

AL5/SA

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

AL5/SA

100,000-hour LED lifespan

3G vibration rating per ANSI C136.31

10 kV Surge Protection

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	120/60/30W
Color Temp	3000K/4000K/5000K
Lumens	4575-17208 lm
Efficacy	136.5-159.4 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.01A/0.49A/0.26A
208V	0.58A/0.32A/0.19A
240V	0.51A/0.27A/0.16A
277V	0.44A/0.24A/0.14A
Input Watts	29.8-121.4W

EZ-Layout

Create Custom Lighting Layout

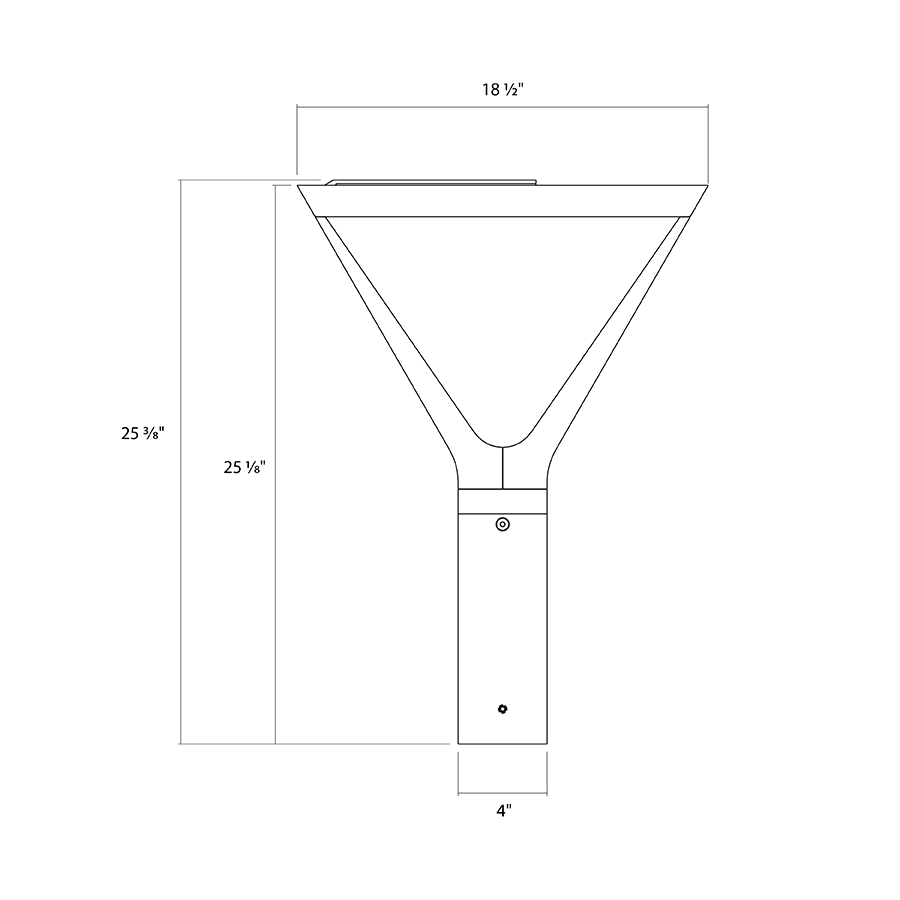

Dimensions

Weight: 22.1 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
1120/60/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

RoHS

Mercury and UV free. RoHS-compliant components.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. See dimmer compatibility guide here.

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

10 kV L-L, 10kV L/N-G

Sensor-Ready Arm

Factory-installed, motion sensor-ready arm is compatible with standard and smart PIR and MVS sensors (purchased separately).

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Effective Projected Area (EPA)

EPA = 0.8

Housing

Die-cast aluminum

Reflector

White Polyethylene Terephthalate (PET)

Lens

Frosted polycarbonate lens

Gaskets

Ethylene Propylene Diene Monomer (EPDM)

Vibration Rating

3G vibration rating per ANSI C136.31

Shape

Round

Finish

Formulated for high durability and long-lasting color

Optical

IES Classification

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

BUG Rating

B3 U0 G1

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
