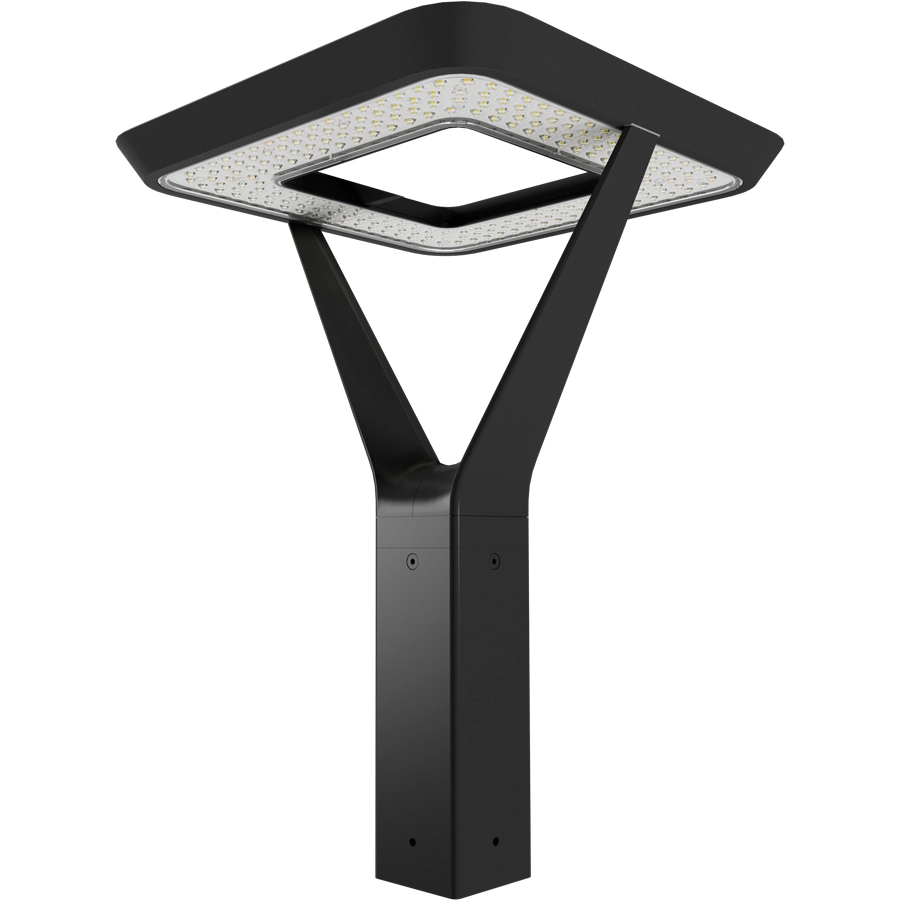

AL5S
- 100,000-hour LED lifespan
- 3G vibration rating per ANSI C136.31
- 10 kV Surge Protection
- 5-Year, No-Compromise Warranty
Performance
| Watts | 120/60/30W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 4673-17328 lm |
| Efficacy | 138.8-161.7 lm/W |
| Color Accuracy | 84-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.00A/0.49A/0.26A |
| 208V | 0.58A/0.32A/0.19A |
| 240V | 0.50A/0.27A/0.16A |
| 277V | 0.43A/0.24A/0.14A |
| Input Watts | 30-120.3W |
Dimensions
Weight: 23.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
1120/60/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
1120/60/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
RoHS
Mercury and UV free. RoHS-compliant components.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. See dimmer compatibility guide here.
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
10 kV L-L, 10kV L/N-G
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Effective Projected Area (EPA)
EPA = 0.8
Housing
Die-cast aluminum
Reflector
White Polyethylene Terephthalate (PET)
Lens
Frosted polycarbonate lens
Gaskets
Ethylene Propylene Diene Monomer (EPDM)
Vibration Rating
3G vibration rating per ANSI C136.31
Shape
Square
Finish
Formulated for high durability and long-lasting color
Optical
IES Classification
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
BUG Rating
B3 U0 G1
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
