• Energy-efficient, maintenance-free LED wrap fixture
  • Multiple mounting options: surface, pendant or chain
  • High-reflectance white finish for optimal output
  • Diffusion wrap-around lens for smooth light distribution
  • 0-10V dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 36W
Color Temp 4000K (Neutral)
Lumens 4,672 lm
Efficacy 130.9 lm/W
Color Accuracy 84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.30A
208V 0.18A
240V 0.15A
277V 0.13A
Input Watts 35.7W
Dimensions
Link to Dimension Drawing

Weight: 17.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PWJ8PHRN
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant current, Class 2, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A, 2kV surge protection
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.29% at 120V, 3.46% at 277V
Power Factor
99.6% at 120V, 95.8% at 277V
Minimum Starting Temperature
0° to 40°C
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.32
Construction
Housing
Die-formed 22 gauge, cold-rolled, post-painted steel. Post painting improves durability of the finish and eliminates the sharp edges making handling and installation safer.
Lens
Acrylic lens with diffusion for enhanced optical performance
Reflector
Aluminum with high-reflectance (91%) powder coat applied post production for a more durable finish
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with chains or v-hooks by others.

Recently Viewed Products

 This is a link to the product FFLEDSW/PCU FFLEDSW/PCU
Floodlights 2615-6243 Lumens Ffled Small Field Adjustable 5000K/4000K 120V-277V Knuckle Mount White 120V-277V Button Photocell
 This is a link to the product ARBAY2-160N/LC ARBAY2-160N/LC
Aerobay 2Ft 160W 4000K 120-277V Dimmable Lightcloud Controller White
 This is a link to the product HALVS10L927-MS-W/LC/E2 HALVS10L927-MS-W/LC/E2
Architectural 234 Lumens Halvs Forward & Up/Down Light 14W 90Cri 2700K Metallic Spun Silver Lens White Finish Lightcloud Controller Battery Backup
 This is a link to the product ARBAY3-215N/8C ARBAY3-215N/8C
Aerobay 3Ft 215W 4000K 120-277V Dimmable 8Ft Cord White
 This is a link to the product DRI-10-EMGR-TYPE B DRI-10-EMGR-TYPE B
Emergency Driver B 50/60Hz 120V-277V For T8 Led Bypass Linear Tubes Double Ended Or Sd

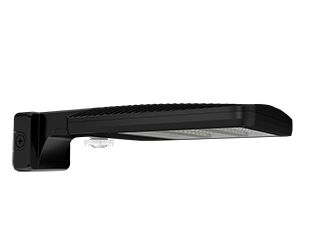

 This is a link to the product ALEDSATWMB/WS2 ALEDSATWMB/WS2
