T8-11-36G-840-EXT
T8-11-36G-840-EXT
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Dedicated External driver must be paired together with RAB tubes
- Can be installed using single ended or double ended wiring method
- Works with non-shunted sockets AND shunted sockets.
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Low Flicker less than 1%
- UL Classified, DLC Listed
Performance
| Watts | 11W |
| Color Temp | |
| Lumens | 1,800 lm |
| Efficacy | 163.6 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | Depend on Type C driver |
| THDi | <25% |

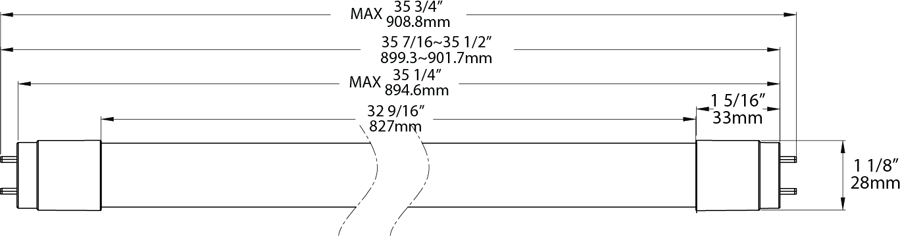

Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
11W
Lumens
1,800lm
Efficacy
163lm/W
L70 Lifespan
50,000 Hours
Construction
Material
Glass
Shape
T8
Nominal Length
3 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
4000K Cool White
Color Accuracy (CRI)
80 CRI
Beam Angle
160°
Installation
Base Type
G13, Medium Bipin
Installation Type
Type C, External Driver
Electrical
THD
<25%
Power Factor
>0.9
Operating Frequency
50/60Hz
Dimming
Yes with 0-10V dimmer. See Dimmer Compatibility List.
Input Voltage
120-277V AC
Flicker
Depends on Type C Driver
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Suitable for damp locations. Suitable for use in enclosed fixtures.
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number
T10102
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PLU5221TIX3A
DLC Product Code: PLU5221TIX3A
