DISK34-8/CL

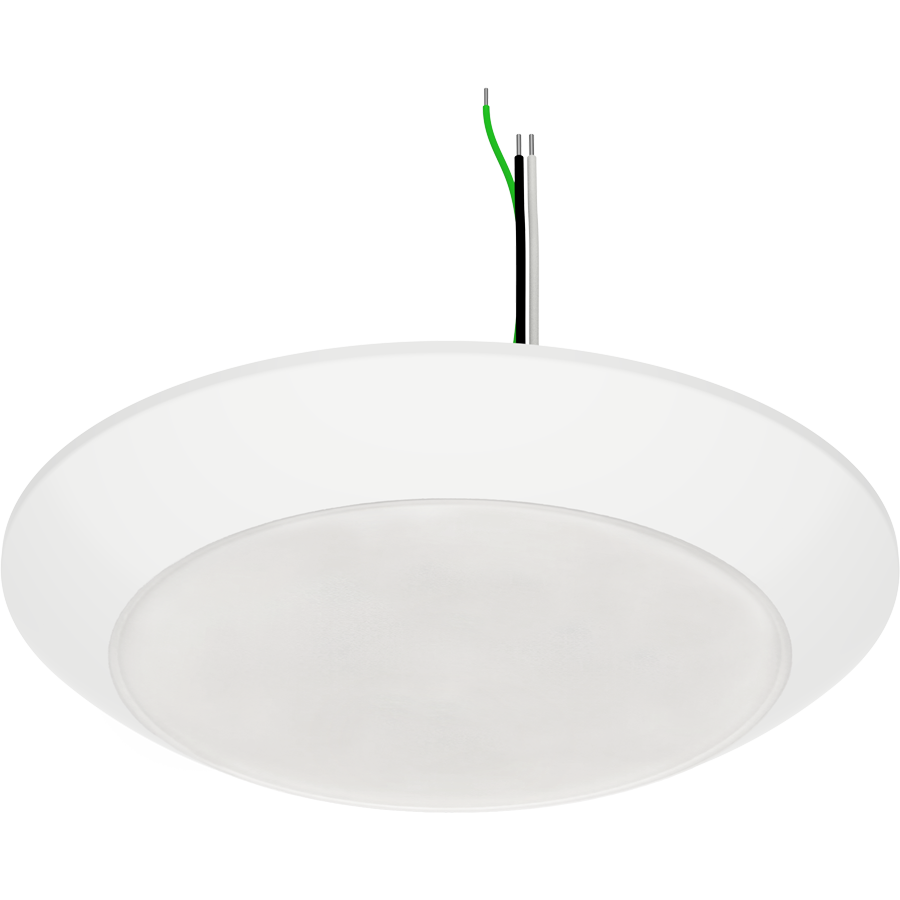

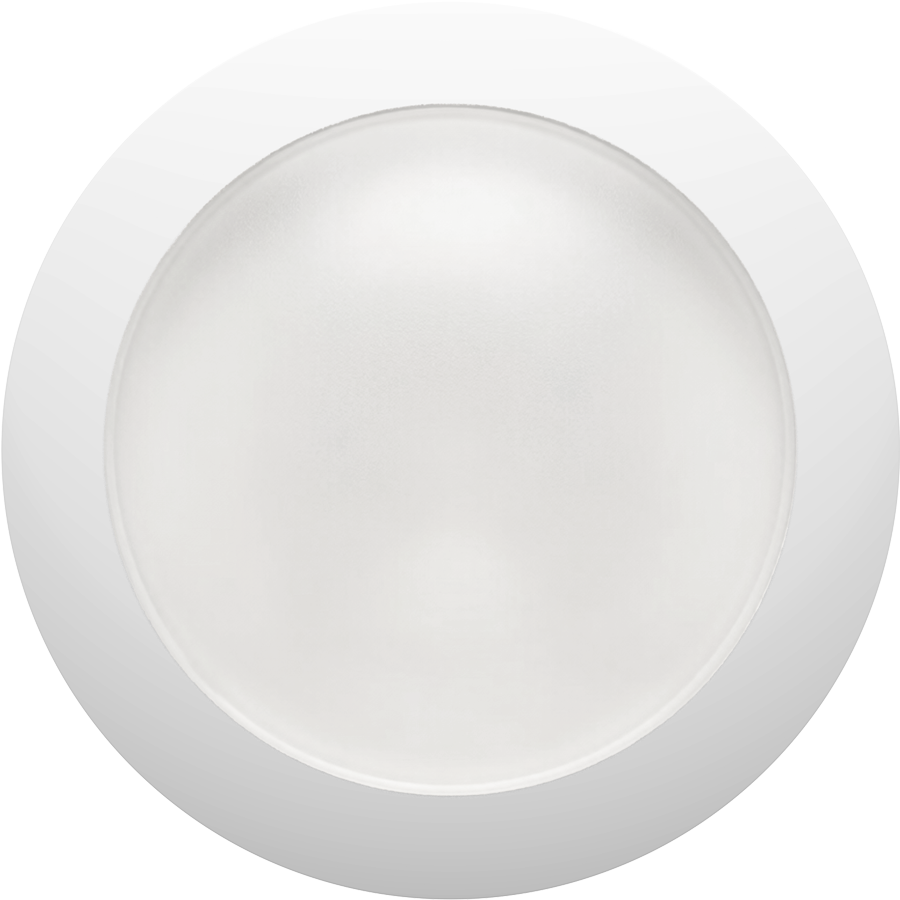

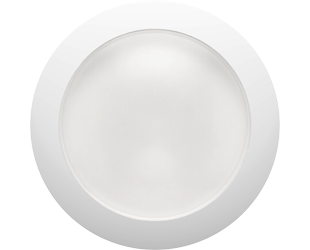

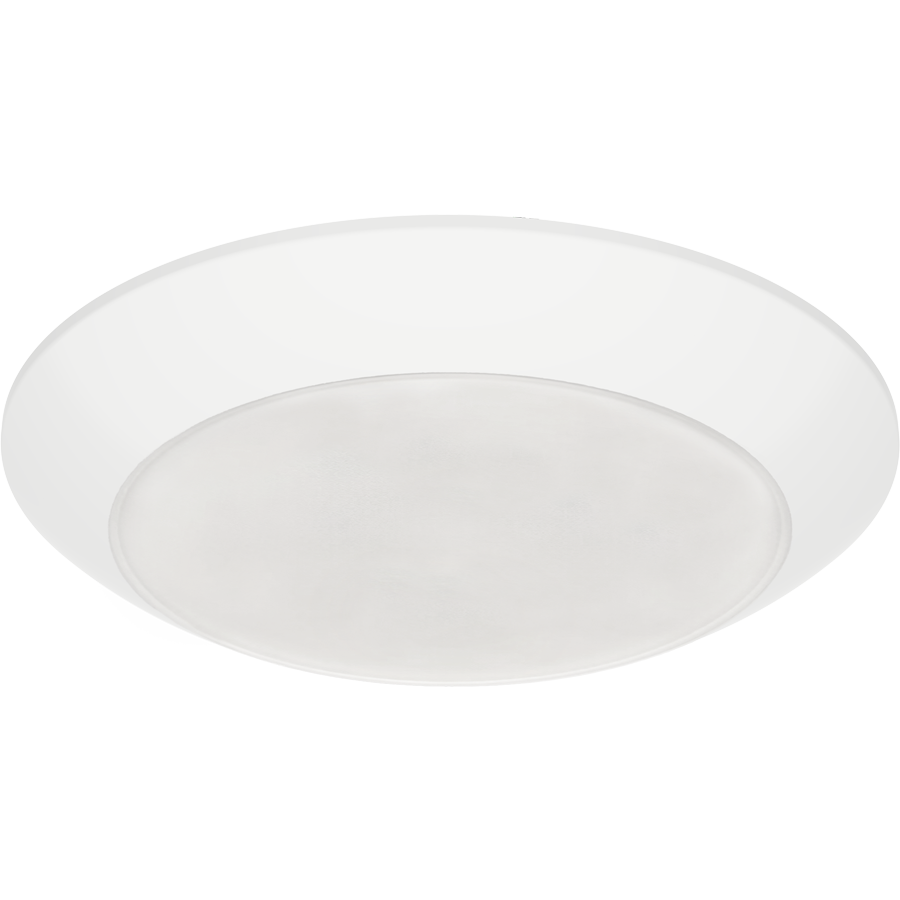

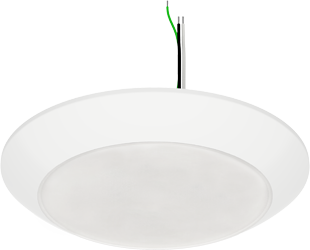

Ultra low-profile, back-lit design made of durable thermoplastic with frosted lens

5 selectable CCTs: 2700/3000/3500/4000/5000K

Installs on standard 3" & 4" junction boxes

Suitable for indoor/outdoor use in dry, damp, and wet locations

Suitable for use in clothes closets

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	2700/3000/3500/4000/5000K
Lumens	750 lm
Efficacy	94
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.07A
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

Closet Rated, Surface Mount DISK34

Description

Ultra-economy, CCT-adjustable, surface mount disk for new construction and retrofit applications — now available in closet-rated models.

Wattage Equivalency

60W Incandescent

Input Wattage

Lumens (Nominal)

750lm

Efficacy

94lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 60 Hz; 120V: 71 mA

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

<30%

Emergency Operation

Not for emergency use.

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Tuning

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

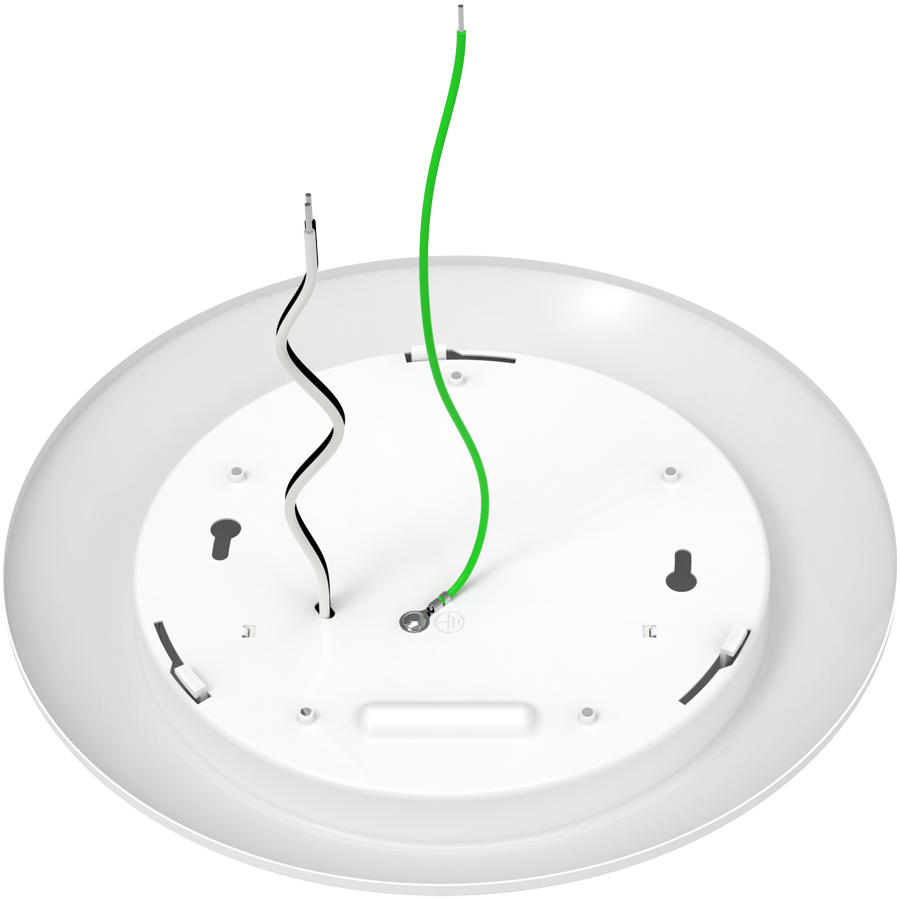

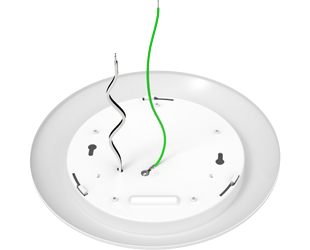

Surface Mount + Recessed Keyhole mounting slots allow for quick installation to junction box. Compatible with 3/0 & 4/0 J-Boxes.

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Stamped metal construction

Trim Style

Smooth

Lens Finish

Frosted

Lens

Twist-lock lens makes it easy to remove and attach during installation with UV resistant polycarbonate diffuser.

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM E283

Energy Star Approved

Certification Model Number

DLS0201(DISK34-8/CL)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

Closet Rated

UL listed for zero-clearance installation in closet storage space

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
